Zycoo CooVox U80 Ghana



Zycoo CooVox U80 Ghana

Zycoo CooVox U80 IP PBX System Ghana is a next-generation feature-rich with 200 extensions IP PBX dedicated to medium and large enterprises. The system packs the new Asterisk 13 soft-switch core on a high-performance hardware platform, you’ll experience a new converged communications experience.

Category:

Description

Zycoo CooVox U80 IP PBX System Ghana

Zycoo CooVox U80 IP PBX System Ghana is a next-generation feature-rich with 200 extensions IP PBX dedicated to medium and large enterprises. The system packs the new Asterisk 13 soft-switch core on a high-performance hardware platform, you’ll experience a new converged communications experience. CooVox-U80 is the ideal solution for converged communications for medium and large enterprises. Up to 200 extension registrations, 60 concurrent calls and 40 concurrent conferences. Not only is the CooVox-U80 fully functional and easy to configure and manage, the system is secure, flexible and easy to use, making it ideal for building your own IP telephony solution. It’s an affordable, scalable, interoperable, secure and reliable choice for you to build your own innovative VoIP solutions.

Zycoo CooVox U80 IP PBX System is a high-end, heavy-duty and yet cost-effective enterprise- grade IPPBX system designed for medium to large enterprises. It is a fully featured office IPPBX system with high system capacity, allowing the CooVox-U80 to fulfill a business’s existing telecommunication needs while also providing future growth with voip options and all of this without additional license fees. CooVox-U100 is ideal for those enterprises which have a demanding IP telephony environment, as it supports up to 200 extensions, 60 simultaneous calls, 60 simultaneous conference attendees, up to 10000 minutes call recording. All features are available to use with no additional license fees.

Key Features

  • PBX Features Up to 200 Extensions
  • Up to 60 Simultaneous Calls
  • Up to 40 Simultaneous Conference Attendees
  • Up to 36 Call Queues
  • Up to 36 Conference Rooms
  • Recording up to 150 hrs (WAV)
  • Recording up to 1500 hrs (GSM)

Interoperable

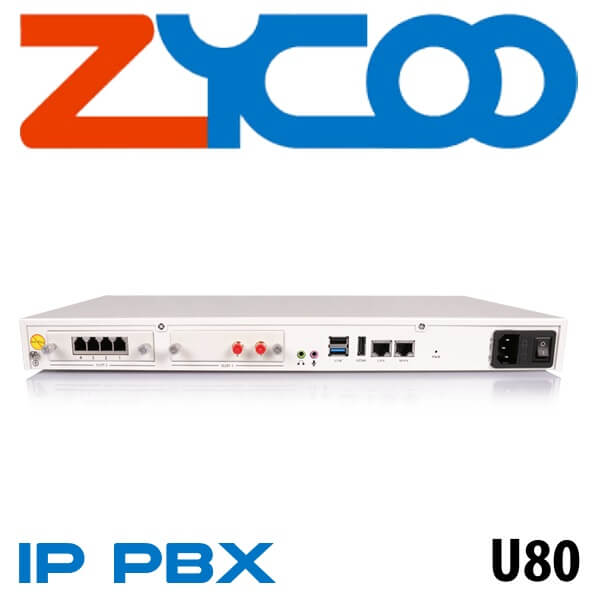

Zycoo CooVox U80 IP PBX System is equipped with 2 network ports, 1 HDMI port, 2 USB ports, 16G storage space, supports 60 channels of concurrent, 200 SIP extensions, and supports 2 FXS/FXO/GSM/WCDMA/BRI/PRI module slots, rack-mounted, suitable for enterprises with less than 200 people, a new multi-functional IP voice communication system.

Powerful & Reliable

Zycoo CooVox U80 IP PBX System is equipped with the new Asterisk 13 soft-switch core on a high-performance hardware platform, you’ll experience a new converged communications experience. The U80 IP PBX is the ideal solution for converged communications for medium and large enterprises.

Expandable

Zycoo CooVox U80 IP PBX System is expandable up to 200 extension registrations, 60 concurrent calls and 40 concurrent conferences.

Ease Use & Management

The Zycoo CooVox U80 IP PBX System is not only fully functional, but also easy to configure and manage. The system is secure, flexible and easy to use. It is ideal for building your own IP telephony solution.

Why CooVox U80

  • The voip system is accessible and manageable vis user-friendly and self-explanatory Graphical Interface.
  • CooVox series support auto provision and quick integration with most of the End points from the leading manufactures like Zycoo, Cisco, Mocet etc.
  • The Webrtc integration pave the access to the ip telephony and voice from the web login and doesn’t require a hardware end point.
  • The Zycoo office IPPBX provide access to in house proxy services for remote connectivity to offices, other PABX, or end points.
  • Zycoo billing is a licensed provision which is one of the add on feature in the IPPBX with a free trial period. There is separate login provisioned for this service and more customization billing depending extension wise, pre and postpaid facility flexible managing provisions.

Specifications

PBX Features

  • Up to 200 Extensions
  • Up to 60 Simultaneous Calls
  • Up to 40 Simultaneous Conference Attendees
  • Up to 36 Call Queues
  • Up to 36 Conference Rooms
  • Recording up to 150 hrs (WAV)
  • Recording up to 1500 hrs (GSM)
  • Automatic Recording/One Touch Recording
  • CDR (Call Detailed Recording)
  • Multi-layer IVR (Interactive Voice Response)
  • TDM/SIP/IAX Extensions/trunks
  • Flexible Inbound/Outbound Routing
  • Time-based Routing
  • Remote Extensions & Remote Offices
  • Paging & Intercom
  • Video Call
  • Call Forward/Transfer
  • Web Extension (WebRTC)
  • Follow Me
  • DND (Do Not Disturb)
  • Ring Groups
  • Pick-up Groups
  • DISA (Direct Inward System Access)
  • Virtual Fax
  • Voicemail to Email/Fax to Email
  • One Number Stations
  • Smart DID

Media

  • Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX
  • Video Codecs: H.261/H.263/H.263+/H.264 Fax: T.38 (passthrough)

Network & Protocols

  • IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, SNMPv2, NTP, SNTP, TFTP, SSH, HTTPS, SRTP, TLS, LDAP, TR069

Security

  • HTTPS, Fail2Ban, Permit IP, Whitelist, Blacklist VPN Server (PPTP, L2TP, OpenVPN, IPSec) VPN Client (N2N, PPTP, L2TP, OpenVPN, IPSec

Hardware

  • Intel Dual-core 2.41GHz CPU
  • 2GB DDR3L RAM
  • 16GB On board EMMC
  • HDMI (High-Definition Multimedia Interface)
  • Audio In/Out (Paging)
  • 2x1000Mbps Ethernet Ports
  • USB 3.0 + USB
  • 0 (Extended Storage)
  • 2xModule Slots

Telephony Signaling & Control

  • SIP (RFC3261)
  • SIP over UDP/TCP/TLS
  • IAX2
  • DTMF: RFC2833, SIP Info, In-band
  • SRTP
  • PRI, SS7, MFC/R2

Power

  • AC 100~240V, 50/60Hz, 1.5A max

Environment

  • Working Temperature: 0 ~ 40°C
  • Storage Temperature: -20 ~ 55°C
  • Humidity: 5 ~ 95% Non-condensing

Datasheet Download
