Zycoo CooVox EX16S FXS Ghana



Zycoo EX16S Ghana

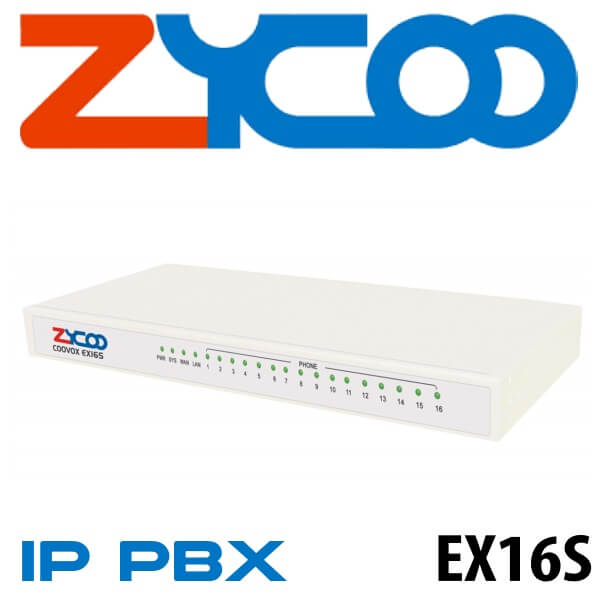

The Zycoo CooVox EX16S FXS Ghana is an FXS port expansion box especially designed dedicatedly working with CooVox V2 series IP PBX. The EX16S helps connect analog phones and fax machines to your CooVox V2 IP PBX through LAN.

Category:

Description

Zycoo CooVox EX16S FXS Ghana

The Zycoo CooVox EX16S FXS Ghana is an FXS port expansion box especially designed dedicatedly working with CooVox V2 series IP PBX. The EX16S helps connect analog phones and fax machines to your CooVox V2 IP PBX through LAN. With each box provides 16 FXS channels for connecting analog phones and fax machines to your CooVox V2 IPPBX system as extensions through your LAN. Each FXS port uses an individual SIP extension number to register to the CooVox V2 IPPBX system just as an IP phone.

The Zycoo CooVox EX16S 16 Port FXS Gateway is ideal for those enterprises which have heavy telephone traffic. With innovative modular design and enhanced hardware platform, it brings you excellent unified communication experience with innovative VoIP function. EX16S Gateway has been designed specifically for plug and play integration with the whole CooVox Version 2 Series IPPBX systems so that attached analogue phones inherit almost all innovative VoIP call features from the CooVox V2 series IPPBX system. Zycoo Ip telephony system offers an easier, more reliable and cost-effective solution for SMEs. With Zero-touch Installation and modular design, it’s simpler and more flexible to install, manage and maintain.

Key Features

Feature rich & Ease-Use Design

 Zycoo CooVox EX16S FXS inherits nearly all innovative VoIP call features from the CooVox V2 series IPPBX system. The CooVox-EX16S is easy to install with just Plug and Play with no configuration needed. EX16S is designed to fully integrate with your CooVox Version 2 system and from version 2.1.6 firmware. Simply auto-scan your network for EX16S Gateways and choose the extensions to use, all from your CooVox GUI

Robust and reliable

Zycoo CooVox EX16S FXS comes equipped with powerful 1GHz dual-core A7 processor and 512MB DDR3 SDRAM to ensure superior performance without disappointing its users. It offers robust and reliable 1GHz A7 processor on board guarantees superior user experience.

Expandable

Each EX16S FXS connects to CooVox V2 system through your LAN, you can expand FXS ports by deploying several EX16S boxes in your LAN till fulfill all analog phones and Fax machines you have. Between 1 and 31 EX16S Gateways can be deployed simultaneously (varies dependent on which CooVox model deployed

Integration

Zycoo CooVox EX16S FXS is designed only to work with COOVOX V2 systems. Attached analogue phones will inherit almost all CooVox extensions properties and certain settings from direct from the CooVox system including tone zone, time zone, feature codes and system voice prompts

Auto-provisioning

Provisioning by Zycoo CooVox EX16S FXS, requires zero-configuration on the box. Feature rich and ease of use: Inherits nearly all innovative VoIP call features from the CooVox V2 series IPPBX system.

Why EX16S

  •  EX16S FXS is friendly to deploy, nearly plug-and-play like PABX system does, very Entry-level IT background required;
  •  EX16S FXS saves time and investment from deploying analog phones and fax machines rather than using 3rd party FXS gateways;
  • The best TCO comparing with using FXS gateway; Inherits almost all meaning that you are well equipped with any FXS on your disposal
  • Equipped with innovative VoIP call features from the CooVox V2 IP PBX

EX16S FXS Specifications

Hardware

1GHz dual-core A7 processor
512MB DDR3 SDRAM
8GB SD card
16 x RJ11 FXS
2 x 10/100Mbps
SIP(RFC3261)
G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX
Desktop and rack-mountable

Power

DC 12V/3.5A

Environment
Working Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 55°C
Humidity: 5 ~ 95% Non-condensing

Packing

Inner box Dimension 220mm × 410mm × 55mm
G.W./unit 2.2 KG
Carton Dimension 540mm × 460mm × 260mm
Units/Carton 6 units/ CTN
G.W./Carton 14.4 KG/CTN

Datasheet Download
