Ubiquiti Switch-Aggregation Ghana



Ubiquiti Switch-Aggregation Ghana

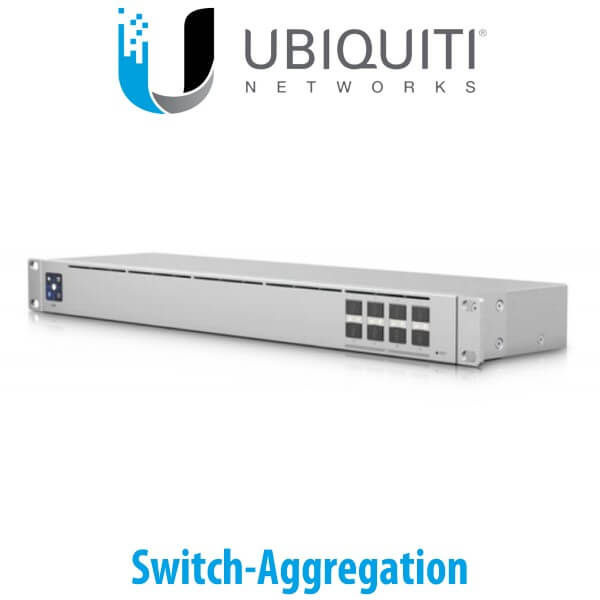

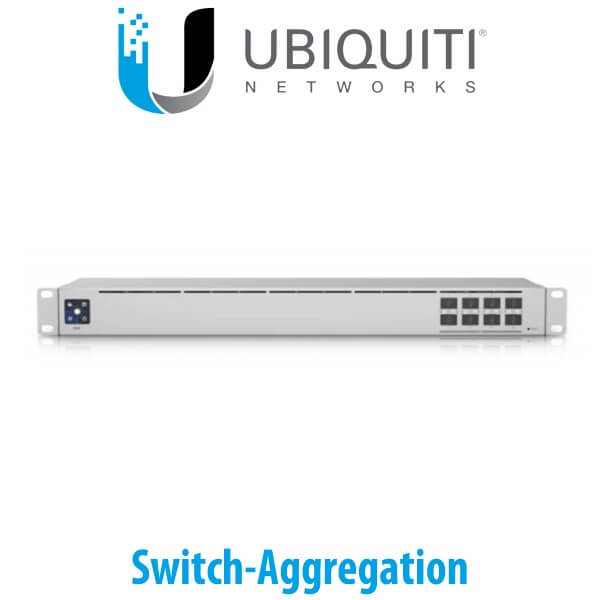

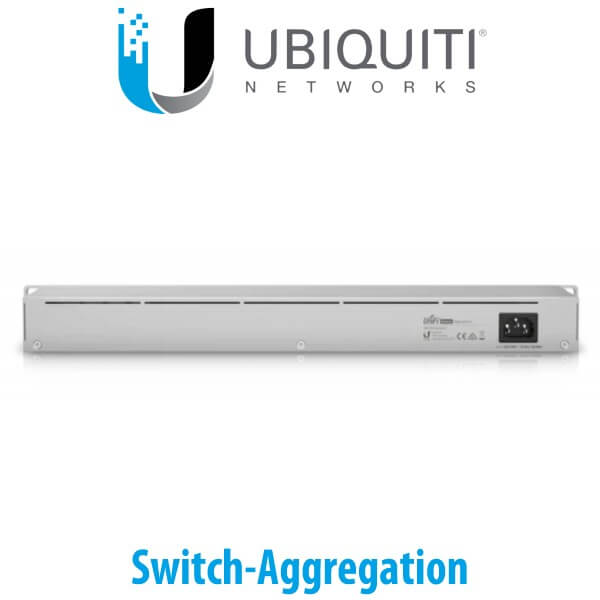

The Ubiquiti Switch-Aggregation Ghana is a managed Layer 2 switch with eight 10G SFP+ ports. This Switch Aggregation is designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links.

Description

Ubiquiti Switch-Aggregation Network Switch Ghana

The Ubiquiti Switch-Aggregation Ghana is a managed Layer 2 switch with eight 10G SFP+ ports. This Switch Aggregation is designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. Featuring a compact 4.7″ depth and fan-less design, Ubiquiti Switch-Aggregation Ghana supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7″ depth, it’s easy to mount this compact, fan-less switch in a SOHO rack cabinet. Ubiquiti Switch-Aggregation Ghana can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app

Features

  • 8 x 10G SFP+ Ports
  • 160 Gb/s Switching Capacity
  • 04 Mpps Forwarding Rate
  • Rack-Mountable Design
  • Supports High-Bandwidth Links
  • 3″ Touchscreen
  • Augmented Reality Switch Management
  • Supports UniFi Network Controller

UniFi Network Controller Benefits:

  • Single interface network management
  • Intuitive and comprehensive device configuration, control, and monitoring
  • Remote firmware upgrading
  • Manage network users and guests
  • Personalize the design, architecture, and privacy of guest hotspots

1.3″ LCM Color Touchscreen

Ubiquiti Switch-Aggregation Ghana packs 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Single interface network management

The Ubiquiti Switch-Aggregation Ghana can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app

UniFi Network Controller

Using the UniFi Network Controller computer interface and mobile app allows you to configure, control, and monitor your network devices from almost anywhere. Features include remote firmware upgrades, setup of users, and configuration of guest portals.

Specifications

Interfaces
Ports 8 x 10Gb SFP+
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Link Aggregation
Performance
Forwarding Rate 119.04 Mpps
Switching Bandwidth
  • 80 Gb/s (Non-Blocking)
  • 160 Gb/s
Electrical
Power Draw 30.00 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Environmental
Operating Temperature 23 to 104°F / -5 to 40°C
Operating Humidity 10 to 90%
General
Cooling System Passive
Material of Construction Steel
Rack Form Factor 1 RU
Dimensions 17.4 x 4.7 x 1.7″ / 442.4 x 120 x 43.7 mm
Weight 5.84 lb / 2.65 kg
Packaging Info
Package Weight 7.43 lb
Box Dimensions (LxWxH) 20.3 x 9.4 x 4.9″



Datasheet Download
