Description

Synology DS118 DiskStation Ghana

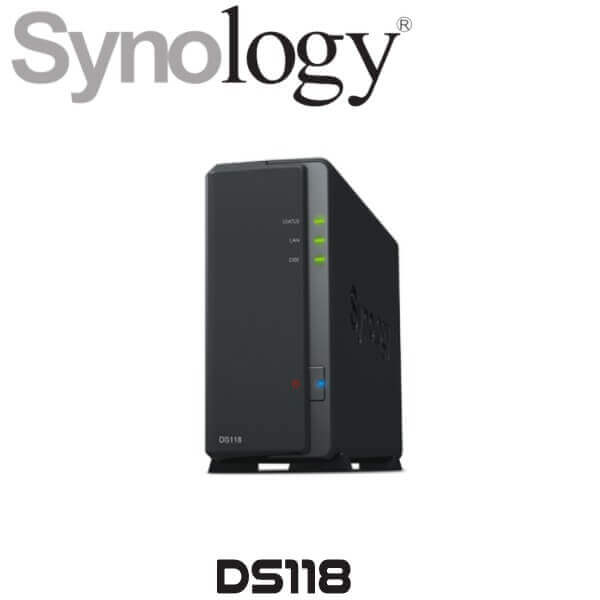

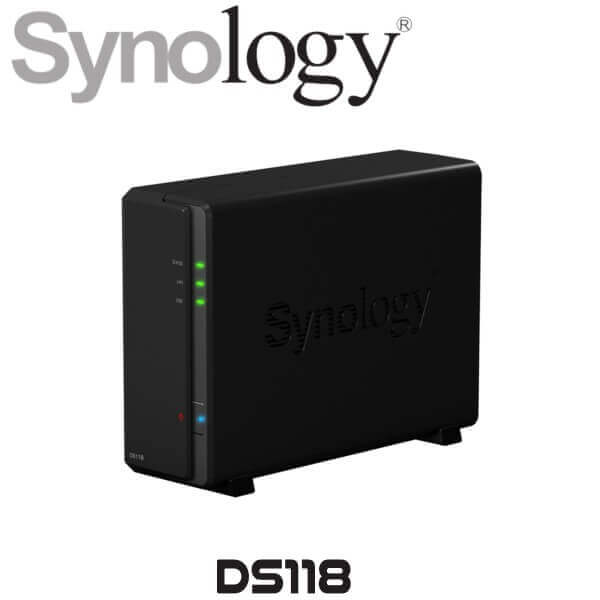

The Synology DS118 is a 1-bay NAS Enclosure which is designed for use by small office users as well as home users. It not only enables users to seamlessly share and synchronize files across multiple devices and public cloud storage services from virtually anywhere, but also boost work productivity. The Synology DS118 is equipped with one drive bay that is capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs with a drive bay adapter. Using its single drive bay, this NAS will allow you to store and share a large number of files, including videos, music, photos, and documents with up to 2048 user accounts.

The Synology DS118 runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 1.4 GHz Realtek RTD1296 Quad-Core and its 1GB of DDR4 RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 113 MB/s and sequential write speeds up to 112 MB/s, while a dedicated hardware transcoding engine can transcode 10-bit 4K H.265 video on-the-fly. Also featured are two USB 3.0 Type-A ports which allows it to be connected to your Windows or Mac system, and network connectivity is achieved via the integrated Gigabit Ethernet port, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. Using the integrated 4K multimedia server on the Synology DS118, Video Station and DS video can be used to convert and play 4K videos from most computers, mobile devices and other media players that don’t support Ultra HD formats.

The Synology DS118 is engineered to be energy efficient. Not only does it offer a 60 x 60mm fan to help keep the system running cool at all times, its noise dampening design of 16.7 dB(A) makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.

The Synology DS118 1-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 36W AC power adapter, and an RJ45 LAN cable. It is protected by a limited 2-year warranty.

DS118 Features

Versatile, Powerful, and Compact Storage Server
- The Synology DS118 comes with a 1.4 GHz Quad-Core 64-bit processor and 1GB of DDR4 RAM, delivering data transfer speeds of up to 113 MB/s, 10-bit 4K H.265 video transcoding on the fly, and eco-friendly power stats of 9.4W during access and 4.22W during hibernation.
Ultimate File Management and Sharing
- File Station is a web-based, fast, and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Windows or Mac. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. It supports SMB, FTP, AFP, NFS, and WebDAV, and is compatible with most environments.
Synchronize Files Across Your Devices
- Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. “Intelliversioning” keeps the most important file versions to better utilize storage space.
User-Friendly File Access with QuickConnect
- Access files on your Synology DS118 over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on most Internet-connected devices with no additional charge.
4K Multimedia Server
- Access and stream your favourite 4K content anywhere, anytime. The DS118 supports 10-bit 4K H.265 online transcoding. With Video Station and DS video, you can convert and play 4K videos from almost any computer, mobile device, or other media players that don’t support Ultra HD formats.

Powered by Synology DSM

Surveillance Station
- Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
- Simplified backup solution for your Windows, Mac, and mobile devices.
Public Cloud Integration
- Back up and synchronize data easily between your public cloud accounts and your NAS.
DSM UI
- Synology DS118’s DSM operating system has an intuitive user interface and powerful capabilities.
Security
- Comprehensive built-in security tools and constantly updated to tackle evolving threats and protect your devices.
Multimedia
- Complete multimedia solution for management, streaming, and playback.

Synology DS118 Specs

Model Number
DS118
CPU
CPU Model: Realtek RTD1296
CPU Architecture: 64-bit
CPU Frequency: Quad Core 1.4 GHz
Hardware Encryption Engine
Yes
Hardware Transcoding Engine
10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
MEMORY
System Memory
1 GB DDR4
STORAGE
Drive Bay(s)
1
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD (with optional 2.5 Disk Holder)
2.5″ SATA SSD (with optional 2.5″ Disk Holder
Maximum, Internal Raw Capacity
12 TB (12 TB drive x 1) (Capacity may vary by RAID types)
Maximum Single Volume Size
108 TB
EXTERNAL PORTS
RJ-45 1GbE LAN Port
1
USB 3.0 Port
2
APPEARANCE
Size (Height x Width x Depth)
166 mm x 71 mm x 224 mm
Weight
0.7 kg / 1.54324 lbs
OTHERS
System Fan
60 mm x 60 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode
Brightness adjustable front LED indicators
yes
Power Recovery
Yes
Noise Level
16.7 dB(A)
Scheduled Power On/Off
Yes
Wake on LAN/WAN
Yes
Power Supply Unit / Adapter
36W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 HZ, Single Phase
Power Consumption
9.4 W (Access)
4.22 W (HDD Hibernation)
British Thermal Unit
32.1 BTU/hr (Access)
14.41 BTU/hr (HDD Hibernation)
