Description

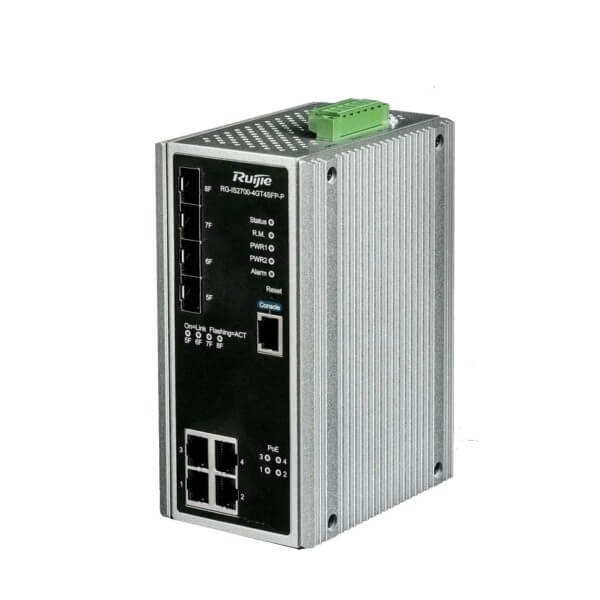

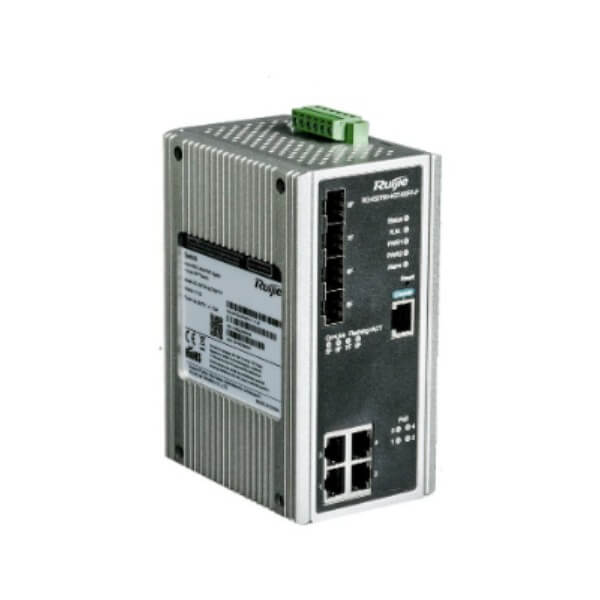

Ruijie RGIS2700-4GT4SFPP Industrial Ethernet Switch Ghana
Ruijie RGIS2700-4GT4SFPP Ghana features an Industrial Ethernet Switch designed to power various industrial applications. The RG-IS2700G Network Switch Series offers abundant routing, switching and security protocols and advanced features including vibration resistance, wide temperature range, dust proof, and lightning arrester to cope with harsh operating environments. Ethernet Ring Protection Switching (ERPS) is another highlight to improve network flexibility, resiliency and security. The Ruijie RGIS2700-4GT4SFPP Ghana provides customers with a robust, highly secure and easy-to-use switching infrastructure.
Features
- Advanced Hardware Architecture
- Abundant Network and Security Features
- Flexible Deployment and Management
Advanced Hardware Architecture
- Advanced hardware design: The Ruijie RGIS2700-4GT4SFPP Ghana Switch Series embodies mainstream industrial chips, high-performance CPU, and industrial-grade power module in a durable aluminum case to meet the demanding requirements across industrial networks.
- Robust design for industrial deployment: Support fanless cooling, -40 to 85ºC operating temperature range, IP40 protection rating, lightning protection≥6KV, power supply with anti-vibration feature, level 4 electromagnetic interference standard, shock and vibration resistance.
Abundant Network and Security Features
- An extensive library of Layer 2 features: Support VLAN, ERPS, QoS, port security, broadcast storm suppression and offer Layer 3 features such as static routing.
- Advanced security protection: Support binding of static and dynamic ports, port isolation, multiple kinds of hardware ACL control, bandwidth speed limit based on data traffic, user access control, etc. The RG-IS2700G Series supports effective protection against virus attacks, network traffic attacks and rogue network access.
- High network stability: Network Foundation Protection Policy (NFPP) implements speed limit based on different packet categories (management, forwarding, protocol packets, etc.) and attack inspection. The Ruijie RGIS2700-4GT4SFPP Ghana fully protects the CPU and bandwidth resources from network attacks, ensuring normal forwarding and protocol operation.
Flexible Deployment and Management
- Best price-to-performance ratio: Support the traditional star network topology and also the Ethernet Ring Protection Switching (ERPS) technology. ERPS enables ring network topology with superior redundancy and reliability. Once a node in the ring network fails, data can be forwarded from the other end. The ERPS is more cost-effective as it minimizes the investment cost on optical fiber.
- Flexible network deployment: Support Gigabit copper and fiber (non-combo) deployment.
- Easy maintenance and management: Support Syslog which enables centralized log collection, maintenance, analysis, troubleshooting and backup
Specifications
| Model | RG-IS2700-4GT4SFP-P |
| Fixed Ports |
|
| Management Port | 1 console port |
| Switching Capacity | 16Gbps |
| Forwarding Rate | 12Mpps |
| MAC Address | 8K |
| VLAN Group | 256 (VLAN ID 1 ~ 4094) |
| VLAN Arrange | Port based VLAN, Q-in-Q (VLAN Stacking), GVRP |
| PoE Power Budget | 120 Watts |
| PoE Standard | 802.3 af/at |
| Operating Temperature | -40 to 75°C |
| Operating Humidity | 5% to 95%RH |
| Protection Rating | IP40 |
| MTBF | >42 years |
| Electromagnetic Interference |
|
| L2 Protocols |
|
| QoS |
|
| Security |
|
| Management | SNMP v1/v2c/v3, HTTP, HTTPS, Telnet, RMON, SNMP, SSH, SNTP client, DHCP Client, DHCP Server, Option 66/67/82 |
| Dimensions (W×H×D) | 74x152x105 mm |
| Installation Mode | DIN rail-mounted |
| Power Supply | 48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at, redundant dual power input |
| System Power Consumption | 14 Watts |
| Heat Dissipation | Fanless design with high-efficiency heat sink |
| Emissions | EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Class A |
