Description

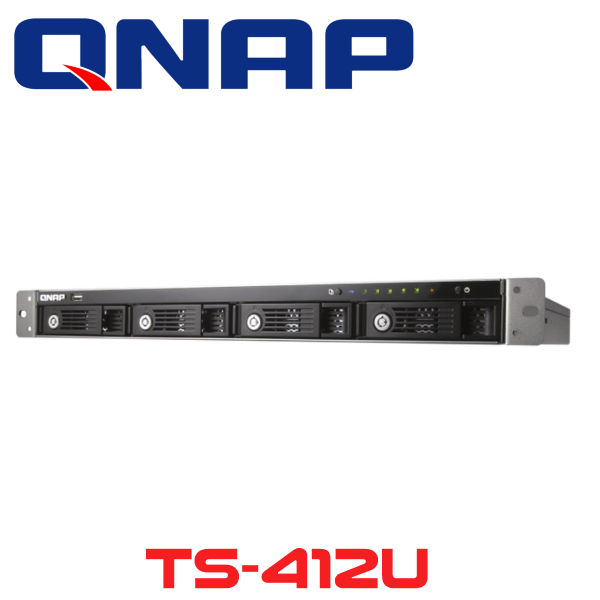

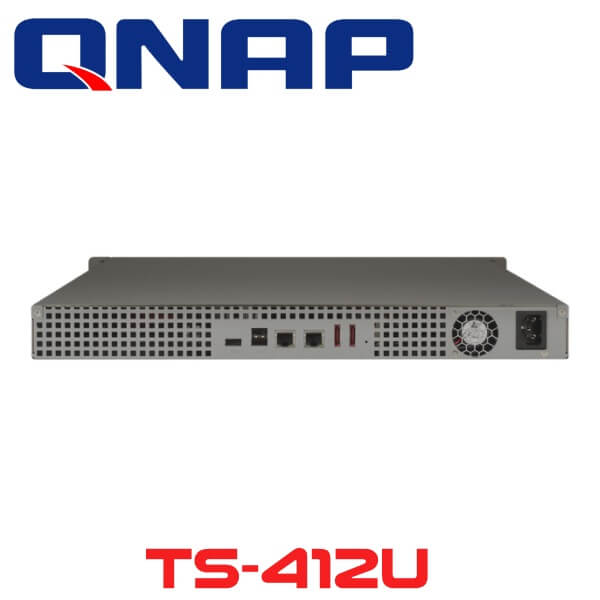

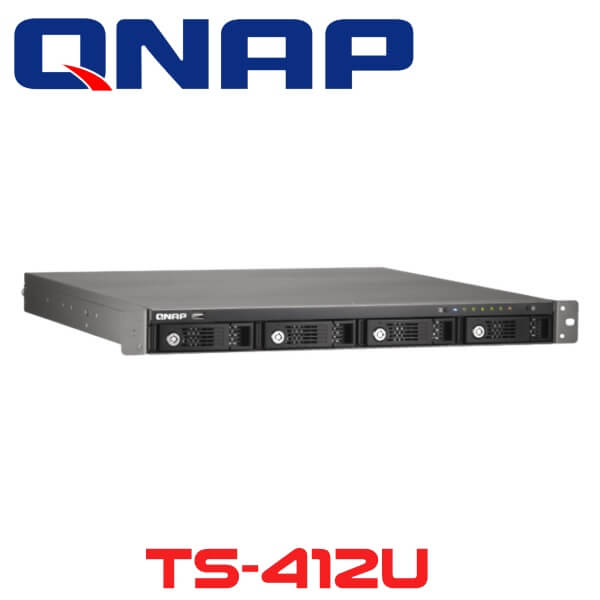

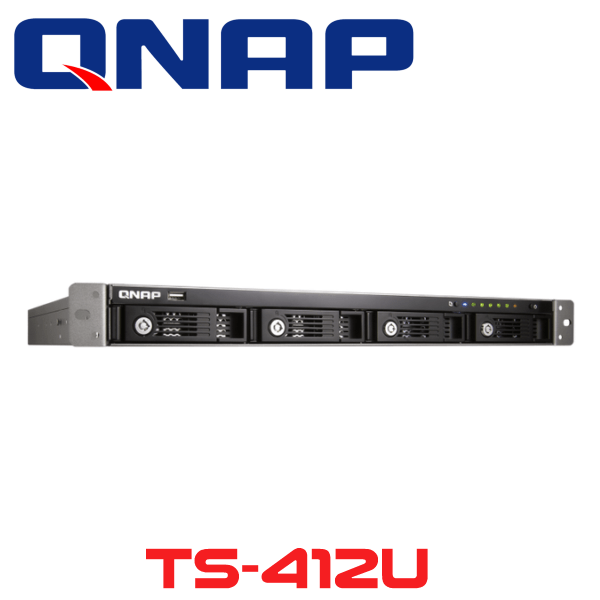

Qnap TS-412U Ghana

The QNAP TS-412U Ghana is a Turbo NAS 4-drive 1U rack-mounted network attached storage (NAS) server optimized for small and medium business who are looking an affordable yet high performance network storage solution. The TS-412U works with 2.5-inch or 3.5-inch SATA hard drives mounted in hot-swappable drive carriers and includes two Gigabit LAN ports for multi-IP settings and port trunking (7 bonding modes). The TS-412U is also is equipped with 4 USB ports and 2 eSATA ports for storage expansion or external data backup storage. The TS-412U is an ideal solution for centralized data backup, cross-platform file sharing, website hosting, and much more. Moreover, the TS-412U offers exceptionally low power consumption, maximum system reliability & expandability, and numerous business-critical applications. The TS-412U incorporates an embedded Marvell 1.2GHz CPU and 256MB DDRII memory, delivering high speed for multitasking. The Qnap TS-412U Ghana incorporates an embedded Marvell 1.2GHz CPU and 256MB DDRII memory, delivering high speed for multitasking.

Key Features

• Central Data Management
  • The Qnap TS-412U Ghana supports large storage capacity, fulfilling demand for storage. It supports comprehensive RAID management, online RAID capacity expansion, and flexible RAID migration, appropriately storing important data and reducing risks of data loss. With the reliable data protection mechanism, the Qnap TS-412U is perfect for a cross-platform data center and shared folder aggregation. The support of Windows AD and LDAP Directory Service saves a great amount of time for account management and authentication. Users can use their Windows AD or LDAP server account and password to log into the Turbo NAS. The Qnap TS-412U can also serve as an LDAP server by installing the OpenLDAP package available in QNAP App Centre.
• Backup Solution
  • Much digital data produced and stored in our computers, cameras, and USB devices, and we all know the importance of data backup to prevent unexpected data loss. Qnap TS-412U performs as an ideal backup destination, with large storage capacity and excellent file transfer speed to greatly assist you on backup tasks. In addition to being a backup destination, the Turbo NAS can also have its data backed up to external storage devices easily and conveniently
• Disaster Recovery Solutions
  • The Qnap TS-412U Ghana supports RTRR (Real-Time Remote Replication), which allows real time or scheduled data backup to a remote Turbo NAS or FTP server reducing time spent on managing data backup. Besides, the Qnap TS-412U also supports backing up data to remote server via rsync protocol. Moreover, the Qnap TS-412U supports Amazon S3, ElephantDrive and Symform. Various backup options, including real-time backup, scheduled backup and incremental backup, are offered for you to easily back up data in the NAS to the cloud storage.
• Wireless LAN
  • Qnap TS-412U Ghana supports USB wireless dongles for flexible and secure deployment in wireless network environment. You can securely connect the NAS to a wireless network with a compatible b/g/n USB Wi-Fi adapter
• Built-in iSCSI/IP SAN Target Service
  • Qnap TS-412U Ghana supports NAS and iSCSI applications to provide a low-cost, highly flexible and efficient IP SAN solution for SMB users. iSCSI targets can be created on the NAS for storage expansion of the PC or other servers and backup destination of the database servers and mail servers, etc. The Qnap TS-412U Ghana can be used to connect to other iSCSI devices on the network and add them as virtual disk drives (VDD) to expand the storage capacity of the NAS.
• Remote Replication by Rsync
  • The data stored on the Qnap TS-412U Ghana can be remotely backed up to another QNAP Turbo NAS or to Rsync servers by Rsync over the network
• Apple Time Machine Backup and Management
  • Mac users can back up data from MacBooks to the NAS via Time Machine. This feature largely saves the storage space of your MacBooks. You can also specify the storage space dedicated to Time Machine backup on the Qnap TS-412U Ghana and manage the backup data easily via the web-based administration interface
• One-Touch-Copy Backup
  • Qnap TS-412U Ghana allow you to configure the one-touch-copy button on the front of the server to copy the data to an external storage device or vice versa. The NAS supports EXT3, EXT4, NTFS, and HFS+ file systems for high speed data transfer and enhanced compatibility between the NAS and Windows or Mac OS X
• Advanced RAID Management with Hot-swap Design
  • Qnap TS-412U Ghana offers RAID 0, 1, 5, 6, 10, 5 + hot spare, single, and JBOD disk configurations. It also supports hot-swap design that a failed member drive of a RAID configuration (RAID 1 or above only) can be replaced by hot swapping without turning off the server.
• Online RAID Capacity Expansion
  • The storage capacity of a RAID disk volume of the NAS can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.
• Virtual Disk Drive (VDD)
  • The Qnap TS-412U Ghana supports flexible storage expansion by stacking other iSCSI targets on the network via its built-in iSCSI initiator. The connected iSCSI targets are turned into “virtual disk drives” of the NAS to provide more storage capacity.
• Built-in iSCSI/IP-SAN Target Service
  • The Qnap TS-412U Ghana is both a NAS and an iSCSI target server, ideal for cost-efficient IP-SAN setup. You can make use of the built-in iSCSI target service to add up to 256 iSCSI devices. Different iSCSI Target LUNs (Logical Unit Number) can be defined as storage expansion or backup destination of the existing application servers, such as database servers and mail servers. Also, the Virtual Space Allocation feature is provided which allows you to flexibly allocate the capacity of iSCSI LUN (Logical Unit Number). When the physical storage capacity of the volume is going to be full, you can easily expand the storage capacity by online RAID capacity expansion or adjust/ remove the current unused volume space.
• Network UPS
  • This feature allows multiple Turbo NAS servers on the same physical network to be protected by a single UPS by receiving UPS notification about an abnormal power supply
• Automatic Power on after Power Recovery
  • You can configure the NAS to turn on automatically after the system resumes operation after a power loss
• Web Server
  • You can host multiple websites on a Turbo NAS with the built-in web server and virtual host feature
• Surveillance Station
  • You can connect to multiple IP cameras via Qnap TS-412U and set up a video surveillance system with comprehensive monitoring, recording, and playback features
• IPv6
  • The Qnap TS-412U Ghana supports IPv6 (Internet Protocol Version 6) which makes your NAS a dual-stack IP host running IPv4 and IPv6 at the same time

Qnap TS-412U Ghana Technical Specification
