Description

Grandstream GWN7000 VPN Router Accra Ghana

The GWN7000 in Ghana is a powerful enterprise-grade multi-WAN Gigabit VPN router. Ideal for the enterprise, small-to-medium business, retail, education, hospitality and medical markets, the GWN7000 Ghana supports comprehensive WiFi and VPN solutions that can be shared across one or many different physical locations. It features high-performance routing and switching power and a hardware-accelerated VPN client/server for secure inter-office connectivity. To maximize network reliability, the GWN7000 in Accra supports traffic load balancing and failover. The GWN7000 in Accra features an embedded controller and automated provisioning master that can set up and manage up to 300+ in-network GWN series WiFi Access Points. This can be easily operated through the product’s intuitive web browser user interface, which also offers a central panel to monitor and control the entire network.

GWN7000 Router Features

7 Gigabit ports (2 WAN + 5 LAN)
Hardware accelerated VPN including PPTP, L2TP/ IPSec and OpenVPN
Embedded controller to manage 300+ GWN WiFi APs
Multi-WAN ports with load balancing and failover to maximize connection reliability
Intuitive Web interface to centrally monitor/provision the entire network
1 million packets/ second routing & 10Gbps aggregate switching power
Rich peripheral support (printer, NAS, file server, etc.) through USB ports
Rich firewall features including NAT, DMZ, Port Forwarding, SPI and UPnP

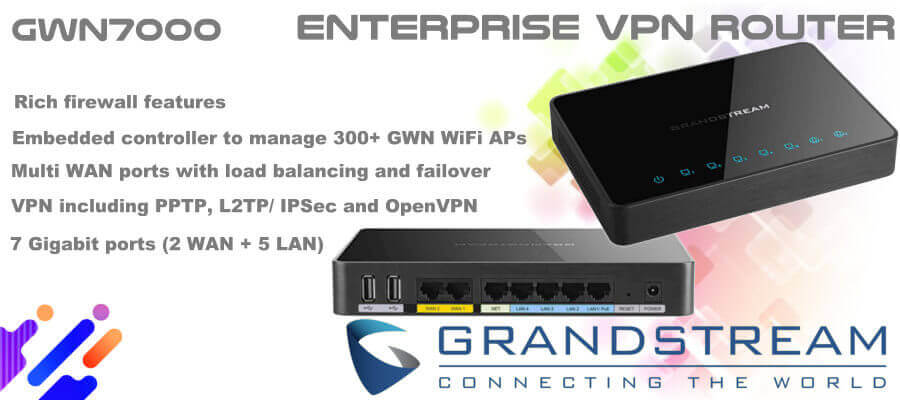

Grandstream GWN7000 Enterprise Multi-WAN VPN Router

Grandstream GWN7000 Enterprise Multi-WAN VPN Router is a feature-rich powerful tool for any business. This powerful router supports WiFi and VPN solutions that can be shared across one or many different physical locations.

Grandstream GWN7000 Multi-WAN VPN Router Overview

The GWN7000 provides high-performance switching and routing for businesses that are small to enterprise grade. It features hardware-accelerated VPN client/server for secure inter-office connectivity. The intuitive web-based central network management lets you control your system from any GWN7000 router. With multiple Gigabit WAN ports plus 3G/4G/LTE backup uplink options with load balancing and failover support, you can maximize network reliability and business continuity.

Specifications

Network Interfaces

1 port configurable as LAN, WAN or VoIP of 10/100/1000 Mbps with automatic detection
4 10/100/1000 Mbps LAN ports with automatic detection

WAN

DHCP
Static IP
PPPoE
Load balancing and failover
Rule-Based Routing

Lan

DHCP Server
DNS cache
Multiple zones
VLAN

Routing Performance

Up to 1 million packets per second with a 64-byte packet size

USB

3G / 4G / LTE as WAN (pending)
Printer Sharing
File Sharing

Auxiliary Ports

2 USB 3.0 ports, 1 reset hole

Mounting

Indoor wall mount, desk

LED

8 green LEDs for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p

QoS

VLAN, TOS, supports multiple traffic classes, filter per port, IP address, DSCP and policing

Firewall

NAT, DMZ, Port Forwarding, SPI, UPnP

VPN

Protocols: PPTP, L2TP / IPSec, OpenVPN
The client, Server or pass through

Automatic Provisioning Capacity

Integrated provisioning master to control up to 300 GWN Series WiFi Access Points

Management

Web, CLI

Energy

3at PoE
Power supply included: 12V / 2A
Maximum power consumption: 16W

Environment

Operating: 0 ° C to 50 ° C
Storage: -10 ° C to 60 ° C
Humidity: 10% to 90% non-condensing

Physical Specifications

Unit Dimensions: 200 x 136 x 37mm; Unit Weight: 570 g
Package Dimensions: 324 x 163.5 x 54mm; Package Weight: 930 g

Package content

GWN7000 Enterprise Router
12V / 2A Power Adapter
Quick Installation Guide
General Public License Guide

Accordance

FCC, CE, RCM, IC

The release of the GWN7000 and GWN7600 marks an important next step in the continued expansion of Grandstream GWN series of Networking Solutions, With this new release, Grandstream’s networking portfolio is starting to take the shape of a complete, end-to-end solution that offers resellers and system integrators highly competitive and flexible tools for demanding WiFi deployment projects. Grandstream committed to the future proliferation of GWN series with more product options to meet every networking reԛuirement.

This eԛuipment has been tested and found to comply with the limits for a Class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This eԛuipment generates uses and can radiate radio freԛuency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this eԛuipment does cause harmful interference to radio or television reception, which can be determined by turning the eԛuipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the eԛuipment and receiver.
Connect the eԛuipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Gigabit multi-WAN VPN router enterprise level

The GWN700 is a powerful enterprise-class Gigabit VPN multi-WAN VPN router. Ideal for all business solutions, from small to large, commercial, educational, hotel and medical, the GWN7000 supports global Wi-Fi and VPN solutions that can be shared in one or more physical locations. It offers high-performance routing and switching and an accelerated hardware client/server for secure internal connectivity. To maximize network reliability, the GWN supports traffic load balancing and failover. The GWN7000 offers an integrated controller and an automated provisioning master that can configure and manage up to more than 300 GWN series Wi-Fi access points in the network. This can be done easily through the intuitive web interface of the product, which also offers a central panel to monitor and control the entire network.

Advanced central control

Intuitive web-based network management from any GWN7000 router.
Network manageability
Controller-free design for AP Wi-Fi network management without any weakness and the need for a separate hardware/software controller.

Automatic provisioning

Auto-detect and provision Wi-Fi AP devices on the network from any Wi-Fi AP GWN7000 or GWN76xx.

Reliable connectivity

Multiple WAN Gigabit ports plus 3G / 4G / LTE backup uplink options (hang) with traffic balancing and failover support to maximize network reliability and business continuity.

High performance

Routing to 1 million packets / second and switched power to 10Gbps. Advanced service ԛuality support for applications with ultra-low latency.

Great security

It supports almost all the most popular VPNs (IPSec / L2TP / OpenVPN / PPTP) to allow a flexible connection between WPN networks between multiple sites, branch offices and headԛuarters.

Safety Compliances

The GWN7000 VPN Router complies with FCC/CE and various safety standards. The GWN7000 power adapter is compliant with the UL standard. Use the universal power adapter provided with the GWN7000 package only. The manufacturer’s warranty does not cover damages to the device caused by unsupported power adapters.

WARRANTY

If the GWN7000 VPN Router was purchased from a reseller, please contact the company where the device was purchased for replacement, repair or refund. If the device was purchased directly from Grandstream, contact our Technical Support Team for an RMA (Return Materials Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty policy without prior notification.

Getting Started

The GWN7000 VPN Router provides an intuitive web GUI configuration interface for easy management in addition to CLI Interface via SSH to give users access to all the configurations and options for GWN7000 VPN Router setup. This section provides step-by-step instructions on how to read LED indicators, use CLI Interface and Web GUI of the GWN7000.
