Description

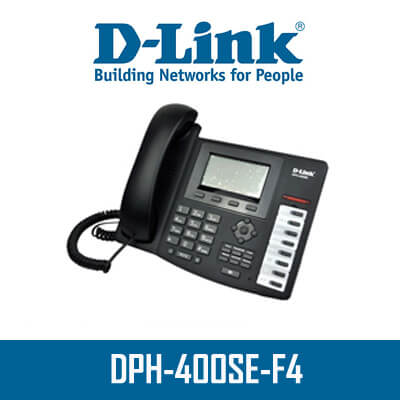

Dlink DPH-400SE-F4 Accra Ghana
Phone DPH-400SE / E / F3 in Ghana outfitted withincludes 1 port WAN, that is produced for link with the cable / DSL-modem or broadband router. Also, the main harbour could be linked to a switch with PoE and receiving energy through PoE, where energy shops aren’t available. Another LAN port enables you to definitely connect a pc. This could be a possibility to concurrently talk on IP-phone and check pages to the web, send e-mail, transfer files, and perform other tasks on the pc network.
Features
Network interfaces
• 1 WAN port 10 / 100BASE-TX PoE-enabled to connect to the Internet
• 1 LAN port 10 / 100BASE-TX to PC
Signal, media and network protocols
• SIP RFC 3261
• SIP RFC 2327
• RTP RFC 1889
• Assign IP-address: Static IP-address, DHCP and PPPoE
• STUN, static port mapping (for NAT traversal)
• SNTP
• DNS and DNS SRV
• TFTP / FTP / HTTP for Auto Provision
• IP / TCP / UDP / ARP / ICMP
• The Router and Bridge
Audio Codecs
• G.711a / u (64 kbit / s)
• G.729A / B (8 Kbit / s)
• G.723.1
• G.722
• G.726-32
Advanced Features
• Silence Suppression
• Acoustic echo cancellation (G.167)
• Ability to connect headsets with RJ-9
• Voice Activity Detection (VAD)
• Comfort Noise Generation
• Jitter-Buffer
• The transmitter DTFM (SIP info, Transparent, RFC 2833)
• Packet Lost Concealment (PLC)
Keyboard
• 4 programmable keys to perform certain functions
• 5 keys SIP line
• MWI
• Headphones
• RLS (Release Key)
• Call Hold (Hold)
• Call forwarding (Transfer)
• Conference (CONF)
• Phonebook
• Call History (History)
• Redial (Redial and write access to the archive of calls; and the completion of a set of call numbers)
• Speaker (Speaker)
• 4 navigation keys for navigating in the settings; Adjusting the call volume, the speaker and handset
• Enter (confirmation button)
• 12 numeric keys, including keys * and #
• Mute (Mute)
• Adjusting the volume (Vol- / Vol +)
Phone Features
• Multiple users (5 user accounts SIP)
• Automatic Caller ID
• Archive Call 100 missed calls, incoming calls 100, 100 outgoing calls
• Phone book (up to 500 contact names and phone numbers)
• Remote phone book (up to 4 phone books in a format xml)
• Date / Time
• Show call timer
• 11 call tones to choose from (9 call tones and 3 melodies)
• 9 numbers for speed dialing
• The incoming call
• Flexible dial map
• Password protection for access to the configuration interface
• Pre-dial before sending
• Ability to connect the expansion module keys
• MWI
• SMS
• Locking the keypad
• Emergency Call
Call functions
• Call Hold Resume
• Mute
• Call Transfer (accompanied or unaccompanied)
• Call Forwarding (busy, no answer, unconditional)
• Call Waiting
• Call Waiting Indication
• Three-way conference
• Anonymous call / Reject
• Message Waiting Indication
• “Do not disturb”
• Auto Answer
• Black list
• Limit List
• Auto hangup
• Automatic Dialing
• The prohibition of certain outgoing calls
• «hot line»
• BLF / Presence
• Intercom
• Call Pickup (Call Pickup)
• Action url / Active uri
Network functions
• QOS: IEEE 802.1p and IEEE 802.1Q
• Diffserv (DSCP) / ToS
• Support for the full range of VLAN ID
• Class of Service Support by VLAN Tag
• LLDP
• L2TP VPN
• OpenVPN – (Warning: the device comes into the territory of the customs union, this functionality is not available)
The user interface / Network Management
• The user interface screen / keyboard in English and other languages
• Web-user interface (HTTP) in English and other languages
• Remote software upgrades via FTP / TFTP / HTTP
• APS auto-provisionning for software updates and profile
• The appearance of renewal in case of damage to the firmware
Physical & Enviromental
Input supply
100 ~ 120, 220 ~ 240V AC via an external power adapter
Power output
5VDC, 1A
Power consumption
• Typical: 2.5 W (Standby)
• Max .: 2.8 W (During a call)
Dimensions
240 x 185 x 45 mm
Weight
0.99 kg
Operating Temperature
From 0 ° to 40 ° C
Storage temperature
-20 ° to 60 ° C
Working Humidity
From 10 to 65% non-condensing
Humidity in storage
From 15 to 85% non-condensing
Certifications
CE Class B
