Description

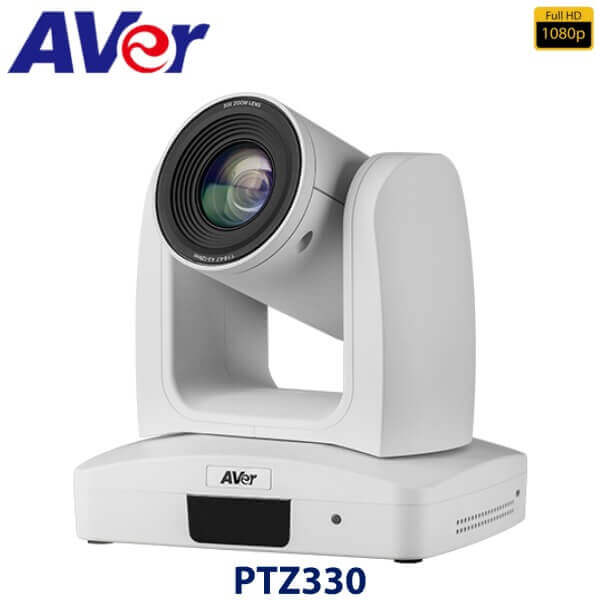

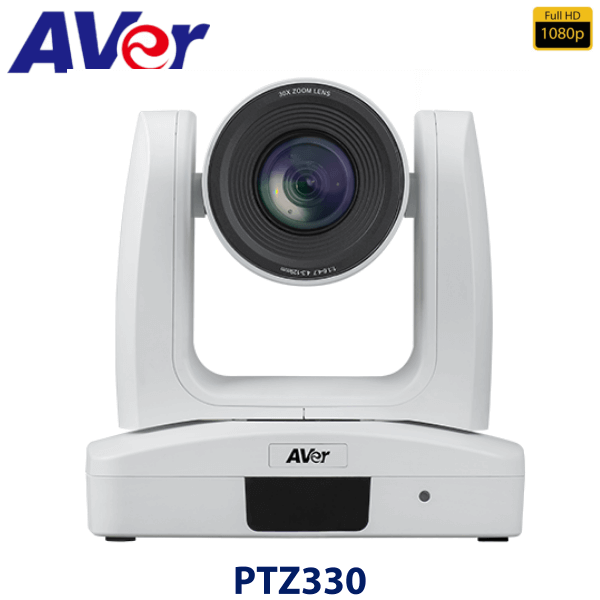

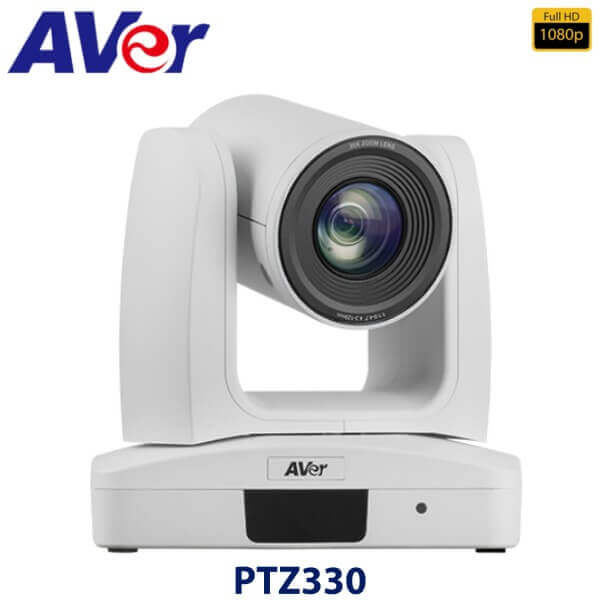

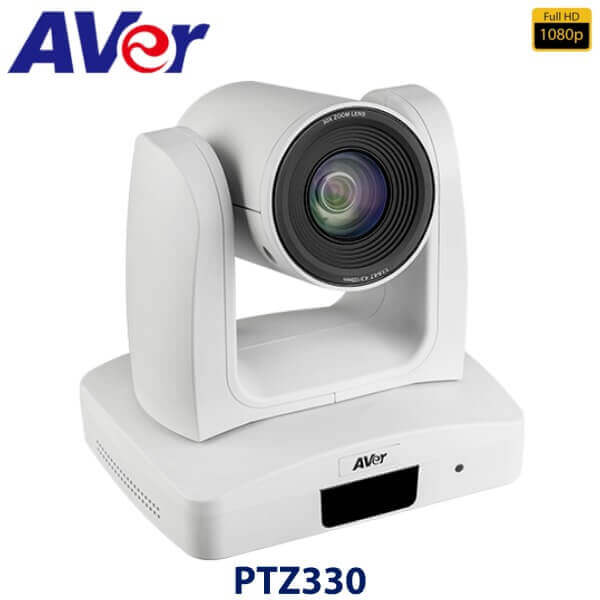

AVer PTZ330 PTZ Conference Camera Accra Ghana

The AVer PTZ330 30X PTZ Camera in Accra Ghana allows users to shoot 1080p images and videos via a 1/2″8 CMOS sensor. AVer PTZ330 features up to 10 angles preset via IR, and a further 255 presets via RS-232. Users are also able to push the 170° pan and -30 to an impressive 90° tilt range and speed. The camera also offers HDMI and 3G-SDI outputs, stereo audio input, RS-422, RS-232, LAN, and USB Micro-B control interfaces. You can also streamline feel and function through the SmartShoot Content Capture, as well as adjust Field of View during filming courtesy of the SmartFrame feature. Featuring an Artificial Intelligent Auto Tracking Pan-Tilt-Zoom Camera, the Aver PTZ330 is a convenient device engineered with inspiration from AVer’s futuristic PTZ Cameras.

Offered in the color choice of grey and white, it brings on board a 30X optical zoom as well as a 12X digital zoom for Flip and Mirror recording. Its amazing versatility makes the Aver PTZ330 an effective workhorse for businesses, medical facilities, and classrooms. Aver onboards Human Detection technology to offer Presenter and Zoom auto-tracking modes. The AVer PTZ330 is your key to unrivaled video and audio capturing, Content Streaming, Recording, and Broadcasting.

AVer PTZ330 Features :

• 4K Resolution
• The camera on the Aver PTZ330 has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second,  resulting in crystal clear images. Its inbuilt sensor offers users next-level video performance for every frame of the production, complete with auto exposure, autofocus, and auto white balance.
• Zooming Performance
• The AVer PTZ330 has a zooming power of up to 30 × optical zooms. Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change your shooting angles. The AVer PTZ330 has been designed to let you enjoy clear video content, even when images are zoomed in to maximum angle, minus motion blurs or pixilation.
• Instant Focus Redirect
• The Aver PTZ330 enables you to redirect focus by simply clicking on a target to quickly adjust the shooting angle and start the tracking process. This has been made even easier as it can be operated through remote control or Web UI.
• Pan, Tilt & Zoom
• The onboard PTZ motorized camera on the AVer PTZ330 adjusts focus, pans, and tilts speedily with no sound, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer PTZ330 camera makes it suitable for use in large rooms and auditoriums.
• Motion Control Stability
• With the freedom to customize speed settings from 0.1°to 200° per second, the AVer PTZ330  gives you maximum precision and agility with controls like panning, tilting and rotation.
• Impressive 255 Preset Locations
• On top of the 10 preset locations that can be achieved via the IR remote control, you can capture a wide variety of angles as well as shift the recording view in an instant, thanks to the 255 preset location onboard the AVer PTZ330. This is made possible through VISCA via RS232 and RS422 functionalities. Furthermore, the AVer SmartShoot technology offers you maximum camera control to enable seamless transitions between the preset areas. This gives you the ability to run multi-camera productions linking into the same PTZ330 thereby saving you time and effort while enjoying unparalleled shooting dynamics.
• Perfect Framing
• Infused with AVer’s SmartFrame technology, the AVer PTZ330 offers the user one-touch face targeting optics to help you capture stunning content within the shortest time possible. SmartFrame automatically adjusts the FOV to include everyone on the screen, giving you quick turnaround time to record conferences, lectures, and presentations with minimum effort. With the AVer  PTZ330, creating amazing video content has been made easy, quick, and enjoyable.
• Easy Tracking
• The camera’s SmartShoot feature enables the user to easily track their target everywhere. The Aver PTZ330 affords the presenter unlimited freedom to move around the room and interact with the audience without fear of being out of focus as the camera continuously tracks subjects, thanks to its SmartShoot’s preset zones. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.

AVer PTZ330 Specifications :

• Camera
  • Image sensor: 1/2.8″ 1080p 60fps Exmor CMOS
  • Effective Picture Elements: Approx. 2.1 megapixels
• Output Resolution
  • Auto :1080p@60, [email protected], 1080p@50, 1080i@60, [email protected], 1080i@50, 1080p@30, [email protected], 1080p@25, 720p@60, [email protected], 720p@50
  • Minimum Illumination: 0.3 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: > 50dB
  • Gain: Auto / Manual
  • TV Line: 800 (Center/Wide), 600 (Corner/Wide)
  • Shutter Speed 1/1s – 1/32,000s
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC
  • White Balance: Auto / Indoor / Outdoor/ One-push/ Manual (2500 – 10000)
  • Optical Zoom: 30X
  • Digital Zoom: 12X
  • Horizontal Viewing Angle: 67° (Wide) – 2.3° (Tele)
  • Focal length: f = 4.3 mm (Wide) – 129 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) – 4.7 (Tele)
  • Minimum Working Distance: 0.01 m (Wide), 1.2 m (Tele)
  • Pan/Tilt Angle: Pan: – 170° ; Tilt: 90° / -30°
  • Pan/Tilt Speed (manual) : Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
  • Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
  • Preset Position:10 (IR), 255 (RS-232)
  • Camera Control – Interface :RS-232 (DIN9) / RS-422 (RJ45)
  • Camera Control – Protocol: VISCA (RS-232/RS-422/IP), CGI (IP)
  • Image Processing: Noise Reduction (2/3D), Flip, Mirror
  • Power Frequency: Auto / 50Hz / 60Hz
• Audio
  • Channel: 2ch (Stereo)
  • Codec: AAC-LC (48/44.1/32/24K), G.711/PCM
  • Sample Rate: 48/44.1/32/24/16/8Khz
• Interface
  • Video Output: 3G-SDI, HDMI, IP, USB
  • Audio Output: 3G-SDI, HDMI, IP, USB
  • Audio Input: MIC / Line in
• General
  • Power Requirement: AC100V-AC240V to DC12V/5A
  • PoE : POE (IEEE 802.3at), Class 4
  • Operating Condition: Temperature: 0°C – 40°C; Humidity: 20% – 80%
  • Storage Condition: Temperature: -20°C – 60°C; Humidity: 20% – 95%
  • Dimensions: L=180 mm, W= 145 mm, H= 183.5 mm
  • Weight: 1.62 kg
  • Application: Indoor
  • Security: Kensington slot
  • Remote Control: Infrared
  • Accessories: Remote control, 12V/5A power adapter
• IP Streaming
  • Resolution: 1920×1080, 1280×720, 960×540, 640×480
  • Network Video Compress Format: H.264 (High Profile), MJPEG
  • Maximum Frame Rate: H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080)
  • Bit-rate Control Mode: VBR / CBR (selectable)
  • Range of Bit-rate setting: 512Kbps – 32Mbps
  • Network Interface: 10/100/1000Base-T
  • Multi-stream Capability: 2
  • Network Protocol: IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP
• USB
  • Connector: Micro-USB 2.0
  • Video Format: YUV, MJPEG, H.264
  • Maximum Video Resolution: Up to 1080p
  • USB Video Class: UVC1.1
  • USB Audio Class: UAC1.0
• Web UI
  • Live Video Preview: Yes
  • Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
  • Camera / Image Adjustment: Exposure / White Balance / Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
• Software Tools
  • Device IP Searching, Configuration Tool: Windows Application

What’s in the Box :

• The AVer PTZ330 camera
• Remote control
• Batteries
• 12V/5A Power adapter
• Smart User Manual
