Description

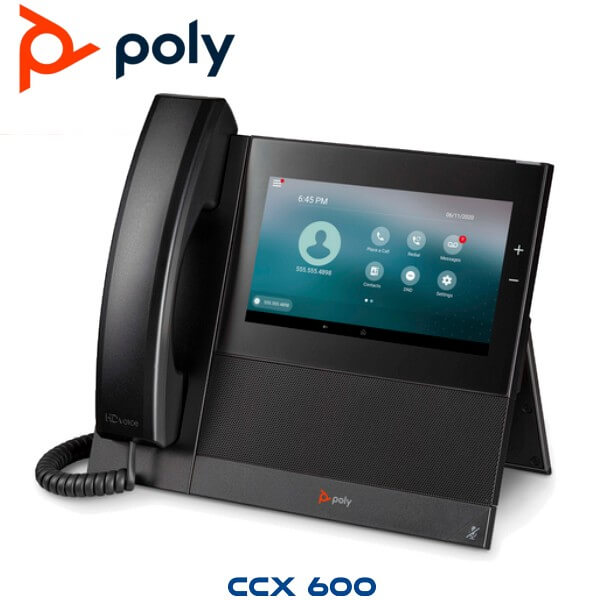

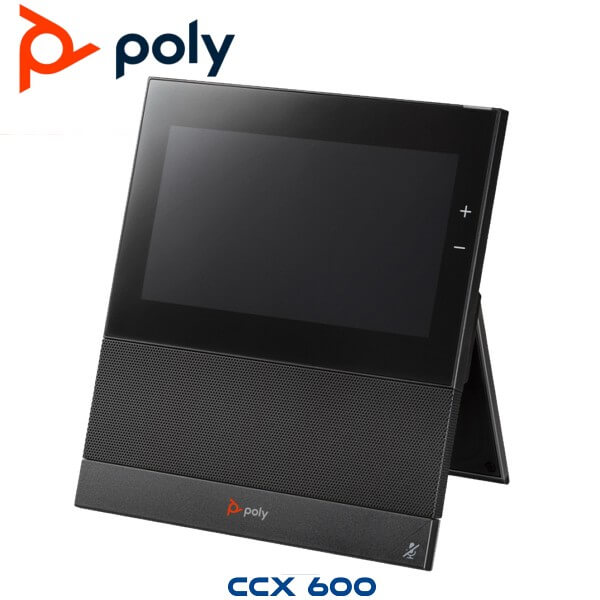

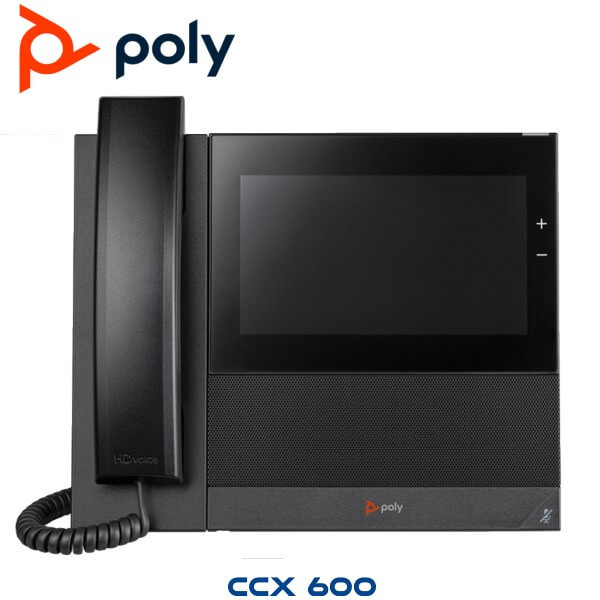

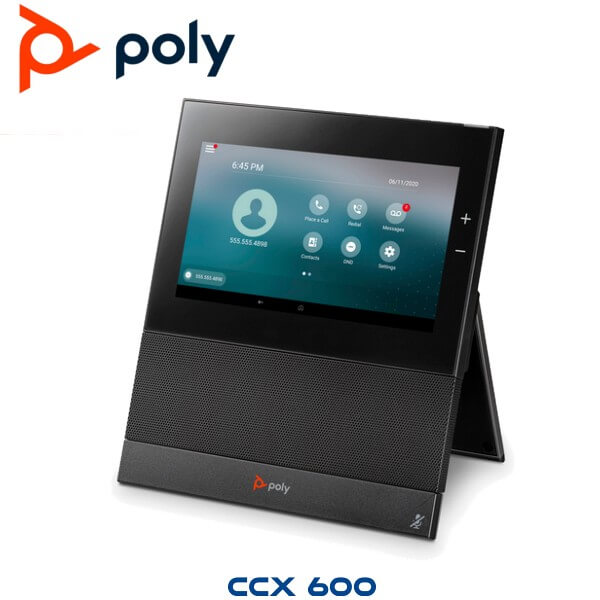

Poly CCX 600 SIP Phone Accra, Ghana

The Poly CCX 600 Business Media Phone Ghana is made to deliver a smooth Microsoft Teams communication experience. It is fitted with a generously large 7-inch colour touch screen which not only offers a quick access to details as well as an enhanced visual clarity when used in poorly – lit room conditions. The Poly CCX 600 is designed to meet the communication needs of executives, managers and any other random user. For outstanding audio clarity, the Poly CCX 600 is integrated with HD Voice, and award-winning Poly Acoustic Clarity which filters out background noise so you can enjoy crystal clear conversations. Its built-in full -duplex speakerphone enhances audio clarity using embedded echo cancellation.

Poly CCX 600 Ghana comes with an easy user interface which requires no technical expertise of its user. It is a fast and responsive phone which is designed with the latest powerful chipsets for a maximum experience. An integrated Microsoft Teams button enables you to quickly launch Microsoft Teams application and enjoy a collaborative communication experience. The Poly CCX 600 is equipped with a suite of advanced telephony features which enhance your communication and also boost your productivity. Robust provisioning and management enable efficient telephony deployment and support. And it’s easy to install anywhere—Wi-Fi is included.

Key Features

Model choices supporting Open SIP or native Microsoft Teams

Poly CCX 600 Ghana is available in many different models including :

- 2200-49770-025 CCX 600 Business MediaPhone without a handset. Open SIP. PoE. Ships without power supply.
- 2200-49780-025 CCX 600 Business MediaPhone. Open SIP. PoE. Ships without power supply
- 2200-49780-019 CCX 600 Business MediaPhone. Microsoft Teams/SFB. PoE. Ships without power supply.
- 2200-49770-019 CCX 600 Business MediaPhone without a handset. Microsoft Teams/SFB. PoE. Ships without power supply.
Colour touchscreen operation with 7” multi-touch LCD display
- Poly CCX 600 Ghana is equipped with a 7-inch multi-touch LCD display which offers a quick access to details at a glance.
Hear every nuance with Poly HD Voice and Poly Acoustic Clarity
- Poly CCX 600 is fitted with advanced audio technologies including Poly Acoustic Clarity and Poly HD Voice which ensure that you can hear and be heard clearly, even in noisy environments. Poly Acoustic Clarity filters out background noise so you can enjoy crystal clear conversations. Its built-in full -duplex speakerphone enhances audio clarity using embedded echo cancellation.
Rich Telephony Features
- Poly CCX 600 is equipped with powerful chipsets to support next-generation features which not only enhance your general communication experience, but also boost your productivity. Contacts and meetings are easily accessible, one tap away on a colour touchscreen. The phone is easy for IT experts to manage with robust provisioning and management of telephony deployment and support.
Wireless Connectivity
- The Poly CCX 600 is integrated with Wi-Fi, enabling you to make smooth and fast calls over the internet. Built-in Bluetooth feature enables you to pair the handset with other compatible devices including headsets for maximum mobility and efficiency.
Headset Interface
- The Poly CCX 600 comes with an RJ9 port which enables you to connect it with compatible headsets so that you can enjoy maximum freedom and mobility within the office.

Poly CCX 600 Business Media Phone Models:

2200-49770-025 CCX 600 Business MediaPhone without a handset. Open SIP. PoE. Ships without power supply.
2200-49780-025 CCX 600 Business MediaPhone. Open SIP. PoE. Ships without power supply
2200-49780-019 CCX 600 Business MediaPhone. Microsoft Teams/SFB. PoE. Ships without power supply.
2200-49770-019 CCX 600 Business MediaPhone without a handset. Microsoft Teams/SFB. PoE. Ships without power supply.

Poly CCX 600 Business Media Phone Specifications:

USER INTERFACE FEATURES
- Gesture-based, multitouch-capable touchscreen
- 7” color LCD (1024 x 600 pixel)
- 16:9 aspect ratio Screensaver
- On-screen virtual keyboard
- Voicemail support
- Adjustable base height
- One USB type-A port (2.0 compliant) for media and storage applications
- One USB Type-C port (2.0 compliant) for media and storage applications
- Integrated Bluetooth 4.2
- Integrated Wi-Fi
- Unicode UTF-8 character support
- Adjustable font size selection (regular, medium, large)
- Normal and dark mode
- A multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
AUDIO FEATURES
- Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
- Poly Acoustic Clarity technology providing full duplex conversations, acoustic echo cancellation, and background noise suppression
- TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
- Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
- Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
- Individual volume settings with visual feedback for each audio path
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC 2833 and in-band)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- OPUS support
HEADSET AND HANDSET COMPATIBILITY
- Dedicated RJ-9 headset port
- Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
- Compliant with ADA Section 508
- subpart B 1194.23 (all)
- Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
- Compatible with commercially-available TTY adapter equipment
- USB headset support
- Bluetooth headset support
NETWORK AND PROVISIONING
- SIP protocol support
- SDP
- IETF SIP (RFC 3261 and companion RFCs)
- Two-port gigabit Ethernet switch 10/100/1000 Base-TX across LAN and PC ports
- Wi-Fi network connectivity–2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)-5.15-5.825 GHz (802.11a, 802.11n, HT-20, 02.11n HT-40)
- Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
- Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
- Manual or dynamic host configuration protocol (DHCP) network setup
- Time and date synchronization using SNTP
- FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
- Provisioning and call server redundancy supported1
- QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
- VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery – Network address translation support for static configuration and “keep-alive”
- SIP signaling
- RTCP and RTP support
- Event logging
- Syslog
- Hardware diagnostics
- Status and statistics reporting
- IPv4 and IPv6
- TCP
- UDP
- DNS-SRV
SECURITY
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Encrypted configuration files
- Digest authentication
- Password login
- Support for URL syntax with a password for the boot server address
- HTTPS secure provisioning
- Support for signed software executables
- Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)
