Poly CCX 400 Microsoft Teams Phone Accra, Ghana

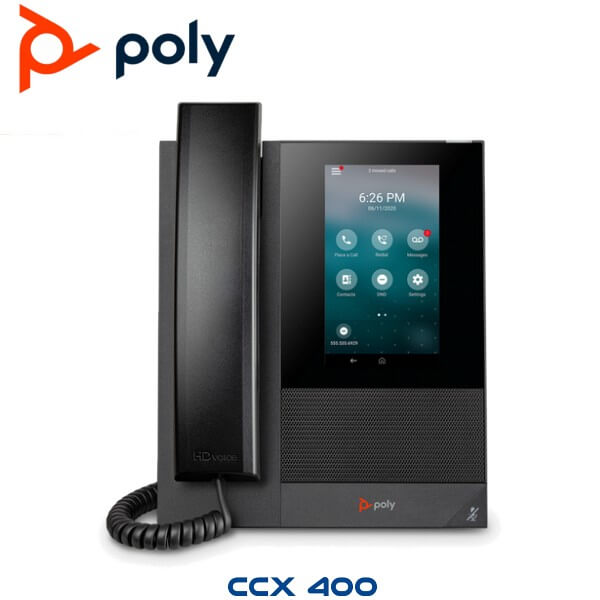

Entry-level users can now enjoy maximum communication experience, thanks to the new CCX 400 Microsoft Teams Phone from Poly. Poly CCX 400 is basically a touchscreen desktop phone which is equipped with a 5-inch display that not only offers a quick access to details at a glance, but also an enhanced visual clarity when being used in poorly-lit room conditions. The phone features a native Microsoft Teams interoperability. It supports Power over Ethernet, making it ideal for extended network use.

The Poly CCX 400 Series is designed to increase workplace productivity because it is designed with users in mind catering to the way you work. The Poly CCX 400 Series is simple to use with intuitive interfaces that help employees and executives get to work immediately and hassle-free. The CCX models come in various styles with options to either keep the handset in the desk phone or eliminate the handset for scenarios where you know you will only be using a headset with your Teams device.

The Poly CCX 400 is easy to provision and manage from the Microsoft Teams Device Portal. It’s simple to install on desktops and lobby tables and can also be mounted on a wall with an optional wall mounting bracket. If there’s no ethernet drop nearby, you’re covered. The optional Wi-Fi accessory (coming soon) lets you deploy the CCX 400 anywhere with access to an electrical outlet. (Power adapter sold separately.)

Key Features

• Colour touch-screen operation with 5″ multi-touch LCD display
• Use as a common area phone (CAP) or with native Microsoft Teams experience
• Hear every nuance with Poly HD Voice and Poly Acoustic Clarity
• Eliminate distracting background noise with Poly Acoustic Fence (coming soon)
• Full-duplex speakerphone operation with world-class echo cancellation
• Wall mountable with optional CCX400 wall mount Kit

Superb Audio Quality
- Poly CCX 400 is equipped with Poly HD Voice and Poly Acoustic Clarity, award-winning technologies which filter out background noises, enabling you to focus on your conversation and not miss out on any detail. Its built-in full-duplex speakerphone further enhances audio clarity.
Native Microsoft Teams Experience
- Poly CCX 400 comes ready with a pre-installed Microsoft Teams feature which enables you to easily connect and collaborate with colleagues. It is a cost-effective solution which guarantees you maximum communication experience at an affordable cost. It can also be used as a common area phone(CAP).
Wall Mountable Device
- Poly CCX 400 Ghana is a wall mountable device that is designed to offer the easiest possible deployment with no learning curve. Simply mount it on a wall to achieve a generally neat and tidy room and workspace.

Poly CCX 400 IP Phone Models:

2200-49700-025 CCX 400 Business MediaPhone. Open SIP. PoE. Ships without power supply
2200-49700-019 CCX 400 Business MediaPhone. Microsoft Teams/SFB. PoE. Ships without power supply

Poly CCX 400 IP Phone Specifications

USER INTERFACE FEATURES
- Gesture-based, multitouch-capable capacitive touch screen
- 5-inch color LCD (720 x 1280 pixel)
- 9:16 aspect ratio
- Screen saver
- On-screen virtual keyboard
- Voicemail support
- Adjustable base height
- One USB type-A port (2.0 compliant) for media and storage applications
- Unicode UTF-8 character support
- Adjustable font size selection (regular, medium, large)
- Normal and dark mode
- Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
AUDIO FEATURES
- Poly HD Voice technology delivers lifelike voice quality for each audio path; handset, hands-free speakerphone, and optional headset
- Poly Acoustic Clarity technology providing full-duplex conversations, acoustic echo cancellation and background noise suppression
- TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
- Frequency response—150 Hz—7 kHz for the handset, optional headset and handsfree speakerphone modes
- Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
- Individual volume settings with visual feedback for each audio path
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC 2833 and in-band)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- OPUS support
HEADSET AND HANDSET COMPATIBILITY
- Dedicated RJ-9 headset port
- Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
- Compliant with ADA Section 508 Subpart B
- 1194.23 (all)
- Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
- Compatible with commercially-available TTY adapter equipment
- USB headset support
NETWORK AND PROVISIONING
- SIP protocol support
- SDP
- IETF SIP (RFC 3261 and companion RFCs)
- Two-port gigabit Ethernet switch
- 10/100/1000Base-TX across LAN and
- PC ports
- Conforms to IEEE802.3-2005 (Clause 40) for Physical media attachment
- Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
- Manual or dynamic host configuration protocol (DHCP) network setup
- Time and date synchronization using SNTP
- FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
- Provisioning and call server redundancy supported1
- QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
- VLAN—CDP, DHCP VLAN discovery, LLDP-MED for VLAN discovery
- – Network address translation
- support for static configuration and “keep-alive”
- SIP signaling
- RTCP and RTP support
- Event logging
- Syslog
- Hardware diagnostics
- Status and statistics reporting
- IPv4 and IPv6
- TCP
- UDP
- DNS-SRV
- SECURITY
- 802.1X authentication and EAPOL
- Media encryption via SRT
- Transport layer security (TLS)
- Encrypted configuration files
- Digest authentication Password login
- Support for URL syntax with a password for the boot server address
- HTTPS secure provisioning
- Support for signed software executables
POWER
- Built-in auto-sensing IEEE 802.3af Power over Ethernet (Class 3) 13 W (Max)
- External Universal AC/DC Adapter (optional) 5 VDC @ 3 A (15 W) ENERGY STAR® rated
