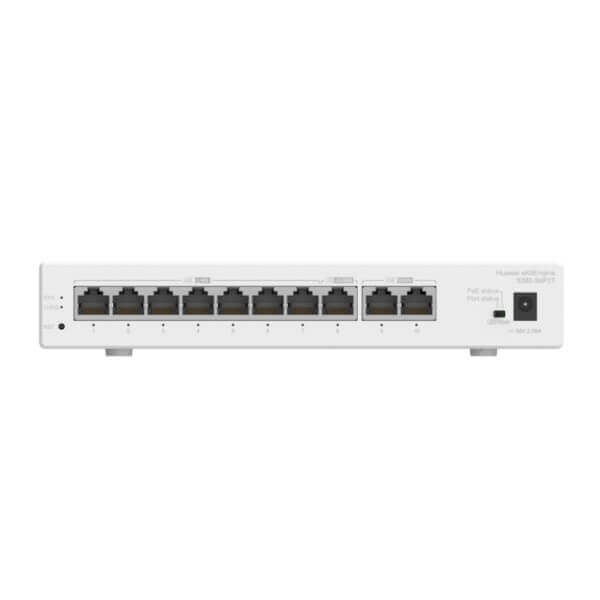

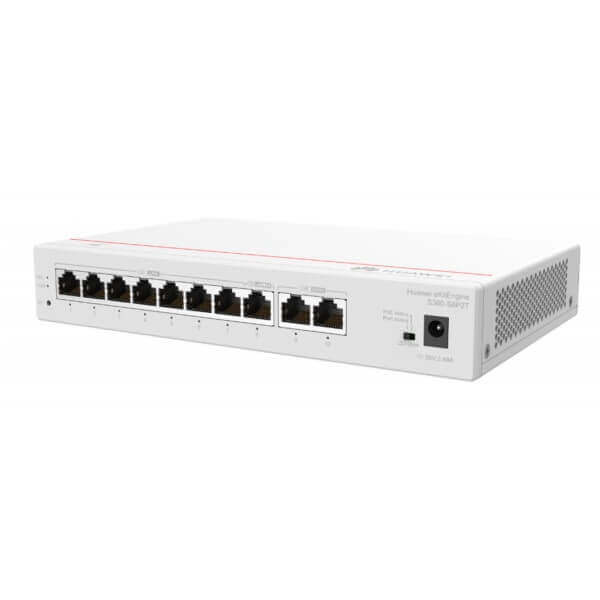

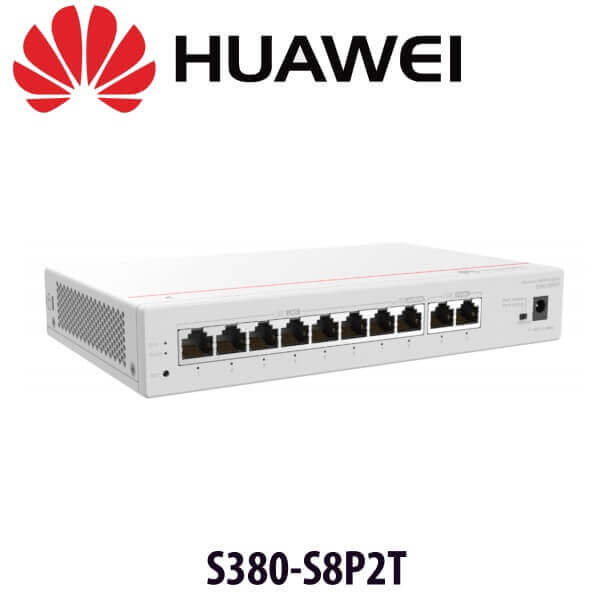

Huawei S380-S8P2T Ghana



Huawei S380-S8P2T Ghana

The Huawei S380-S8P2T Ghana Multi-Service Gateways are state-of-the-art devices that adeptly merge routing, switching, and wireless access control (WAC) functionalities into a single, all-encompassing unit.

Description

Huawei S380-S8P2T Multi-Service Gateway Ghana

The Huawei S380-S8P2T Ghana Multi-Service Gateways are state-of-the-art devices that adeptly merge routing, switching, and wireless access control (WAC) functionalities into a single, all-encompassing unit. These sophisticated gateways are available in a variety of configurations, each specifically designed to cater to a wide range of network requirements. The models come with either 4 or 8 downlink GE electrical ports, offering both PoE (Power over Ethernet) and non-PoE options, enabling users to select the setup that best fits their particular needs. Additionally, some models are equipped with GE uplink ports, which significantly enhance network flexibility and performance.

With user convenience as a central focus, the Huawei S380-S8P2T Ghana Multi-Service Gateways support flexible Ethernet networking, greatly simplifying the installation and deployment processes. This user-friendly design makes them an excellent choice for a wide range of indoor coverage applications. These gateways are especially beneficial for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. Their exceptional versatility and adaptability ensure that the Huawei S380-S8P2T Ghana can effectively meet the diverse networking needs of various business sectors, delivering efficient and reliable performance across a multitude of applications.

Furthermore, the Huawei S380-S8P2T gateways are designed with scalability in mind, ensuring that as businesses grow and their networking demands increase, the gateways can be easily upgraded and expanded to accommodate these changes. The integration of advanced security features provides robust protection against potential threats, ensuring the integrity and confidentiality of the network. The combination of these features makes the Huawei S380-S8P2T Ghana Multi-Service Gateways an ideal solution for businesses seeking a dependable, high-performance networking device that can adapt to their evolving needs. With their comprehensive set of features and capabilities, these gateways offer a robust and flexible solution for a wide range of networking challenges.

Technical Specifications

Description S380-S8P2T, 2*GE WAN, 8*GE LAN(PoE+, 124W)
Part Number 98012180
Model S380-S8P2T
First supported version V600R022C10
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height [U] 0.8 U
Chassis material Metal
Weight without packaging [kg(lb)] 1.5 kg (3.31 lb)
Weight with packaging [kg(lb)] 1.8 kg(lb)
Typical power consumption [W] 12.4 W
Typical heat dissipation [BTU/hour] 42.3 BTU/hour
Maximum power consumption [W] 145.8 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] 497.5 BTU/hour
Static power consumption 7.53
MTBF [years] 65.36 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
WAN ports 2 x GE WAN
LAN ports 8 x GE LAN (124 W PoE+)
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Power adapter
Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A] 2.68 A
Memory DDR4: 512 MB
Flash memory NAND Flash: 512 MB
Console port Not supported
Eth Management port LAN port
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±4 kV
Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction
PoE Supported
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
