Description

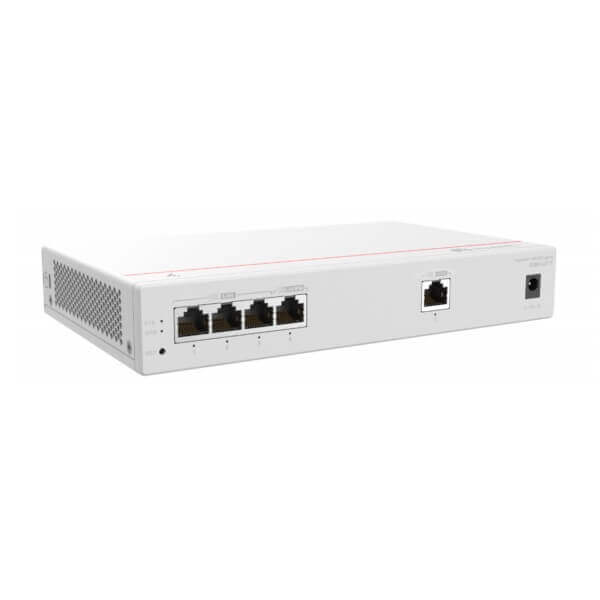

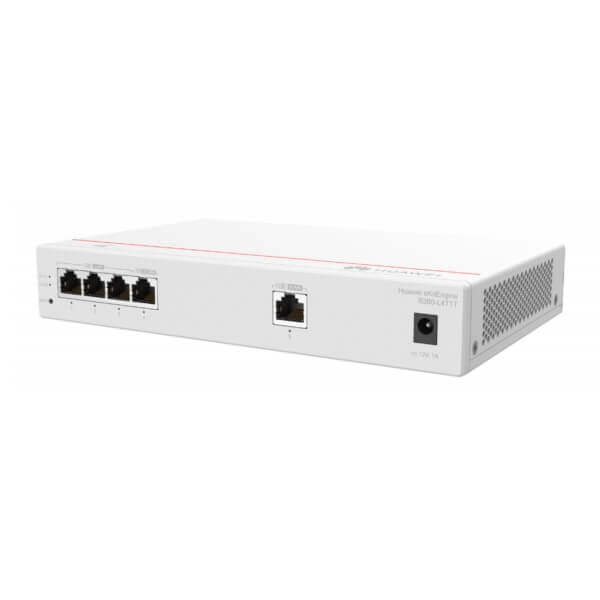

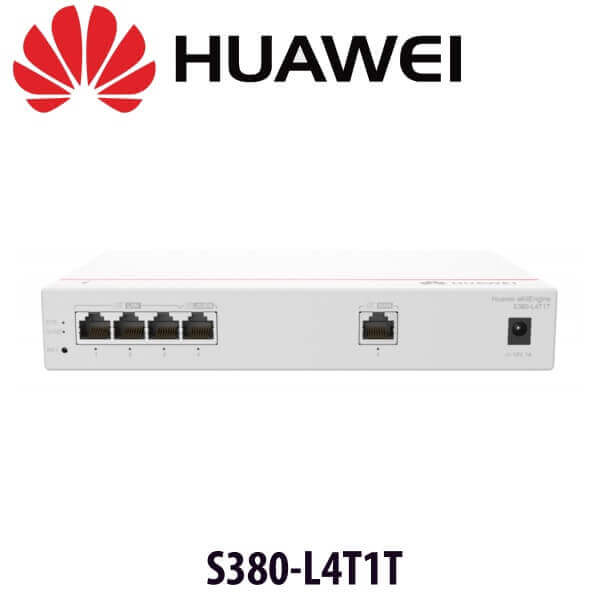

Huawei S380-L4T1T Multi-Service Gateway Ghana
The Huawei S380-L4T1T Ghana Multi-Service Gateways are sophisticated devices that seamlessly integrate routing, switching, and wireless access control (WAC) functionalities into a single, cohesive unit. These gateways are available in a range of configurations tailored to meet diverse network requirements. Specifically, they come in models equipped with either 4 or 8 downlink GE electrical ports, offering options for both PoE (Power over Ethernet) and non-PoE ports, as well as models that include GE uplink ports. This flexibility ensures that there is a suitable model for a variety of networking environments.
Engineered for simplicity in both installation and deployment, the Huawei S380-L4T1T Ghana supports flexible Ethernet networking, making it an excellent choice for numerous indoor coverage applications. It is particularly advantageous for small and medium-sized enterprises (SMEs), such as small office/home office (SOHO) settings, budget-friendly hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. The versatility and adaptability of the Huawei S380-L4T1T Ghana ensure that it can efficiently and effectively meet the diverse networking needs of various business sectors, providing a reliable and comprehensive networking solution.
Technical Specifications
| Description | S380-L4T1T, 1*GE WAN, 4*GE LAN |
| Part Number | 98012177 |
| Model | S380-L4T1T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.8 kg (1.76 lb) |
| Weight with packaging [kg(lb)] | 1.0 kg (2.2 lb) |
| Typical power consumption [W] | 5.99 W |
| Typical heat dissipation [BTU/hour] | 27.3 BTU/hour |
| Maximum power consumption [W] | 6.11 W |
| Maximum heat dissipation [BTU/hour] | 30.7 BTU/hour |
| Static power consumption [W] | 4.25 W |
| MTBF [years] | 77.35 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 1 x GE WAN |
| Downlink ports | 4 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Power adapter output: 12 V DC |
| Maximum input current [A] | 1 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
