Description

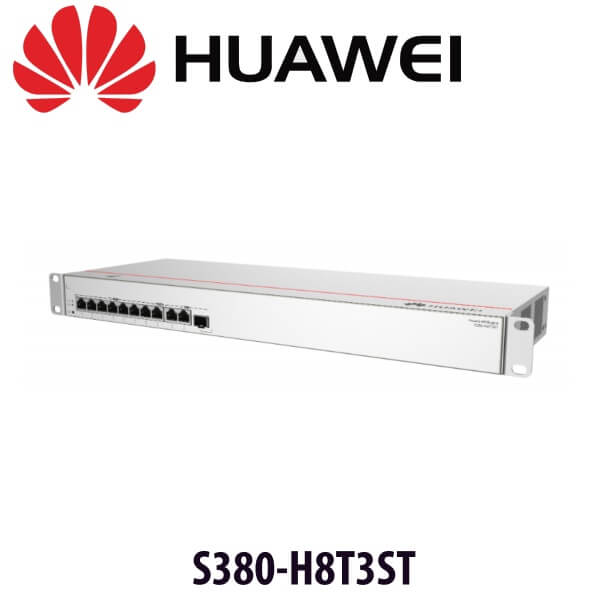

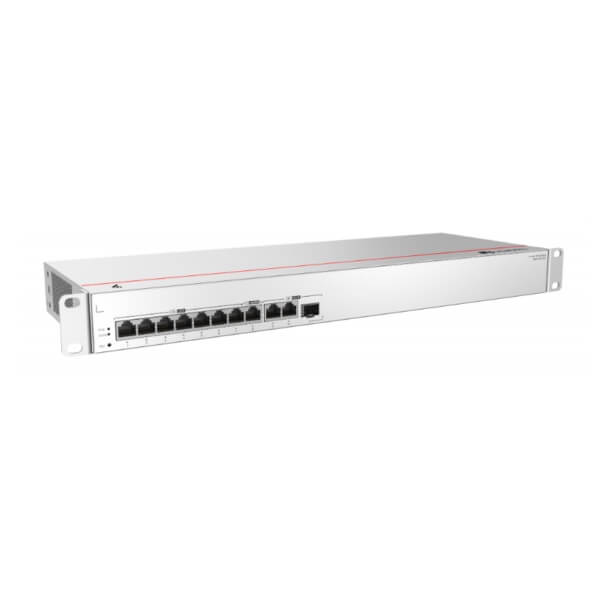

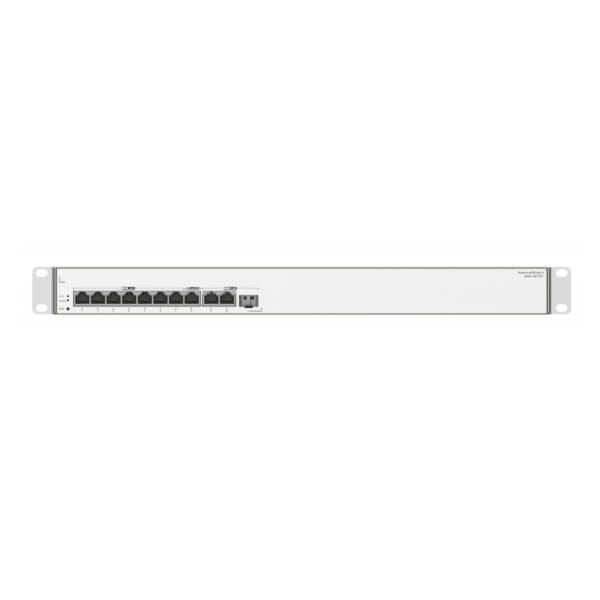

Huawei S380-H8T3ST Multi-Service Gateway Ghana
The Huawei S380-H8T3ST Ghana Multi-Service Gateways are cutting-edge devices that skillfully integrate routing, switching, and wireless access control (WAC) functionalities into a single, comprehensive unit. These advanced gateways come in a variety of configurations, each meticulously designed to meet a broad range of network requirements. The available models offer either 4 or 8 downlink GE electrical ports, with choices for both PoE (Power over Ethernet) and non-PoE ports, allowing users to select the setup that best fits their specific needs. Additionally, certain models are equipped with GE uplink ports, further enhancing network flexibility and performance.
Crafted with user convenience as a priority, the Huawei S380-H8T3ST Ghana Multi-Service Gateways support flexible Ethernet networking, significantly simplifying the installation and deployment processes. This user-friendly design makes them an ideal choice for a wide array of indoor coverage applications. These gateways are especially advantageous for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. Their extraordinary versatility and adaptability ensure that the Huawei S380-H8T3ST Ghana can effectively address the diverse networking needs of various business sectors, providing efficient and reliable performance across numerous applications.
Furthermore, the Huawei S380-H8T3ST gateways are engineered to be highly scalable, ensuring that as businesses grow and their networking demands increase, the gateways can be seamlessly upgraded and expanded to accommodate these changes. The integration of advanced security features offers robust protection against potential threats, safeguarding the integrity and confidentiality of the network. The combination of these features makes the Huawei S380-H8T3ST Ghana Multi-Service Gateways an optimal solution for businesses seeking a dependable, high-performance networking device capable of adapting to their evolving needs. With these gateways, businesses can confidently expand their network infrastructure, knowing they have a reliable and versatile solution to support their growth and operational efficiency.
Moreover, the comprehensive feature set of the Huawei S380-H8T3ST Ghana Multi-Service Gateways, combined with their ease of use and adaptability, positions them as a top choice for a wide range of applications. Whether used in an educational setting, a corporate environment, or a hospitality venue, these gateways deliver consistent, high-quality performance. Businesses can trust that their networking infrastructure is not only capable of meeting current demands but is also prepared for future growth and technological advancements. This assurance provides peace of mind and enables businesses to focus on their core operations without worrying about network limitations.
Technical Specifications
| Description | S380-H8T3ST, 2*GE WAN, 1*GE(SFP) WAN, 8*GE LAN |
| Part Number | 98012181 |
| Model | S380-H8T3ST |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 11.25 W |
| Typical heat dissipation [BTU/hour] | 38.4 BTU/hour |
| Maximum power consumption [W] | 11.5 W |
| Maximum heat dissipation [BTU/hour] | 39.2 BTU/hour |
| Static power consumption | 6.49 |
| MTBF [years] | 63.71 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| WAN ports | 2 x GE WAN, 1 x GE (SFP) WAN |
| LAN ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 1 GB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
