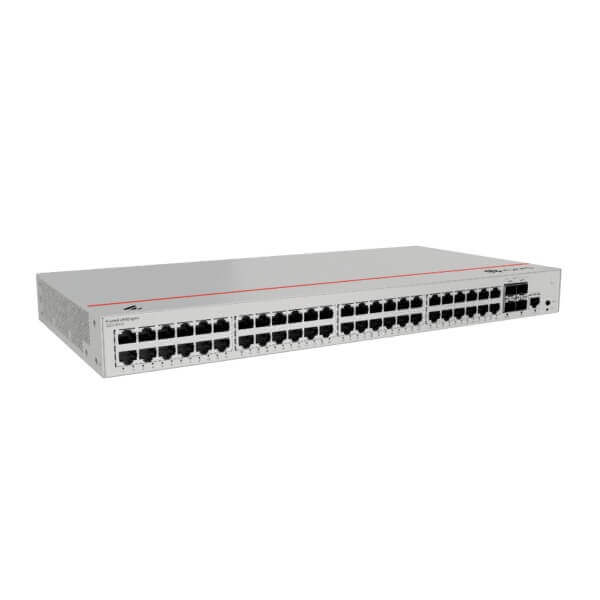

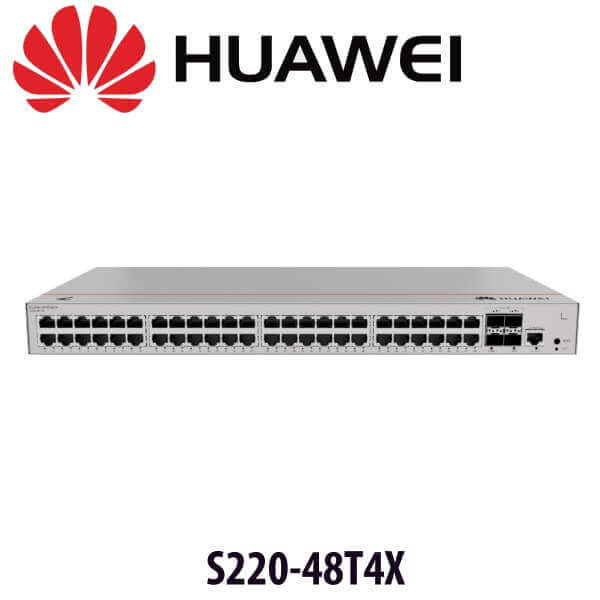

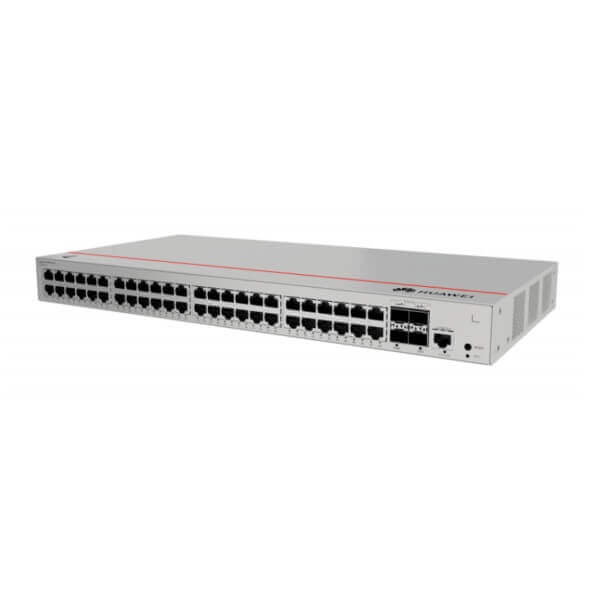

Huawei S220-48T4X Network Switch Ghana
The Huawei S220-48T4X Ghana fixed Ethernet switches are meticulously crafted to seamlessly integrate access and transmission functions within enterprise networks. Renowned for their dependable access and superior transmission quality, these switches are an ideal choice for businesses seeking efficient and robust network solutions. They are built on a unified hardware platform that features a comprehensive system, including the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring cohesive and reliable performance.
Designed as unmanaged switches, the Huawei S220-48T4X Ghana switches do not include web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities for remote administration. This deliberate design choice emphasizes simplicity and ease of use, making these switches perfect for straightforward network setups that do not require complex management. They offer a practical, efficient, and reliable solution for enterprises prioritizing easy installation and operation. Users seeking a hassle-free experience will find these switches particularly advantageous, as they provide a dependable and straightforward network solution without the need for advanced management capabilities. The Huawei S220-48T4X Ghana switches deliver a reliable and effective networking option tailored for modern businesses, ensuring seamless integration and high performance in enterprise environments. By focusing on simplicity and reliability, these switches are well-suited for enterprises that value straightforward and dependable network solutions.
Technical Specifications
| Description | S220-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power) |
| Part Number | 98012380 |
| Model | S220-48T4S |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.71 kg (5.97 lb) |
| Weight with packaging [kg(lb)] | 3.59 kg (7.91 lb) |
| Typical power consumption [W] | 36.15 W |
| Typical heat dissipation [BTU/hour] | 123.35 BTU/hour |
| Maximum power consumption [W] | 43.3 W |
| Maximum heat dissipation [BTU/hour] | 147.74 BTU/hour |
| Static power consumption [W] | 18.8 W |
| MTBF [years] | 40.61 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.6 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.6 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 48 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Not supported |
| Certification |
|
