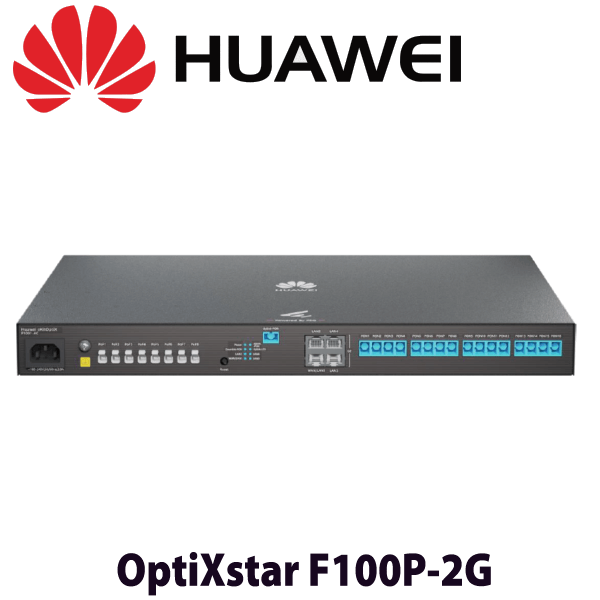

Huawei OptiXstar F100P-2G Optical Network Unit Ghana
The Huawei OptiXstar F100P-2G Ghana, represents a state-of-the-art Optical Network Unit (ONU) specifically engineered for enterprise applications. This compact and versatile device excels in delivering high-speed internet access, robust wireless connectivity, and seamless voice services—all facilitated through advanced fiber optic networks.
Designed with the needs of small and medium-sized businesses in mind, the Huawei OptiXstar F100P-2G ensures that these organizations can achieve reliable and efficient network connectivity, which is crucial for their day-to-day operations. By leveraging the capabilities of fiber optic technology, this ONU not only enhances the speed and reliability of internet connections but also supports various applications that businesses rely on, such as video conferencing, cloud services, and online collaboration tools.
In addition to its impressive performance, the Huawei OptiXstar F100P-2G is an affordable solution, making it an appealing choice for businesses looking to establish a solid network infrastructure without straining their budgets. This device provides a perfect balance of cost-effectiveness and high performance, allowing enterprises to enhance their operational efficiency while ensuring a dependable and future-proof network setup. By investing in the Huawei OptiXstar F100P-2G, businesses can confidently navigate the demands of modern connectivity, paving the way for growth and innovation.
Key Features:

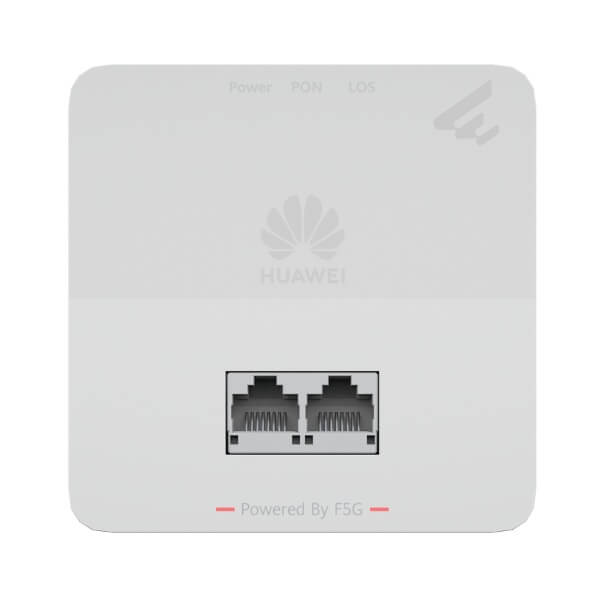

- 2 Gigabit Ethernet Ports: Connect multiple wired devices like computers and servers.
- Wi-Fi 6 Technology: Delivers faster wireless speeds and improved network performance.
- Voice Support: Supports traditional voice services like VoIP.
- Compact Design: Ideal for space-constrained environments.
- Easy Installation and Management: Simple setup and intuitive user interface.
- Reliable and Secure: Designed for enterprise environments, offering robust security features.
Technical Specifications
NNI | GPON |
GPON Port | SC/UPC |
UNI | 2*GE |
System power supply | 100–240 V AC, 50/60 Hz |
Dimensions (H x W x D) | Panel: 86 mm x 86 mm x 9.5 mmInternal module depth: 35 mm |
Operating temperature | –5°C to +40°C |
Weight | About 168 g |
Surge protection specifications | GE: 4 kV in common mode and 0.5 kV in differential mode; AC power port: 6 kV in common mode and 4 kV in differential mode |
Maximum power consumption | 7.2W |

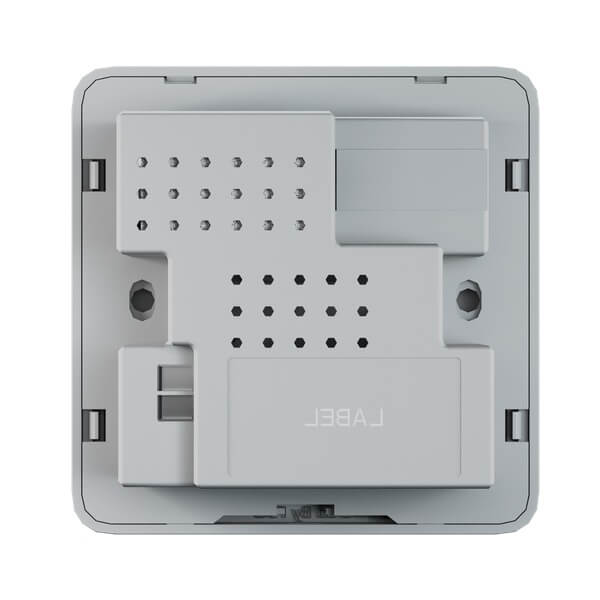

Installation mode | Indoor 86-box installation |
