Description

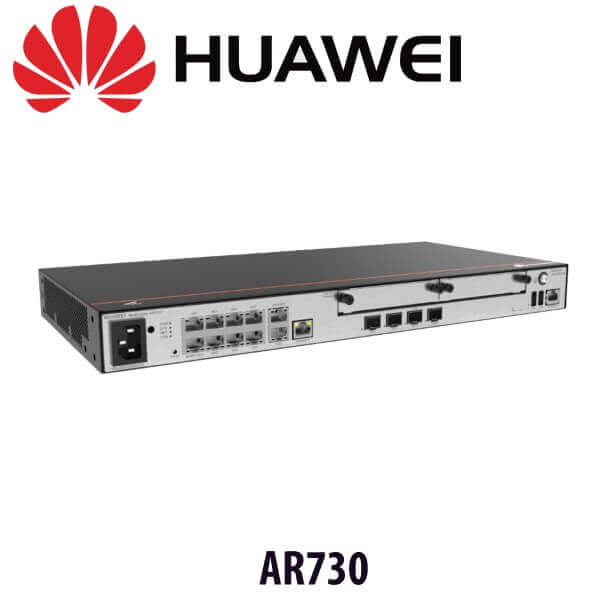

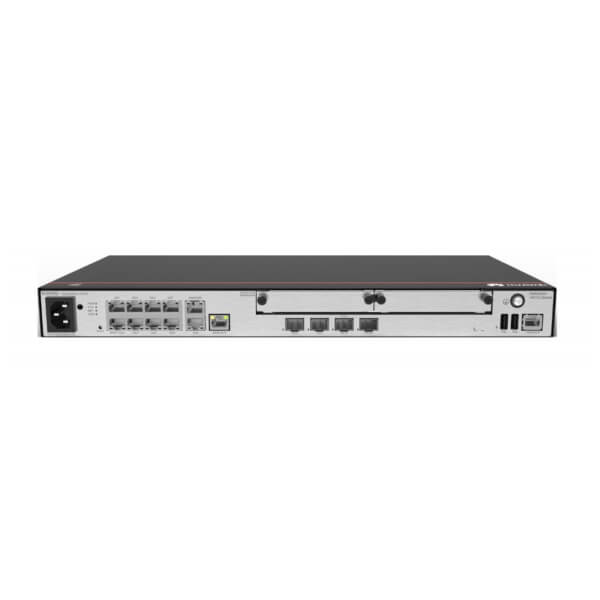

Huawei AR730 Enterprise Router Ghana
The Huawei AR730 Ghana routers stand at the cutting edge of high-performance networking devices, epitomizing the next wave of technological innovation in the field. These advanced routers are powered by ARM-based multi-core processors and incorporate a non-blocking switching architecture, collectively delivering a performance that is double the industry average. Beyond their impressive speed, the AR730 routers come equipped with an extensive range of integrated functionalities. These include 5G connectivity, sophisticated routing capabilities, advanced switching, robust VPN support, comprehensive security features, and MPLS technology. This extensive suite of features makes the Huawei AR730 Ghana routers the ideal solution for supporting a broad spectrum of enterprise services in the cloud era, adeptly addressing the dynamic and evolving needs of modern businesses. With their superior performance and multifunctional capabilities, the AR730 routers ensure that enterprises can seamlessly manage their network demands and stay ahead in a competitive landscape.
Features and Benefits
| Architechture | Benefits |
| Multi-core processor | High-performance multi-core processor, supporting high-speed WAN connections, providing powerful route computing capabilities, and improving L4–L7 service processing efficiency. |
| Non-blocking switching architecture | Maximum bus bandwidth of a single slot: 10 Gbit/s, eliminating service forwarding bottlenecks |
| Extensive network ports |
|
Technical Specifications
| Description | AR730, 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC |
| Part Number | 02354GBM-001 |
| Model | AR730 |
| First supported version | V300R022C00 |
| Installation type |
|
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.) |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 8 x GE electrical, 1 x GE combo |
| WAN ports | 2 x GE combo, 1 x 10GE optical (SFP+) |
| Number of service board slots | 2 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 2/2 |
| WSIC slots (default/maximum) | 0/1 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 30.05 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999924012 |
| Typical power consumption [W] | 28 W |
| Maximum power consumption [W] | 33 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Not supported |
| Type of fans | Built-in |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
| Environmental standards compliance |
|
