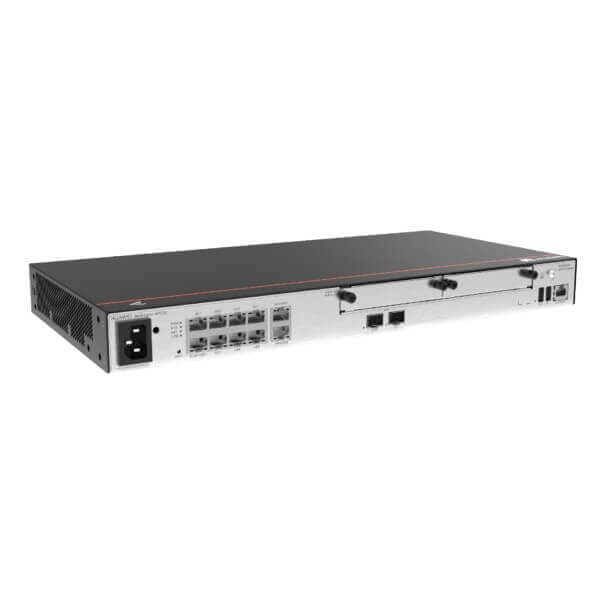

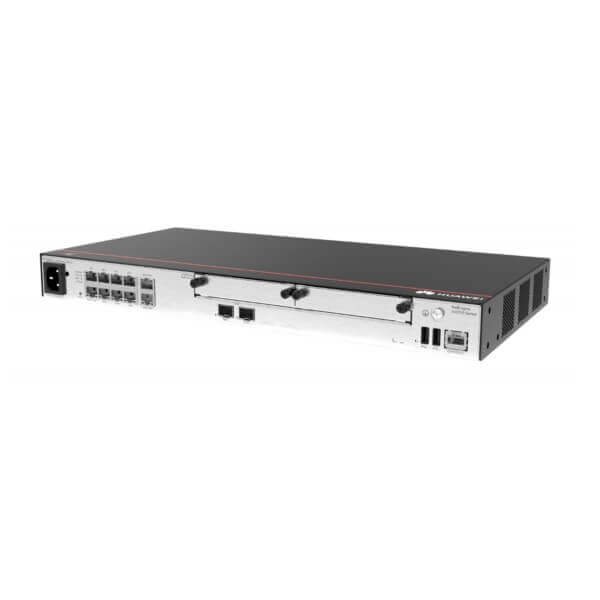

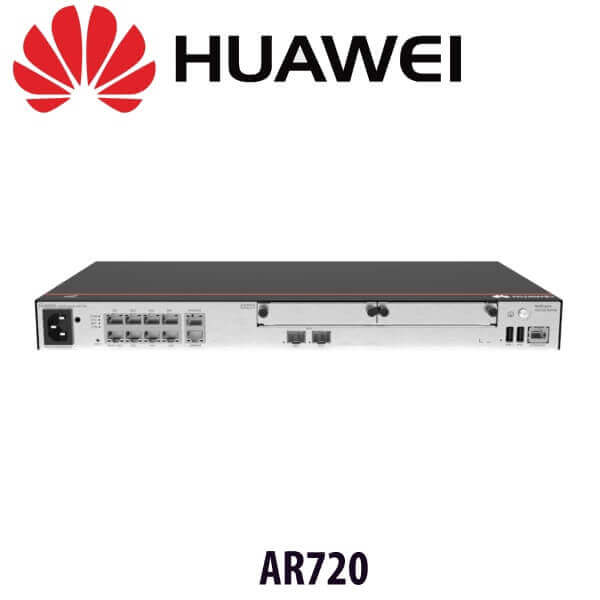

Huawei AR720 Enterprise Router Ghana
The Huawei AR720 Ghana routers epitomize the future of high-performance networking devices. Powered by state-of-the-art ARM-based multi-core processors, these routers boast a non-blocking switching architecture that significantly enhances performance, achieving speeds that are double the industry standard. Beyond their remarkable speed, the AR720 routers are equipped with an extensive array of integrated functionalities. These encompass 5G connectivity, advanced routing capabilities, sophisticated switching, robust VPN support, comprehensive security features, and MPLS technology. This vast feature set positions the Huawei AR720 Ghana routers as an optimal solution for facilitating a broad spectrum of enterprise services in the cloud era, adeptly addressing the evolving demands of modern businesses. As enterprises continue to adapt and expand their digital infrastructure, the Huawei AR720 Ghana routers provide the reliability and versatility needed to support these advancements, ensuring seamless and secure connectivity across all operations.
Features and Benefits
| Architechture | Benefits |
| Multi-core processor | High-performance multi-core processor, supporting high-speed WAN connections, providing powerful route computing capabilities, and improving L4–L7 service processing efficiency. |
| Non-blocking switching architecture | Maximum bus bandwidth of a single slot: 10 Gbit/s, eliminating service forwarding bottlenecks |
| Extensive network ports |
|
Technical Specifications
| Description | AR720, 2*GE combo WAN, 8*GE LAN, 2*USB 2.0, 2*SIC |
| Part Number | 02354GBG-001 |
| Model | AR720 |
| First supported version | V300R022C00 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.) |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 8 x GE electrical interfaces |
| WAN ports | 2 x GE combo |
| Number of service board slots | 2 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 2/2 |
| WSIC slots (default/maximum) | 0/1 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 30.05 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999924012 |
| Typical power consumption [W] | 28 W |
| Maximum power consumption [W] | 33 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Not supported |
| Type of fans | Built-in |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
| Environmental standards compliance |
|
