Description

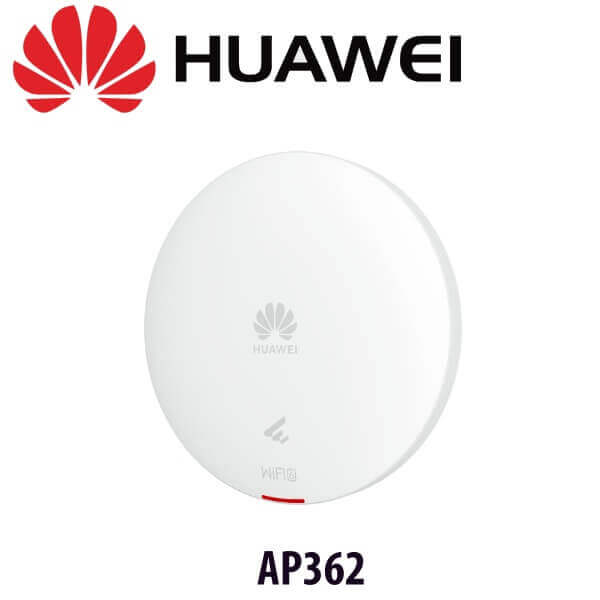

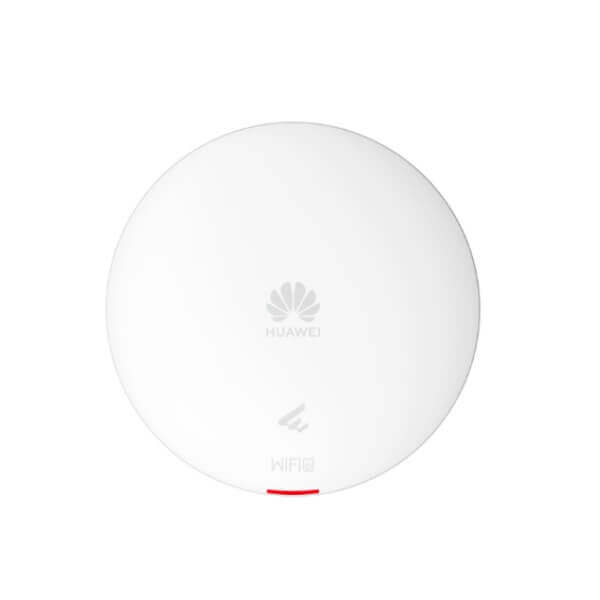

Huawei AP362 Access Point Ghana
The Huawei AP362 Ghana is a state-of-the-art indoor Wi-Fi 6 (802.11ax) access point designed to offer outstanding performance and versatility. This advanced access point supports simultaneous services on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands, ensuring robust and efficient wireless connectivity. With features such as high bandwidth, the capacity to manage multiple concurrent connections, and a sleek, compact design, it is perfect for flexible and easy deployment. Moreover, its cost-effectiveness makes it an attractive option for customers looking to maximize their investment.
These attributes make the Huawei AP362 Ghana particularly suitable for indoor coverage in the small and medium-sized enterprise (SME) market. It excels in a variety of environments, including SME network enterprise offices, small to medium-sized hospitals, commercial real estate properties, budget chain hotels, and primary and secondary educational institutions. Its adaptability and strong performance guarantee dependable and efficient connectivity across these diverse settings, making it an excellent choice for ensuring reliable wireless access.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the changing application environment, providing accurate and stable coverage as STAs move
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP362(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50085706 |
| Model | AP362 |
| First supported version | V200R021C11 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 200 mm x 231 mm x 52 mm (7.87 in. x 9.09 in. x 2.05 in.) |
| Weight without packaging [kg(lb)] | 0.46 kg (1.01 lb) |
| Weight with packaging [kg(lb)] | 0.80 kg (1.76 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 11.2 W |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
|
| Service port surge protection | PoE port:
Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
|
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 205.07 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | No function is limited. |
