Description

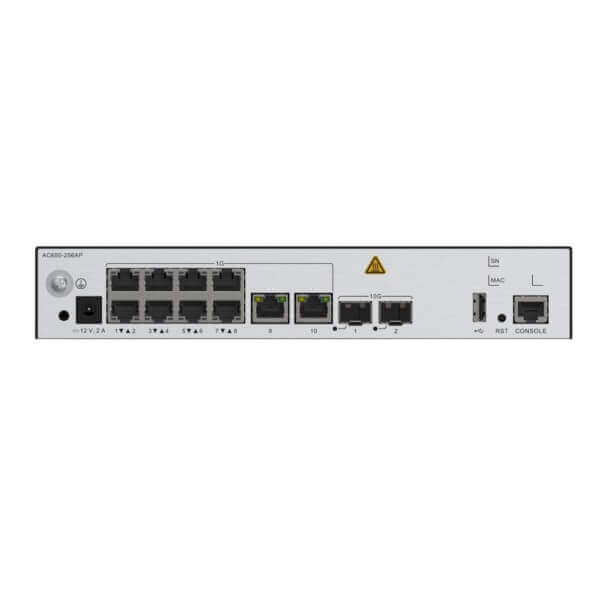

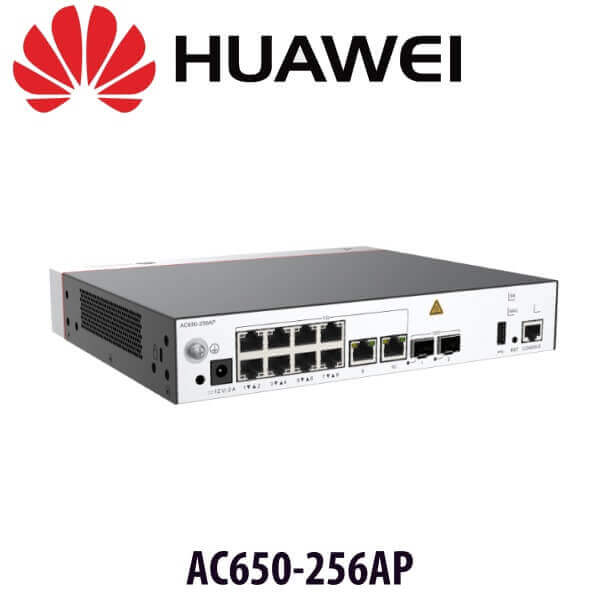

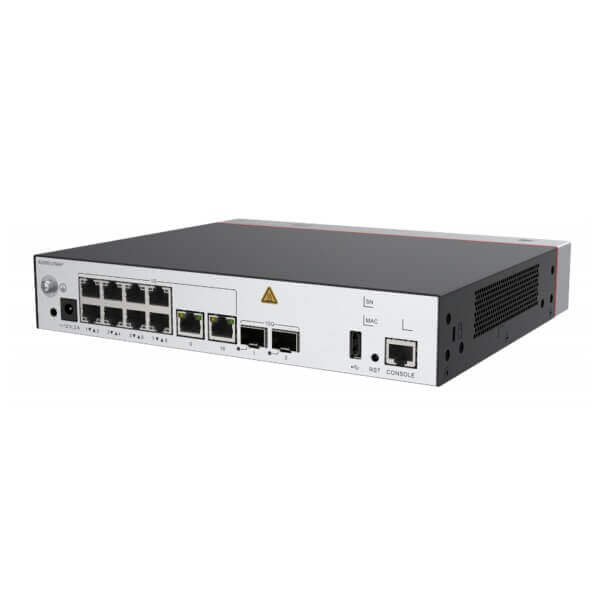

Huawei AC650-256AP Wireless Access Controller Ghana
The Huawei AC650-256AP Ghana is a cutting-edge wireless access controller (AC) developed by Huawei, tailored specifically to address the needs of small and medium-sized enterprises (SMEs) in the network market. This advanced device integrates seamlessly with Huawei access points (APs) to create dependable wireless networks, making it ideal for a variety of settings including small campus networks, office networks for smaller businesses, and areas that require extensive hotspot coverage.
With the capacity to manage up to 256 access points, the Huawei AC650-256AP Ghana ensures robust network performance and consistent connectivity across different environments. Additionally, this powerful controller can support access for up to 2048 simultaneous stations (STAs), providing comprehensive coverage and reliable connections for a large number of devices. This makes it a versatile solution for SMEs looking to enhance their network infrastructure with a high level of reliability and performance.
Technical Specifications
| Description | AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCH |
| Model | AC650-256AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
