Description

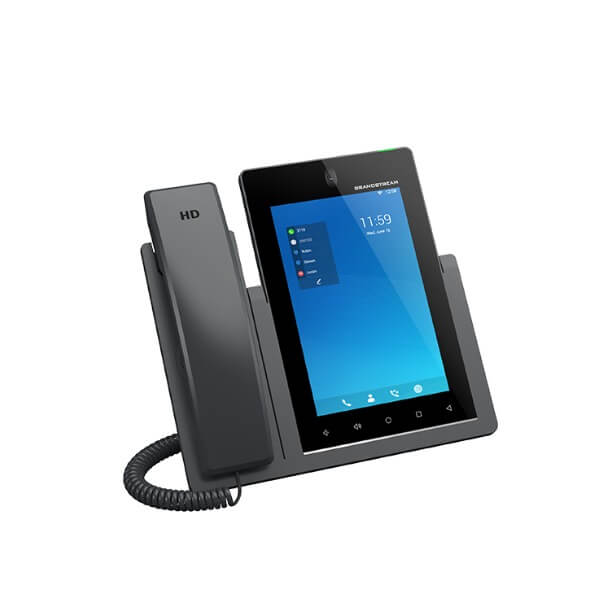

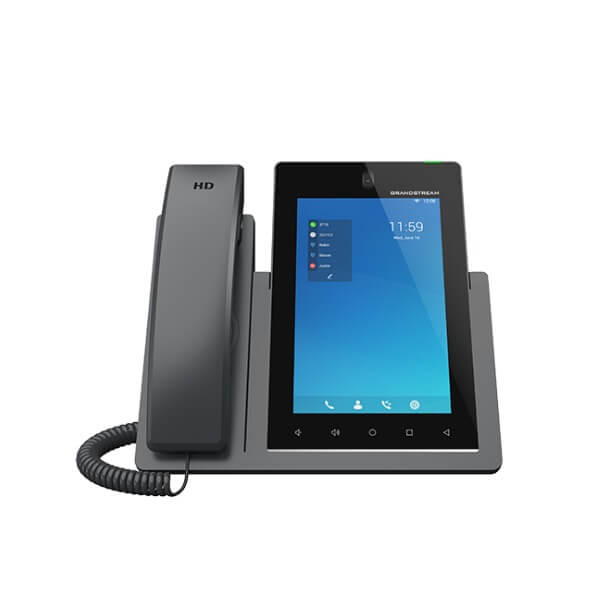

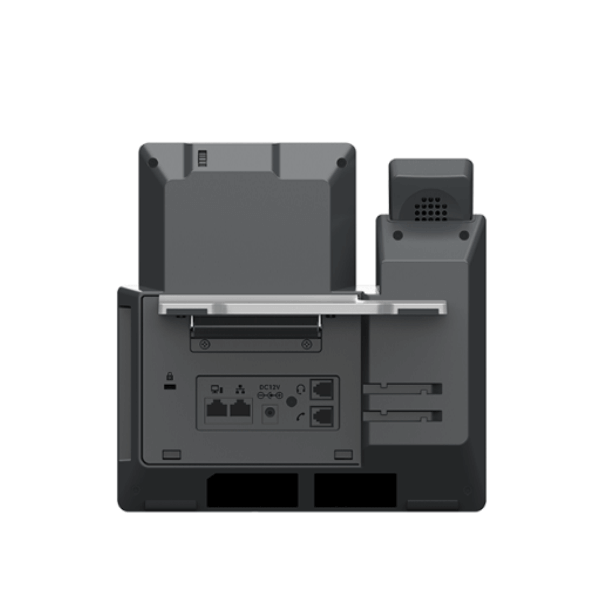

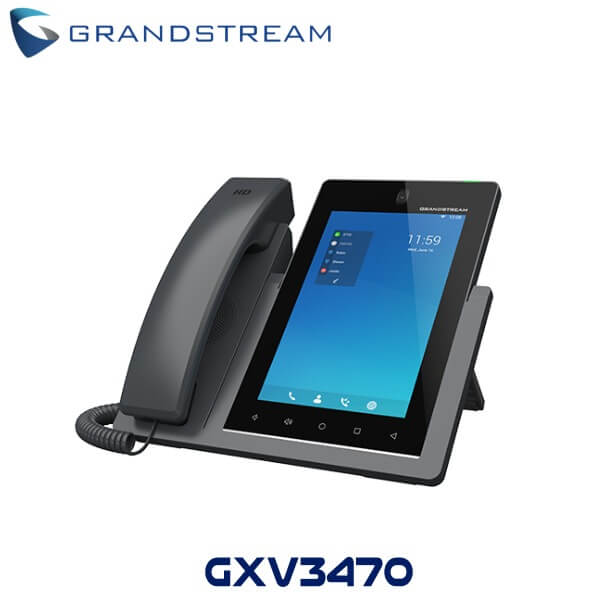

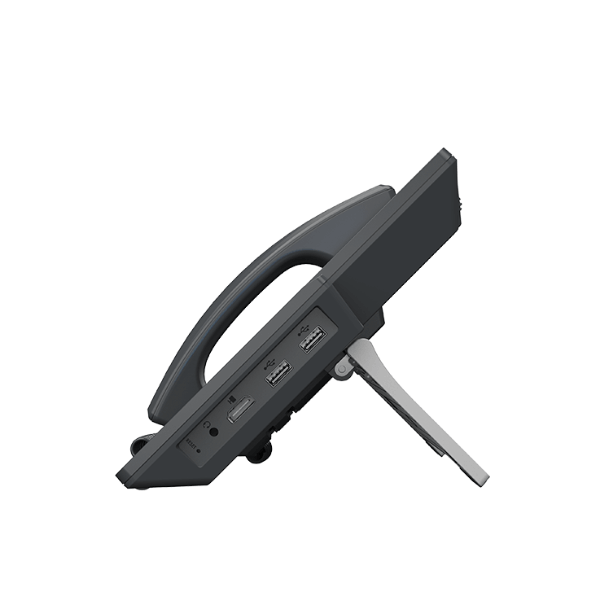

Grandstream GXV3470 High-End Smart Video IP Phone Ghana

The Grandstream GXV3470 Ghana provides an all-in-one desktop collaboration and productivity solution with 7” touch screen, Android™ 11, integrated Wi-Fi, Bluetooth, and more. This Smart Video IP Phone Ghana delivers a powerful experience thanks to its 7-inch 800×1280 touch screen, built-in 2-megapixel camera, support for 1080p HD video, integrated dual-band Wi-Fi 6, built-in Bluetooth, HDMI input/output and more. The Grandstream GXV3470 Ghana runs on Android 11 to offer full access to the millions of Android applications and supports custom app development. It can be seamlessly integrated with other Grandstream products, including Wi-Fi access points, routers, facility access solutions, IP PBXs, video conferencing devices and more.

The Grandstream GXV3470 Ghana is the ideal desktop device for busy professionals, executives, sales teams and receptionists as it offers instant access to a variety of voice, video, multimedia and application communication solutions. It also offers a powerful yet cost-effective video device for any conference room. Additionally, Grandstream GXV3470 Ghana also provides a high-end hotel room phone while supporting custom Android apps that could allow guests to manage their stay from the phone.

Features

• Runs Android 11 and offers access to the millions of Android apps
• 7-inch (800×1280) capacitive touch screen
• Built-in 2-megapixel camera for video calling with privacy shutter
• Integrated dual-band Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Built-in Bluetooth support for syncing with mobile devices, Bluetooth headsets, etc.
• Dual-mic HD speakerphone with Noise Shield 2.0, advanced echo cancellation and excellent double-talk performance for any scenario
• Dual Gigabit ports with PoE/PoE+
• 16 lines with up to 16 SIP accounts
• Built-in support for 10-way HD audio conferencing and 3-way 720p 30fps HD video conferencing
• Quad-core 2.0GHz ARM Cortez A55 processor with 2GB RAM and 16GB eMMC Flash
• Peripherals include HDMI output, USB 3.0, USB 2.0, RJ9 headset jack and 3.5mm stereo headset
• Advanced SDK/API available for custom application deployment

Specifications

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+

Graphic Display

• 7″ 1024×600 capacitive touch screen (5 points) TFT LCD

Camera

• Tiltable mega-pixel CMOS camera with privacy shutter, 720p 30fps

Bluetooth

• Yes, integrated Bluetooth 4.0 + EDR

WiFi

• Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz)

Auxiliary Ports

• RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD, HDMI-out (1.4 up to 720p 30fps)

Feature Keys

• 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK

Voice Codecs and Capabilities

• 711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p 30fps), anti-flickering, auto focus and auto exposure

Telephony Features

• Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way audio conference (including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 1000 items), call record (local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications

• Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock, Recorder, GS Market, etc. Supports third-party Android apps such as Microsoft Teams API/SDK available for advanced custom application development

Applications Deployment

• Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control

HD Audio

• Yes, HD handset and speakerphone with support for wideband audio

Base Stand

• Yes, built-in stand with multiple adjustable angles. Wall mountable.

QoS Layer

• 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, 256- bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

• English, German, Italian, French, Spanish, Portuguese, Russian, Polish, Hebrew, Dutch, Turkish, Swedish, Ukrainian, Arabic, Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069, AES encrypted XML configuration file, or Grandstream Device Management System (GDMS)

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
• NOTE *USB enabled only when power supply or PoE+ is used.

Temperature and Humidity

• Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing

Package Content

• GXV3370 phone, handset with cord, universal power supply, network cable, screen cleaning cloth, quick installation guide, GPL license, wall mount bracket

 Compliance FCC:

• Part 15 (CFR 47) Class B; UL 60950 (power adapter); Part68 (HAC) CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268 EAC
