Grandstream GWN7703 Ghana



Grandstream GWN7703 Ghana

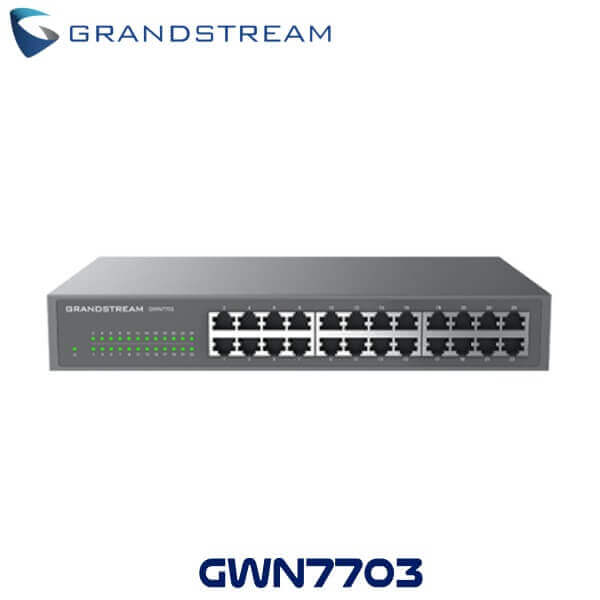

The Grandstream GWN7703 Ghana is a network switch that provides a fast and cost-effective solution for adding high-speed Gigabit connectivity to your home office or small business. These switches do not require any configuration or installation and can be easily mounted on a desk or wall.

Description

Grandstream GWN7703 Network Switch Ghana

The Grandstream GWN7703 Ghana is a network switch that provides a fast and cost-effective solution for adding high-speed Gigabit connectivity to your home office or small business. These switches do not require any configuration or installation and can be easily mounted on a desk or wall. They also have auto MDI/MDIX functionality, which eliminates the need for crossover cables. Each port of the Grandstream GWN7703 Ghana supports auto-negotiation, allowing the switch to detect the connection speed of each 10/100/1000 Mbps network device and adjust accordingly for compatibility and optimal performance. Moreover, the PoE (Power-over-Ethernet) model comes with a port that has intelligent dynamic PoE output, complying with IEEE 802.3af standards. This enables you to power IP phones, IP cameras, WiFi access points, and other PoE endpoints effortlessly. Ultimately, the plug-and-play Grandstream GWN7703 Ghana is the ideal choice for home offices and small businesses that require an unmanaged network switch.

Technical Specifications

  • Gigabit Ports : 24
  • PoE Ports :  N/A
  • Enclosure :  Metal
  • Mounting :  Desktop/Rack-Mount
  • Standards and Protocols :  IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
  • Port Features :
    • 16 * 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :  1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • LED Indicators :
    • Per port :  Link/Activity Green
    • Per device :  Power Green
  • Mac Address Table :  8K
  • Switching Capacity : 48Gbps
  • Jumbo Frame :  10KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • Half duplex backpressure
  • Power Adapter :  Internal 100-240V AC, 50/60Hz,18W
  • Max Power Consumption by Base System :   13W@220V/50Hz
  • Environmental :
    • Operating Temperature :  0 to 40 °C (32 to 104 °F)
    • Storage Temperature :  -20 to 60 °C (-4 to 140 °F)
    • Operating Humidity :  10% to 90% Non-condensing
    • Storage Humidity :  10% to 90% Non-condensing
  • Dimensions (L x W x H) :
    • Unit :  280 x 180 x 44mm;
    • Package :  366 x 211 x 53mm
  • Weight :
    • Unit : 1.35KG
    • Entire Package : 1.95KG
  • Package :
    • 1x Switch
    • 1x 1.2m AC Cable
    • Rack-mounting Standard Brackets
    • 4x Rubber Feet
    • 1x QIG
  • Compliance :   FCC, CE, RCM, IC, UKCA

Datasheet Download
