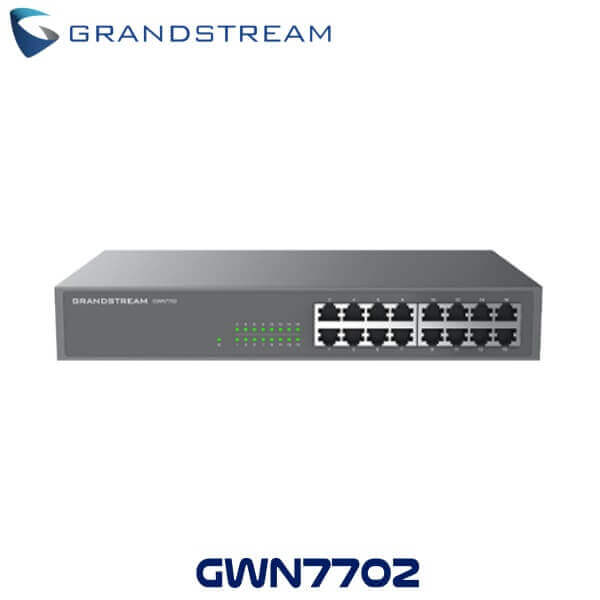

Grandstream GWN7702 Ghana

The Grandstream GWN7702 Ghana is an unmanaged network switch that provides a fast and cost-effective solution for adding high-speed gigabit connectivity to home offices and small businesses.

Description

Grandstream GWN7702 Network Switch Ghana

The Grandstream GWN7702 Ghana is an unmanaged network switch that provides a fast and cost-effective solution for adding high-speed gigabit connectivity to home offices and small businesses. These switches require no configuration or installation and can be desk or wall mounted. It also features auto MDI/MDIX functionality, eliminating the need for crossover cables. Each port of Grandstream GWN7702 Ghana supports auto-negotiation, allowing the switch to detect the link speed of each 10/100/1000 Mbps network device and adjust accordingly for compatibility and optimal performance. For added convenience, the PoE (Power-over-Ethernet) model features an IEEE 802.3af/compliant intelligent dynamic PoE output port. With this feature, you can power IP phones, IP cameras, WiFi access points and other PoE endpoints. Finally, the plug-and-play Grandstream GWN7702 Ghana is ideal for home offices and SMBs requiring an unmanaged network switch.

Technical Specifications

Gigabit Ports : 16
PoE Ports : N/A
Enclosure : Metal
Mounting : Desktop/Rack-Mount
Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Features :
- 16 * 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media : 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
LED Indicators :
- Per port : Link/Activity Green
- Per device : Power Green
Mac Address Table : 8K
Switching Capacity : 32Gbps
Jumbo Frame : 10KB
Advanced Features :
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- Half duplex backpressure
Power Adapter : Internal 100-240V AC, 50/60Hz,18W
Max Power Consumption by Base System : 8W@220V/50Hz
Environmental :
- Operating Temperature : 0 to 40 °C (32 to 104 °F)
- Storage Temperature : -20 to 60 °C (-4 to 140 °F)
- Operating Humidity : 10% to 90% Non-condensing
- Storage Humidity : 10% to 90% Non-condensing
Dimensions (L x W x H) :
- Unit : 280 x 180 x 44mm;
- Package : 366 x 211 x 53mm
Weight :
- Unit : 1.23KG
- Entire Package : 1.83KG
Package :
- 1x Switch
- 1x 1.2m AC Cable
- Rack-mounting Standard Brackets
- 4x Rubber Feet
- 1x QIG
Compliance : FCC, CE, RCM, IC, UKCA
