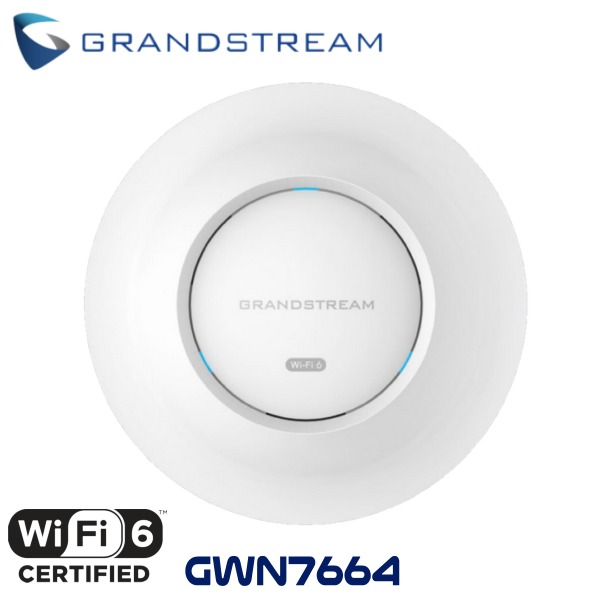

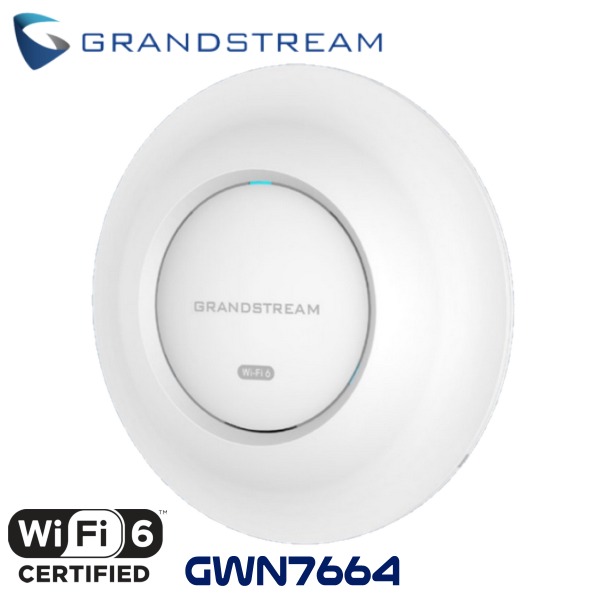

Grandstream GWN7664 WiFi6 AP Access Point Ghana

The Grandstream GWN7664 WiFi6 Access Point Ghana is a powerful wireless, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. This GWN7664 WiFi6 Access Point provides dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range of up to 175 m (574 ft). The GWN7664 wireless Access Point Ghana has numerous advanced security features like critical data lockdown via digital signatures, unique security certificates, support for advanced wireless encryption standards and more. The embedded controller lets you manage up to 50 local GWN series access points as part of the same system.

The Grandstream GWN7664 Wifi Access Point Ghana is supported by GWN. Cloud and GWN Manager, provides Wi-Fi management platform making on premise and cloud network several networks across multiple locations management simple. Utilizing less network management architecture, the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 Wireless Access Point Ghana is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With advanced QoS features GWN7664 WiFi6 Access Point allow users to optimize the system for the applications such as VoIP telephony, video conferencing, general internet use and more.

Key Features

• 55Gbps aggregate wireless throughput,3.5Gbps aggregate wired throughout
• Dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Support 512 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management

Technical Specifications

• Weight: 1.54 lbs
• Dimensions: 10.16 × 9.72 × 3.39
• Brand: Grandstream
• Networking Device Type: Wireless Access Points
• Wi-Fi Standards: 802.11 a/b/g/n/ac/ax
• Antennas: 8x internal antennas
• Data Rates:
• 5 GHz: 802.11 ax: up to 8 Mbps to 2402 Mbps
• 4 GHz: 802.11 ax: 8 Mbps to 1147 Mbps
• MIMO: 4×4:4 (5 GHz), 4×4:4 (2.4 GHz)
• Wi-Fi Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3
• Coverage Range: up to 175 m (574 ft)
• SSIDs: 32 total (16 per radio)
• Concurrent Clients: 512
• Ethernet Ports: 1x Gigabit, 1x 2.5 Gigabit
• Mounting: indoor wall mount, ceiling mount (kits included)

Package Content

• GWN7664 Access Point
• Mounting Kits
• Quick Start Guide
