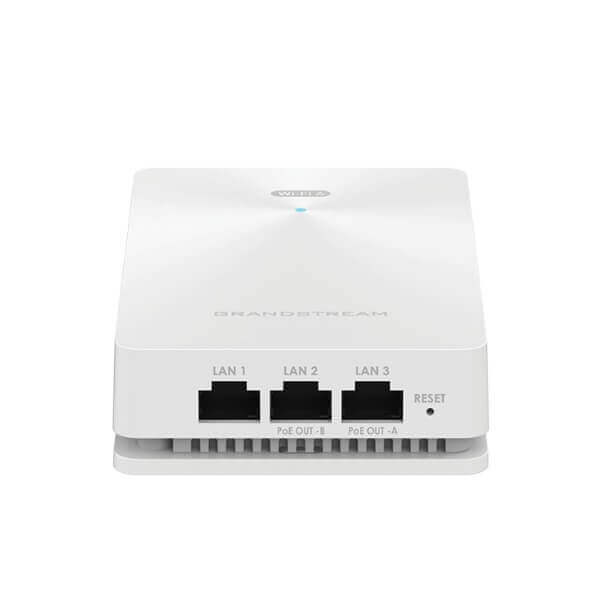

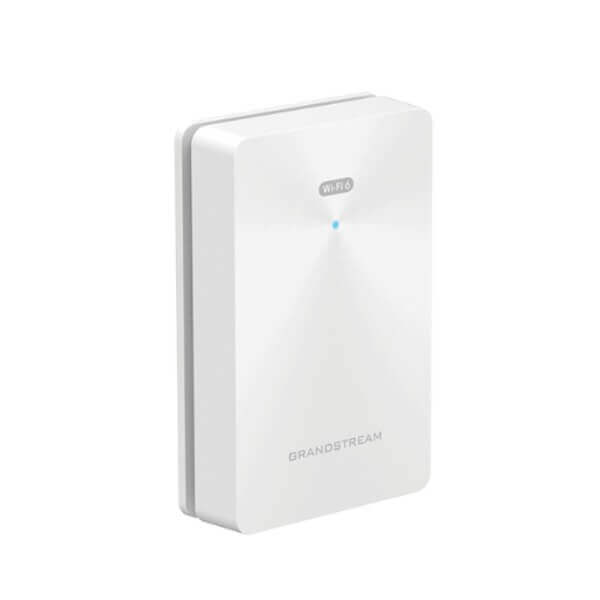

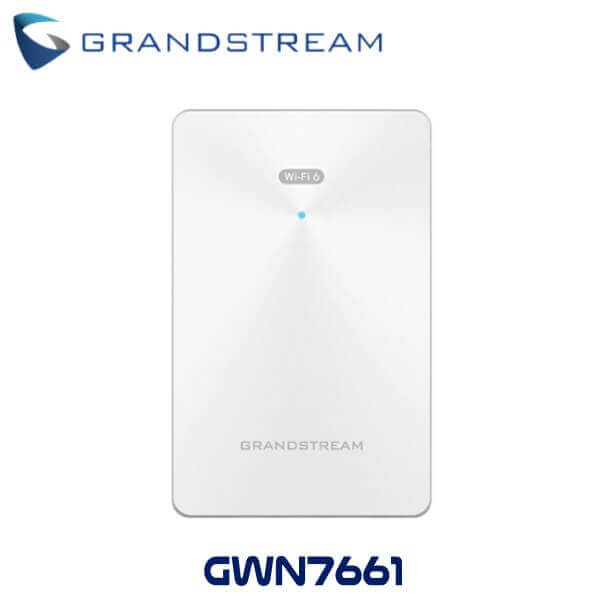

Grandstream GWN7661 Wi-Fi 6 Access Point Ghana

Grandstream GWN7661 Ghana is a Wi-Fi 6 access point designed for various environments such as small and medium businesses, offices, apartment complexes, commercial establishments and hotels. With 2 x 2:2 dual-band MU-MIMO technology and an advanced antenna design, the access point ensures optimal network performance and extended Wi-Fi coverage. Wi-Fi 6 (also known as 802.11ax) is capable of supporting dense environments where multiple users and devices require fast, reliable, and consistent Wi-Fi connections. The Grandstream GWN7661 Ghana provides three gigabit network ports to power IP phones, IPTV, computers and similar devices over Ethernet. At the same time, a PoE/PoE interconnect gigabit network port is provided to achieve wired terminal access while meeting wireless coverage requirements. As an integrated access point, the GWN7661 provides a seamless professional installation that seamlessly integrates with its environment. It features an unattended distributed network design and the console is integrated into the product’s web-based user interface, ensuring easy installation and management. It also supports Grandstream’s GWN.Cloud and GWN Manager, a free cloud-based local Wi-Fi management platform. The Grandstream GWN7661 Ghana is ideal for Wi-Fi Voice installations as it provides a seamless connection to Grandstream Wi-Fi IP phones. It supports advanced quality of service (QoS), low-latency real-time applications, mesh networks, captive gateways, and the ability to handle up to 500 concurrent clients per access point, making it ideal for media without medium and medium size thread. network facilities. user intensity.

Features

• 77 Gbps wireless throughput and 4x Gigabit wireline ports
• Dual-band 2×2 : 2 MU-MIMO with DL/UL OFDMA technology
• Supports up to 500+ concurrent Wi-Fi client devices
• Self power adaptation upon auto detection of PoE or PoE+
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Additional Information on Grandstream GWN7661 :

Technical Specifications

GENERAL INFO :

• Model : GWN7661
• Box Contents :
  • GWN7661 Wi-Fi 6 In-Wall Wireless AP
  • Mounting Kits
  • Quick Installation Guide

WI-FI :

• Wi-Fi Standards :
  • IEEE 802.11 a/b/g/n/ac/ax
• Antennas :
  • 4 single band internal antennas
  • 2.4GHz x2, gain 3dBi;
  • 5GHz x2, gain 4.0dBi, gain 4.5dBi
• Wi-Fi Data Rates :
  • 5G :
    • IEEE 802.11ax : 7.3 Mbps to 1201 Mbps
    • IEEE 802.11ac : 6.5 Mbps to 867 Mbps
    • IEEE 802.11n : 6.5Mbps to 300Mbps
    • IEEE 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 2.4G :
    • IEEE 802.11ax : 7.3 Mbps to 573.5 Mbps
    • IEEE 802.11n : 6.5Mbps to 300Mbps IEEE 802.11b : 1, 2, 5.5, 11 Mbps
      IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands :
  • 2.4GHz Radio : 2412 – 2484 MHz
  • 5GHz Radio : 5180 – 5825 MHz
• Channel Bandwidth :
  • 2.4G : 20 and 40 MHz
  • 5G : 20, 40 and 80 MHz
• Wi-Fi and System Security :
  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO :
  • 2×2 : 2 2.4GHz
  • 2×2 : 2 5GHz
• Coverage Range :
  • Up to 100 meters
