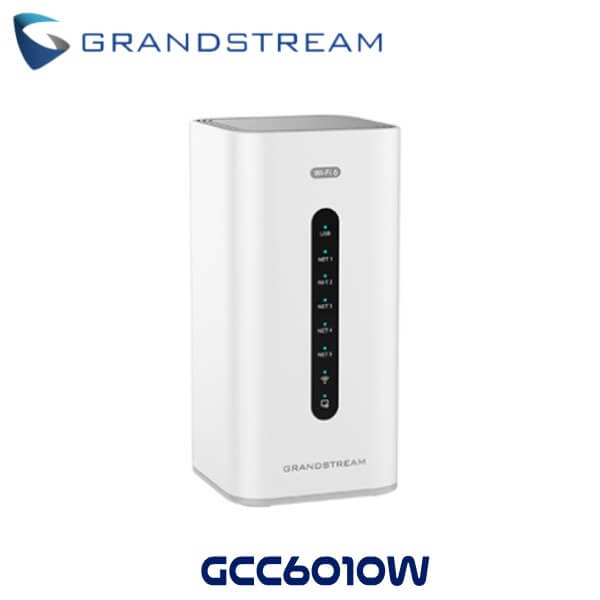

Grandstream GCC6010W Ghana



Grandstream GCC6010W Ghana

The Grandstream GCC6010W Ghana offers an exceptional all-in-one solution that revolutionizes the communications landscape by seamlessly integrating unified communications and networking solutions into a single platform.

Description

Grandstream GCC6010W All-in-One Solution Ghana

The Grandstream GCC6010W Ghana offers an exceptional all-in-one solution that revolutionizes the communications landscape by seamlessly integrating unified communications and networking solutions into a single platform. These cutting-edge devices consolidate the functionality of four distinct products into one comprehensive solution, incorporating a VPN router, next-generation firewall, IP PBX, and either a network switch or Wi-Fi access point.With the GCC Series, businesses can effortlessly create and manage wired, wireless, and VPN networks while providing enterprise-grade network security. Furthermore, these devices facilitate the use of a market-leading communication and collaboration platform. Their flexibility allows for unified management and centralized control of all Grandstream endpoint solutions, including Wi-Fi access points, network switches, IP phones, and more.

The Grandstream GCC6010W Ghana empowers users to configure full unified communications, networking, and security solutions within minutes. These configurations can be managed through the cloud using the Grandstream Device Management System (GDMS) and are also accessible via a mobile app, local Web UI, and CLI console management. This makes the system incredibly user-friendly and versatile.Ideal for small to medium-sized businesses, the Grandstream GCC6010W Ghana delivers an all-in-one platform that amalgamates all business data, security, communication, and collaboration needs into a single device. This integration simplifies the process of building state-of-the-art communication solutions, making it more straightforward and cost-effective than ever before. With this innovative approach, businesses can achieve top-tier communication solutions that are both efficient and affordable.

Features and Benefits

VPN Router

Secure Multi-WAN and Networking

  • Dynamic routing and Multi-WAN capabilities
  • NAT, VLAN, performance-based WAN link selection and monitoring
  • Load balancing, WAN link failover
  • Hardware and firewall acceleration
  • DHCP server, DNS server, IGMP proxy, TURN server
  • IPv4/IPv6 support

Firewall

  • Filter by source destination, protocol, and port
  • Stateful packet inspection
  • DoS attack protection (UDP/ICMP/SYN flood)
  • Enhanced spoofing defense

Wi-Fi Access Point

  • Up to 500+ concurrent Wi-Fi client devices
  • Dual-band (2.4 GHz and 5 GHz)
  • 802.11 a/b/g/n/ac/ax wireless standards
  • Wireless intrusion detection and prevention
  • Virtual access point
  • Captive portals

IP PBX

  • Supports 12 users and 4 concurrent calls by default, upgrades available for purchase that provide expansion
  • Rich PBX services, including Call Forwarding, Transfer,Parking, Intercom/Paging, IVR, Emergency Calls, etc
  • Built-in audio and video conferencing platform, supports Wave Desktop/Web/Android/iOS
  • Fast provisioning of Grandstream SIP endpoints
  • Supports multiple audio and video encodings, such as Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.15.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 , H.264, H.263, H263+, VP8
  • QoS : FEC/JB/NetEQ/ToS/DSCP
  • Protocols: SIP, TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, SFTP, SSH, HTTPS, RTSP, STUN, SRTP, TLS, LDAP
  • Full API available for third-party platform and application integration
  • Supports Property Management Systems (PMS), call centers, CRM integration, and more.

Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas
  • 3 individual internal antennas ( 2 x dual band + 1 x single band 5G)
  • 2.4GHz: maximum gain 4dBi
  • 5 GHz: maximum gain 6dBi
Channel Bandwidth
  • 2.4G: 20 and 40 MHz
  • 5G: 20, 40, 80, 160 MHz
Wi-Fi and System Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per devic

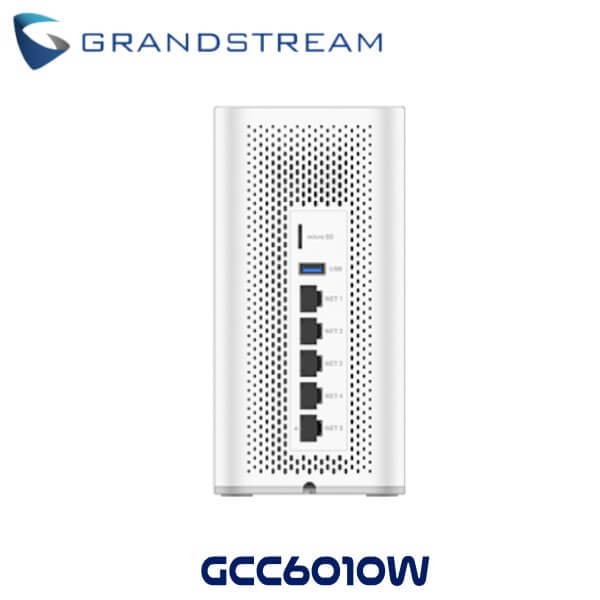

Network Ports 5x Gigabit Ethernet ports
*All ports are WAN/LAN configurable, max 3x WAN
Network Protocols IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
Firewall
  • DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALG
  • DPI, Anti-Virus, IPS/IDS, SSL proxy
  • Content Control: DNS filtering, web url/class/key words filtering, application identification and control
VPN
  • IPsec VPN Client-to-Site / Site-to-Site
  • IPSec Encryption: 3DES, AES
  • IPSec Authentication: MD5, SHA-1, SHA2-256
  • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPSec Protocols: ESP
  • IPSec NAT Traversal
  • PPTP VPN Server / Client
  • PPTP Encrpytion: MPPE 40-bit, 128-bit
  • PPTP/L2TP Authentication: MS-CHAPv1/2
  • L2TP Client-to-Site
  • OpenVPN® Server / Client
  • OpenVPN® Encryption: AES, DES
  • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
  • OpenVPN® Certificate: RSA
  • WireGuard®
Physical
  • Unit Dimension: 95 x 95 x 193 mm
  • Unit Weight: 565g
  • Entire Package Dimension: 186 x 127 x 105 mm
  • Entire Package Weight: 920g
Package Content GCC6010W, Universal Power Supply, Network Cable, Quick Installation Guide



Datasheet Download
