Description

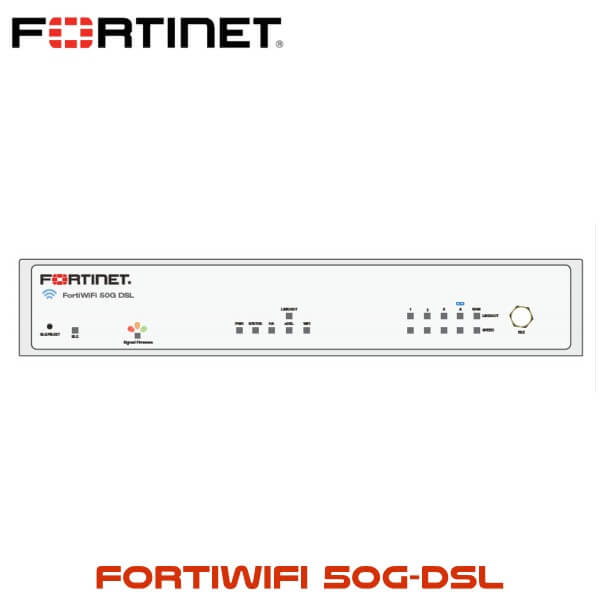

FortiWiFi50G DSL Next-Generation Firewall Ghana
The FortiWiFi50G DSL Ghana is designed to empower distributed enterprise networks and transform WAN architectures with security-driven solutions, no matter the scale. Leveraging advanced AI/ML-powered FortiGuard services and the integrated Fortinet Security Fabric platform, this solution provides end-to-end, automated, and synchronized threat protection across diverse use cases. As the industry’s first Next-Generation Firewall (NGFW) to feature built-in SD-WAN and Zero Trust Network Access (ZTNA) enforcement under a unified operating system, the FortiWiFi50G DSL Ghana ensures streamlined, secure access and optimized application delivery.
The FortiWiFi50G DSL Ghana offers an extensive set of features designed to enhance network protection, wireless performance, and ease of management:
Integrated Next-Generation Firewall (NGFW):
Protects against a wide range of cyber threats, including malware, ransomware, spyware, and botnets, ensuring robust network defense.
Wi-Fi 6 Technology for Faster Connectivity:
Supports the latest Wi-Fi 6 standards, delivering faster speeds, improved reliability, and low-latency performance for modern enterprise demands.
Dual-Band Operation:
Utilizes both 2.4 GHz and 5 GHz frequency bands, providing optimal wireless coverage and ensuring seamless connectivity across devices.
Beamforming for Enhanced Range and Performance:
Focuses Wi-Fi signals toward connected devices, maximizing network range and signal strength for a better user experience.
MU-MIMO Technology:
Enables simultaneous connections across multiple devices, resulting in higher speeds and improved network efficiency, even in high-demand environments.
Centralized Management through FortiCloud:
Easily manage and monitor the device through Fortinet’s FortiCloud platform, providing centralized visibility and control over network infrastructure.
User-Friendly Interface for Simplified Management:
Includes an intuitive web-based interface for hassle-free configuration, making it easy for administrators to deploy, adjust, and monitor the network.
The FortiWiFi50G DSL Ghana ensures consistent, seamless access to applications through automated control and verification processes. Whether deployed at a single branch or across multiple distributed locations, it delivers uninterrupted performance while adhering to the highest security standards. With this all-in-one solution, enterprises can experience enhanced productivity, reliable connectivity, and robust threat protection—all managed through a streamlined interface and fortified by Fortinet’s unified OS.
This powerful combination of security, performance, and ease of use makes the FortiWiFi50G DSL Ghana a top choice for organizations seeking to build resilient, future-proof networks that align with evolving business needs.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 1 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| DSL RJ11 Port | 1 |
| USB Ports | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Cellular Modem | — |
| Antenna Ports (SMA) | 3 |
| SIM Slots (Nano SIM) | — |
| Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.25 Gbps |
| NGFW Throughput | 1.25 Gbps |
| Threat Protection Throughput | 1.1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.42 μs |
| Firewall Throughput (Packets Per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 720 000 |
| New Sessions/Second (TCP) | 85 000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
| Application Control Throughput (HTTP 64K) | 2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
| Virtual Domains (Default / Maximum) | 5/5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 216 x 160 |
| Weight | 2.2 lbs (1.0 kg) |
| Form Factor (supports EIA/non-EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 3A |
| Power Required | |
| Maximum Current | 100V/0.3A, 240V/0.15A |
| Power Consumption (Average / Maximum) | 17.74 W / 19.0 W |
| Heat Dissipation | 64.79 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ISED, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
| xDSL Modem Supported Mode | |
| vDSL2 | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| G.DMT | Yes |
| T1.413 | Yes |
| G.Lite | Yes |
| xDSL Modem Supported Type | |
| Annex A, B, I, J, M, L | Yes |
| Radio Specifications | |
| Multiple User (MU) MIMO | 2 x 2 |
| Maximum Wi-Fi Speeds | 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
| Maximum Tx Power | 21.0 dBm per chain @ 2.4GHz, 19.5 dBm per chain @ 5GHz |
| 5G Modem | |
| Regions | — |
| Modem Model | — |
| LTE Category | — |
| 5G Bands | — |
| LTE Bands | — |
| UMTS/HSPA+ | — |
| WCDMA | — |
| CDMA 1xRTT/EV-DO Rev A | — |
| GSM/GPRS/EDGE | — |
| Module Certifications | — |
| Diversity | — |
| MIMO | — |
| GNSS Bias | — |
