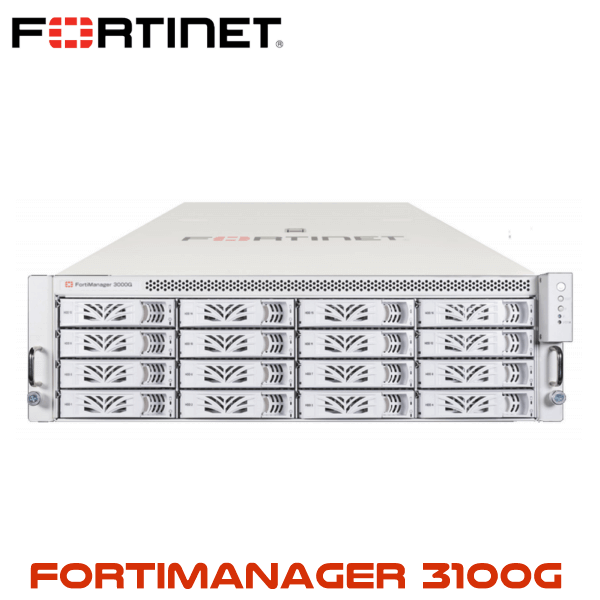

FortiManager3100G Network Management Platform Ghana
The Fortinet FortiManager3100G Ghana serves as a robust centralized management platform designed to streamline and enhance the administration of extensive Fortinet security deployments. Tailored for high-performance environments, the FortiManager3100G enables network administrators to navigate complex infrastructures with increased efficiency and ease.
With its unified interface—often described as a “single pane of glass”—the platform offers comprehensive visibility and centralized control across the entire network. This functionality not only simplifies the provisioning of security devices and policies but also incorporates advanced automation tools that optimize management processes, thereby minimizing the need for manual intervention. As a result, the FortiManager3100G empowers organizations to establish a more secure, agile, and scalable network infrastructure.
One of the standout features of the FortiManager3100G Ghana is its scalability, which facilitates the efficient management of numerous Fortinet devices and Virtual Domain (VDOM) instances. Moreover, it boasts advanced reporting capabilities, producing detailed reports on network security, performance, and compliance. The platform also seamlessly integrates with other Fortinet security solutions, such as FortiAnalyzer and FortiGate, enabling a cohesive and unified security management approach across the entire Fortinet product ecosystem.
Specifications:
Capacity and Performance | |
Devices/VDOMs (Default) | 4000 |
Devices/VDOMs (Maximum) | 8000 |
Sustained Log Rates | 150 |
GB/ day | 10 |
Hardware Specifications | |
Storage Capacity | 64 TB (16 x 4TB) |
Usable Storage (after RAID) | 56 TB |
RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
Default RAID Level | 50 |
Hardware Form Factor | 3 RU Rackmount |
Total Interfaces | 2 x GbE RJ45 ports, 2x 25GbE SFP28 ports |
Console Port | DB‑9 |
Removable Hard Drives | ✓ |
Redundant Hot Swap Power Supplies | ✓ |
Trusted Platform Module (TPM) | ✓ |
Dimensions | |
Height x Width x Length (inches) | 5.2 x 17.2 x 25.5 |
Height x Width x Length (cm) | 13.0 x 44.0 x 65.0 |
Weight | 69.6 lbs (31.57 kg) |
Environment | |
AC Power Supply | 100‑127V~/10A, 200‑240V~/5A Hz |
Power Consumption (Average / Maximum) | 395 W / 510 W |
Heat Dissipation | 1740.19 BTU/h |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Temperature | ‑40°F to 158°F (‑20°C to 70°C) |
Humidity | 5% to 95% non-condensing |
Forced Airflow | Front to Back |
Operating Altitude | Up to 13 123 ft (4000 m) |
Compliance | |
Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
