Description

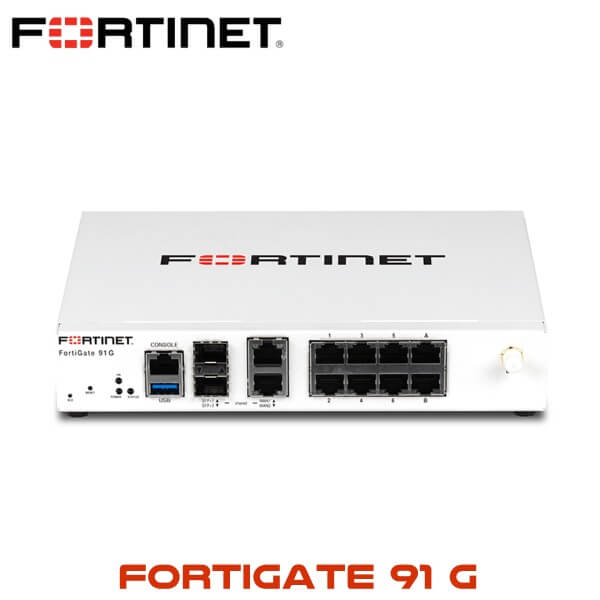

Fortigate91G Next-Generation Firewall Ghana
The Fortigate91G Ghana Next-Generation Firewall is specifically designed to empower distributed enterprise sites by building security-driven networks and revolutionizing WAN architecture across operations of any scale. Equipped with an extensive suite of AI/ML-powered FortiGuard security services and seamlessly integrated with the Security Fabric platform, the Fortigate91G Ghana provides automated, coordinated, and end-to-end threat protection tailored to various deployment scenarios.
What sets FortiGate apart is its industry-first combination of integrated SD-WAN and Zero Trust Network Access (ZTNA) enforcement within a single Next-Generation Firewall (NGFW) solution, all managed through one unified operating system. The Fortigate91G Ghana simplifies security management by automatically regulating, authenticating, and facilitating user access to applications, ensuring a consistent, optimized, and uninterrupted user experience across the network. Whether for remote offices or complex enterprise environments, this powerful firewall solution enhances security without compromising on performance or connectivity.
Specifications
| Hardware Specifications | |
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs | 2 |
| GE RJ45 Internal Ports | 8 |
| Wireless Interface | – |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1 x 120 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 4.5 Gbps |
| NGFW Throughput | 2.5 Gbps |
| Threat Protection Throughput | 2.2 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 28 / 28 / 27.9 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.23 μs |
| Firewall Throughput (Packets Per Second) | 41.85 Mpps |
| Concurrent Sessions (TCP) | 1.5 M |
| New Sessions/Second (TCP) | 124 000 |
| Firewall Policies | 5000 |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 1.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 2.6 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 300 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 390 000 |
| Application Control Throughput (HTTP 64K) | 6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) | 23.6 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.47 lbs (1.12 kg) |
| Form Factor | Desktop |
| Operating Environment and Certifications | |
| Input Rating | 12V DC, 5A (dual redundancy optional) |
| Power Required (Redundancy Optional) | Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Maximum Current | 115Vac/0.4A, 230Vac/0.2A |
| Power Consumption (Average / Maximum) | 22.4 W / 23.5 W |
| Heat Dissipation | 80.135 BTU/hr |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Storage Temperature | -31°–158°F (-35°–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 21.73 dBA |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
