Fortigate901G-DC Ghana



Fortigate901G-DC Ghana

The Fortigate901G-DC Ghana features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys.

Category:

Description

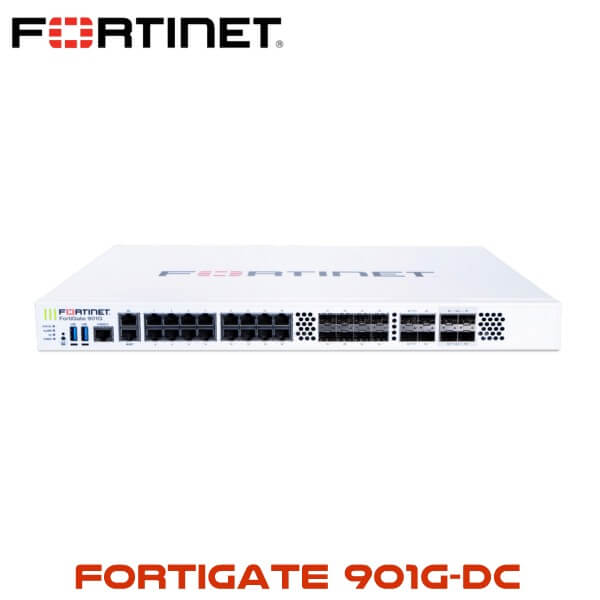

Fortigate901G-DC Next-Generation Firewall Ghana

The Fortigate901G-DC Ghana Next-Generation Firewall (NGFW) leverages state-of-the-art AI-driven security and machine learning (ML) technologies to deliver scalable, high-performance threat protection. With comprehensive network visibility, it empowers organizations to proactively monitor applications, users, and devices, detecting potential risks early to prevent them from escalating into critical threats.

This firewall seamlessly integrates into Fortinet’s Security Fabric platform, providing a broad and unified security solution. Its AI/ML-powered features offer deep, automated protection across multiple layers of the network, including advanced edge defenses, web filtering, content inspection, and endpoint security. The Fortigate901G-DC ensures end-to-end coverage for hybrid IT environments through intelligent network segmentation and secure SD-WAN capabilities, simplifying network management while mitigating risks.

The solution also incorporates Universal Zero Trust Network Access (ZTNA), applying strict identity verification and authentication measures to regulate access to applications. This prevents lateral movement attacks by ensuring only authorized users can access specific resources, enhancing the overall security posture.

Furthermore, the Fortigate901G-DC offers high-speed threat protection and SSL decryption to secure traffic at the network’s edge without sacrificing performance. Its optimized architecture makes it ideal for organizations seeking fast, reliable, and uncompromising security solutions, ensuring high performance and robust protection for even the most demanding network environments.

Hardware Features

Trusted Platform Module (TPM)

The Fortigate901G-DC Ghana features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

Access Layer Security

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Specifications

Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots 4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots 4
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated GE RJ45 Slots 16
2.5 GE / GE HA Port 1
GE Management Port 1
USB Ports (Client / Server) 2/2
Console Port 1
Onboard Storage 2x 480 GB
Trusted Platform Module (TPM) Yes
Included Transceivers 2x SFP SX
System Performance — Enterprise Traffic Mix
IPS Throughput 26 Gbps
NGFW Throughput 22 Gbps
Threat Protection Throughput 20 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 164 / 163 / 153 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP 164 / 163 / 153 Gbps
Firewall Latency (64 byte, UDP) 3.78 / 2.5 μs
Firewall Throughput (Packet per Second) 229.5 Mpps
Concurrent Sessions (TCP) 16 Million
New Sessions/Second (TCP) 720 000
Firewall Policies 10 000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2000
Client-to-Gateway IPsec VPN Tunnels 50 000
SSL-VPN Throughput 10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10 000
SSL Inspection Throughput (IPS, avg HTTPS) 16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 18 000
SSL Inspection Concurrent Session (IPS, avg HTTPS) 1.6 Million
Application Control Throughput (HTTP 64K) 74.8 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 96
Maximum Number of FortiAPs (Total / Tunnel) 1024 / 512
Maximum Number of FortiTokens 5000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.5 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight (maximum) 16.53 lbs (7.5 kg)
Form Factor (supports EIA/non-EIA standards) Rack Mount, 1RU
AC Power Supply 100–240VAC, 50/60 Hz
AC Current (Maximum) 6A@100VAC
DC Power Supply 48-60VDC
DC Current (Maximum) 7A@48V
Power Consumption (Average / Maximum) 144 W / 264 W
Heat Dissipation 902 BTU/h
Power Supply Efficiency Rating 80Plus Compliant
Redundant Power Supplies (Hot Swappable) Yes (comes with 2PSU default)
Operating Environment and Certifications
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10%–90% non-condensing
Noise Level 58 dBA
Forced Airflow Side and Front to Back
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6
