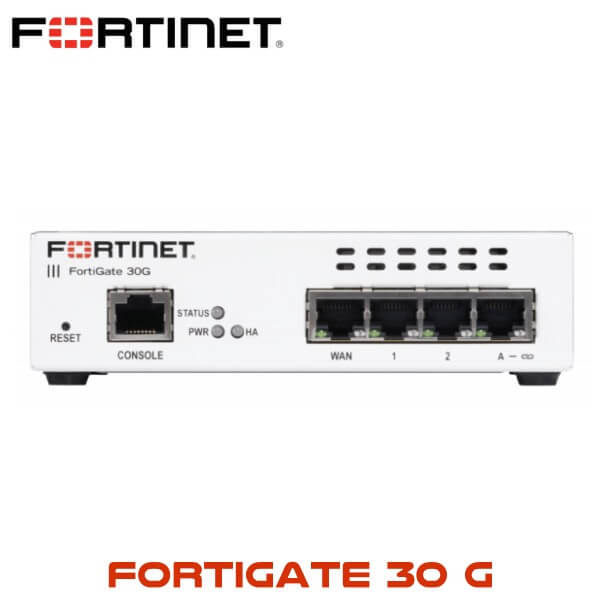

Fortigate30G Ghana



Fortigate30G Ghana

The Fortigate30G Ghana seamlessly integrates firewalling, SD-WAN, and security into a single appliance, making it an ideal solution for establishing security-driven networks at distributed enterprise locations and transforming WAN architecture across various scales.

Category:

Description

FortiGate30G Next Generation Firewall Ghana

The Fortigate30G Ghana seamlessly integrates firewalling, SD-WAN, and security into a single appliance, making it an ideal solution for establishing security-driven networks at distributed enterprise locations and transforming WAN architecture across various scales. This device operates on the FortiOS operating system, featuring the industry’s first convergence of networking and security capabilities. This convergence empowers organizations to effectively safeguard today’s dynamic digital infrastructures.

As a pivotal component of the FortiGate Security Fabric platform, the FortiGate Next-Generation Firewall (NGFW) collaborates effortlessly with FortiGuard’s AI-powered Security Services to provide coordinated, automated, and comprehensive threat protection across all use cases in real-time. The Fortigate30G Ghana leverages patented SD-WAN-based ASIC technology, delivering superior performance compared to traditional CPU architectures, while simultaneously reducing costs and power consumption. Its application-specific design, combined with an embedded multi-core processor, accelerates the convergence of networking and security functions, optimizing secure connections and enhancing user experiences at branch locations.

The Fortigate30G Ghana is equipped with a suite of key features aimed at bolstering network security and performance. Its Next-Generation Firewall (NGFW) delivers extensive protection against a wide array of cyber threats, including malware, viruses, spyware, and botnets. The device supports SD-WAN functionality, facilitating flexible and efficient WAN connectivity, which helps organizations optimize network performance while minimizing costs. Built on FortiGate’s patented Security Fabric architecture, the Fortigate30G ensures high-performance security without sacrificing efficiency. Additionally, it employs AI-driven security measures to detect and mitigate advanced threats in real time.

The user-friendly, web-based interface simplifies configuration and management, enhancing usability for network administrators. The Fortigate30G is also highly scalable, allowing it to adapt to evolving network demands. Furthermore, it offers cloud-based management capabilities, enabling centralized monitoring and control of distributed networks.

Specifications:

Hardware Specifications
Hardware Accelerated GE WAN Port 1
Hardware Accelerated GE RJ45 Ports 2
Hardware Accelerated GE RJ45 FortiLink Port (Default) 1
USB Ports
Console Port (RJ45) 1
Trusted Platform Module (TPM)
Bluetooth Low Energy (BLE)
Wireless Interface
System Performance* — Enterprise Traffic Mix
IPS Throughput 800 Mbps
NGFW Throughput 570 Mbps
Threat Protection Throughput 500 Mbps
System Performance
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
4/ 4/ 3.9 Gbps
IPv6 Firewall Throughput
(1518 / 512 / 86 byte, UDP)
4/ 4/ 3.9 Gbps
Firewall Latency
(64 byte UDP packets)
2.87 μs
Firewall Throughput
(Packets Per Second)
5.85 Mpps
Concurrent Sessions (TCP) 600,000
New Sessions/Second (TCP) 30,000
Firewall Policies 2000
IPsec VPN Throughput (512 byte) 3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
SSL Inspection Throughput
(IPS, avg. HTTPS)
400 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 260
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput (HTTP 64K) 830 Mbps
CAPWAP Throughput (HTTP 64K) TBA Gbps
Virtual Domains (Default / Maximum) Not Supported
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 16/8
Maximum Number of FortiTokens 500
High Availability Configurations Active-Passive, Active-Active
Dimensions
Height x Width x Length (inches) 1.6 x 5.6 x 6.3
Height x Width x Length (mm) 40.5 x 142 x 160
Weight 1.3 lbs (0.6 kg)
Rack Mount Type NA
Wall Mountable Optional
Form Factor (supports EIA/non‑EIA standards) Desktop
Operating Environment and Certifications
Power Rating 12VDC, 2A
Power Source Powered by external DC power adapter 100-240V AC, 50/60 Hz
Maximum Current 100V/0.11A, 240V/0.055A
Power Consumption (Average / Maximum) 6.8 W / 8.2 W
Heat Dissipation 28 BTU/hr
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -31° to 158°F (-35° to 70°C)
Humidity 20% to 90% non-condensing
Noise Level N/A
Operating Altitude 10 000 ft (3048 m)
Compliance FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
Certifications USGv6/IPv6

Datasheet Download
