Description

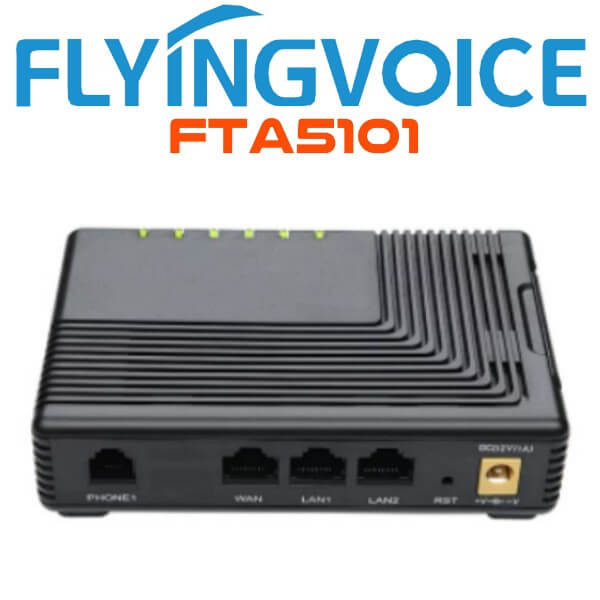

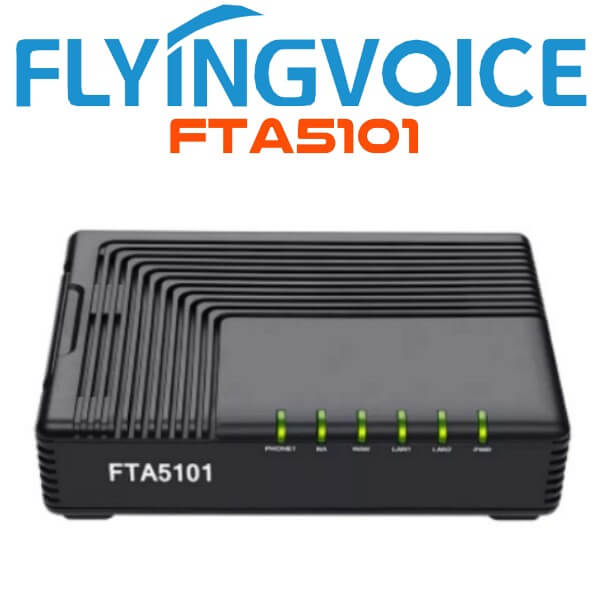

Flyingvoice FTA5101 VoIP Adapter Ghana

The Flyingvoice FTA5101 VoIP Adapter Ghana is a portable high-performance 1 FXS port adapter with rich functions, easy deployment and maintenance. It is an ideal choice for small business or home voice solutions. Featuring one FXS port, one LAN port and one WAN port, FTA5101 VoIP Adapter is one of the most popular VoIP ATAs researched and produced by FlyingVoice. This product can not only provide one SIP line for users to make call, but also it is a wire-speed NAT router, make you enjoy easy network environment. What’s more, FTA5101 support T.38 real time FAX and T.30 FAX with G.711.FTA5101 is a stand-alone device, which requires no PC to make Internet calls. This ATA guarantees clear and reliable voice quality on Internet, which is fully compatible with SIP industry standard and able to interoperate with many other SIP devices and software on the market.

The Flyingvoice FTA5101 VoIP Adapter Ghana, 1 FXS Analogue Telephone Adapter product, allows customers to register to different SIP Proxy server, IP PBX and establish 1 VoIP call for more flexibility in the voice communication. FTA5101 VoIP Adapter’s compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the power of IP voice and data connectivity. The Flyingvoice FTA5101 is based on SIP V2.0 standard and compatibility with most service providers.TR069 CPE management & monitoring protocols and a base stand for vertical positioning.

Key Features

All-in One Adapter

With 1 FXS port, FTA5101 VoIP Adapter Ghana can provide users with 1 SIP line calls and support high-performance NAT routing function. It also supports T.38, T.30 and G.711 fax standard, no additional purchase costs

Stand-alone Device

Flyingvoice FTA5101 VoIP Adapter Ghana is a stand-alone device, which requires no PC to make convenient and flexible Internet calls.

Broad Compatibility

The FTA5101 is based on SIP V2 and compatible with most service providers, which brings great convenience when deploying VoIP network.

Reliable Stability

Flyingvoice FTA5101 VoIP Adapter Ghana has been registered to different SIP proxy servers and been tested for stable operation and excellent performance. It is a reliable choice for creating voice solutions.

Easy Management

The Flyingvoice FTA5101 VoIP Adapter Ghana is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management

Technical Specifications

VoIP SoC

• CPU: RT5350

Flash

• 16MB Flash

RAM

• 32MB SDRAM

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz
• DC Output: 12V, 1A

Operating System

• Linux 2.6.21

I/O Interfaces

• 3 RJ-45 for 10/100Ethernet Ports
• 2 RJ-11 for FXS Port

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• 711(A/u), PAMS>4.3
• 729A/AB, PAMS>4.0
• 30 FAX with G.711
• Real time FAX over IP via T.38(Phone 2 port only)
• Adaptive Jitter Buffer
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation

Management

• Firmware Upgradeable
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• Support IPv6
• SNMPv2
• TR069

Protocols

• SIP V2 (RFC 3261,3262,3263,3264)
• Backward Compatible with RFC2543
• Session Timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889 and RFC1890)
• NAPTR for SIP URI Lookup (RFC2915)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• PPTP/L2TP VPN
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provisioning
• DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

• NAT/NAPT Router function
• MAC Address Cloning
• DHCP Server
• PPTP/L2TP VPN
• PPPoE
• SIP proxy redundancy
• Dynamic via DNS SRV, A records
• NAT Traversal by STUN
• DMZ
• QoS with Layer 3
• DHCP Client and DHCP Server
• IP conflict detection

Call Features

• 3-way Conference
• Music on hold
• DTMF mode: In-band, RFC2833 and SIP INFO
• Call Hold
• Call Forwarding
• Call Mute
• Call Transfer
• Call Waiting
• Speed Dial
• Caller ID and CWCID
• Hotline
• Real time fax over IP via T.38
• 30 FAX with G.711
• Dial Plan
• Black List
• Call Log

SIZE & Weight

• 120mm(L)x80mm(W)x32.5mm(H)
• 119g (N.W)
