Description

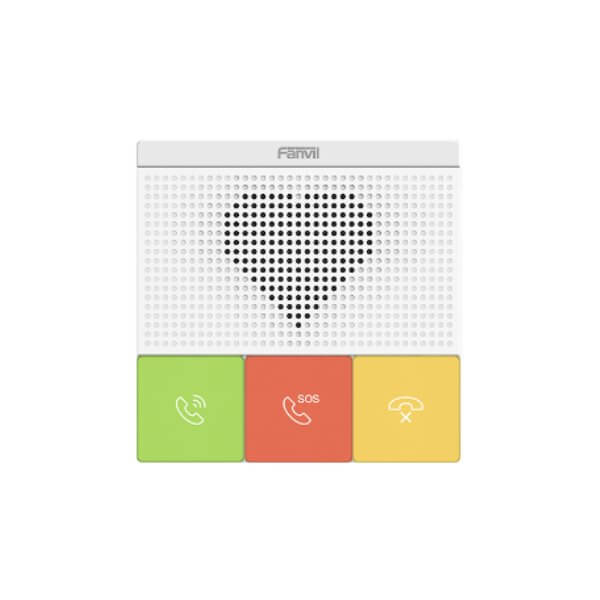

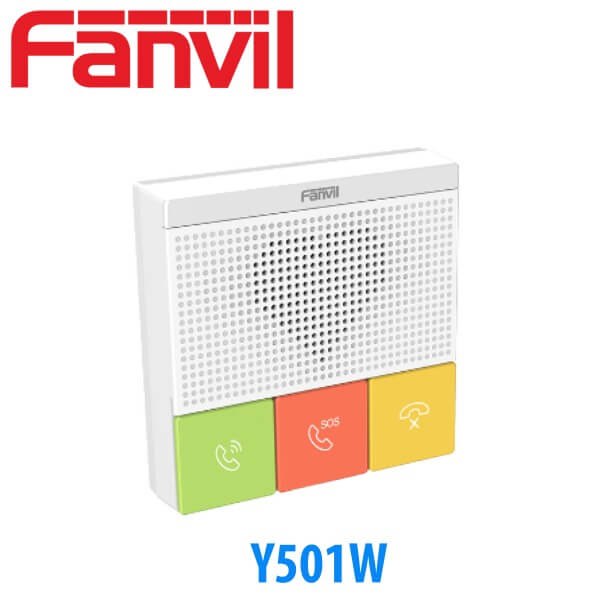

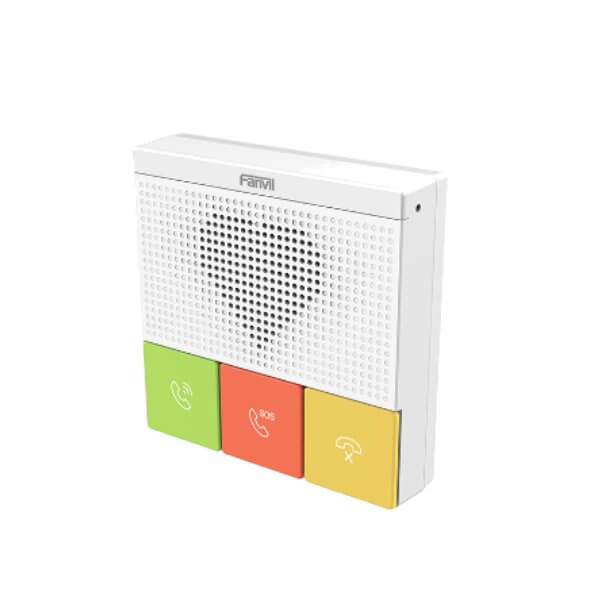

Fanvil Y501W SIP Intercom Ghana

The Fanvil Y501W Ghana SIP healthcare intercoms embody the pinnacle of communication technology, meticulously designed for various settings such as home-based care, nursing houses, and diverse indoor applications. Beyond simple communication, they ensure safety, enabling emergency communication, security protection, and seamless broadcasting within healthcare environments.At the core of the Y501W series are advanced features crafted to enhance user experience and efficacy. High-definition audio capabilities ensure clear conversations, fostering effective communication even in critical situations. Supporting up to 2 SIP accounts per device provides flexibility and scalability to meet diverse communication needs within healthcare settings.

Additionally, the Y501W intercoms feature detachable DSS (Dynamic Screen Switch) keys, allowing users to customize control over their communication preferences, enhancing operational efficiency. Engineered to withstand healthcare environments, these intercoms boast an IP54 waterproof and dustproof rating, ensuring uninterrupted operation in challenging conditions. Built-in 2.4G & 5G Wi-Fi connectivity enhances versatility, facilitating integration into modern healthcare infrastructures.

Installation options include standard 86 box embedding and wall mountability, ensuring compatibility with diverse architectural layouts, and allowing healthcare facilities to tailor their communication infrastructure to specific needs.The Fanvil Y501W Ghana SIP healthcare intercoms represent a blend of cutting-edge technology and thoughtful design, offering a timely healthcare communication experience that surpasses conventional boundaries. Whether facilitating patient care, emergency response, or collaboration among healthcare professionals, these intercoms are indispensable allies in superior healthcare delivery.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501/Y501-E)
  • 1.42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501/Y501-E)
  • 1.99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT : 3.7kg
• G.W/CNT : 3.98kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
