Fanvil Y501W-E Ghana

The Fanvil Y501W-E Ghana SIP healthcare intercoms are purpose-built for home-based care, nursing homes, and various indoor applications, providing reliability and functionality essential for emergency communication, security enhancement, and broadcasting in healthcare settings.

Description

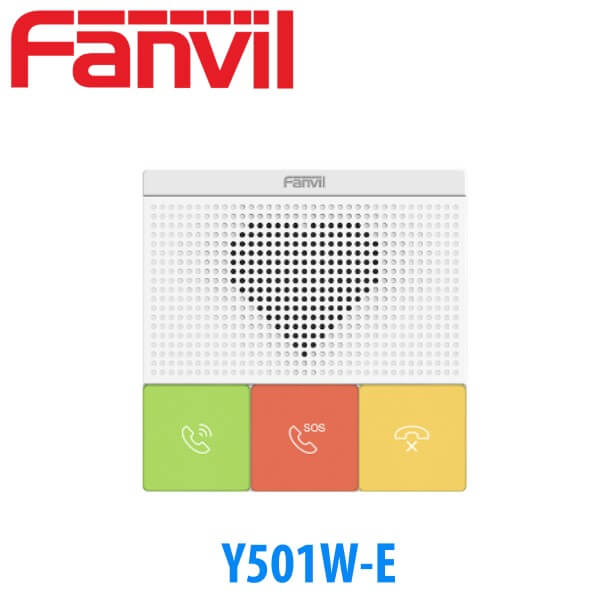

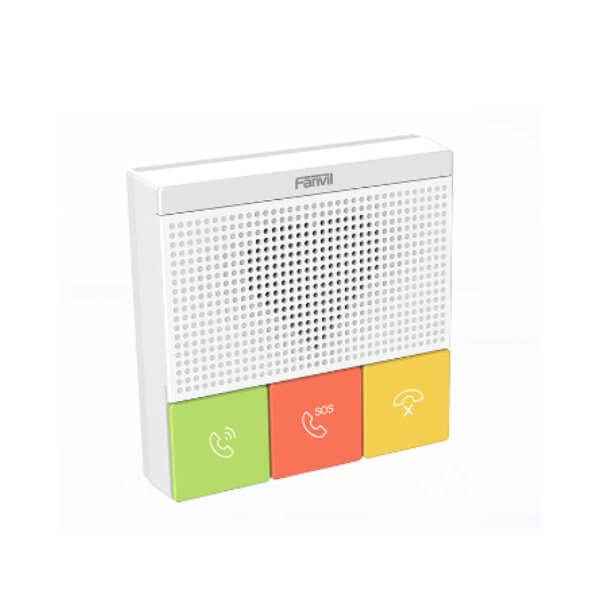

Fanvil Y501W-E SIP Intercom Ghana

A standout feature of the Fanvil Y501W-E Ghana intercoms is their high-definition audio capabilities, ensuring clear communication in critical situations. Supporting up to 2 SIP accounts, users can efficiently manage multiple communication lines. Detachable DSS keys offer enhanced customization options to meet specific requirements. Additionally, the IP54 waterproof and dustproof rating ensures durability against environmental elements, while built-in 2.4G and 5G Wi-Fi connectivity enhances integration into modern networks.

The Y501 series provides flexible installation options, including standard 86 box embedding and wall mounting, facilitating deployment in diverse healthcare settings. Whether in private residences or nursing facilities, these intercoms ensure timely and reliable healthcare communication for patients and caregivers alike. The Fanvil Y501W-E Ghana SIP healthcare intercoms integrate cutting-edge technology with practical design, meeting the evolving needs of healthcare environments with unwavering reliability and performance.

Highlights

Support specific 433MHz wireless button
Features 2 SIP accounts and 3 antibacterial material detachable function buttons
Support HD audio with codec G.722 and Opus
Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
Built-in 1 short circuit input/output interface
IP54 waterproof and dustproof
Support PoE power supply
Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

2 SIP Lines
Auto answer
HD Voice
PoE Enabled
Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
Intercom function
External Power Supply (Optional)

Intercom Function

Support customized DSS keys
Support wireless button (Optional)
Network Time Synchronization
Built-in Wi-Fi
- 4G, 802.11 b/g/n
- 5G, 802.11 a/n
Action URL / Active URL

Audio

Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
Wideband Codec : G.722, Opus
Duplex intercom with Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

Physical : 10/100 Mbps Ethernet
WIFI : 2.4G & 5G (Y501W/Y501W-E)
IP Mode : IPv4/IPv6/IPv4&IPv6
IP Configuration : Static / DHCP / PPPoE
Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
VPN : L2TP / OpenVPN
VLAN
LLDP
QoS

Protocols

0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Physical Specifications

Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
Up to 10 wireless buttons supported
Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
1 RJ45 port
1 short circuit input interface
1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
Power : DC12V/1A or POE
Power Consumption (Adapter)：
- 94W~1.98W(Y501/Y501-E)
- 42W~2.35W(Y501W/Y501W-E)
Power Consumption (PoE)：
- 48W~2.37W(Y501/Y501-E)
- 99W~3.05W(Y501W/Y501W-E)
Housing material : ABS
433 wireless button specification：
- communication mode：FSK
- working frequency：433MHZ
- communication protocol：1
Installation : Indoor installation
- Standard 86 Box Embedded
- Wall Mountable
Color : White
working temperature : -10 ~50 °C
Storage temperature : -20 ~ 50 °C
Relative humidity : 10% – 90%
W/CNT : 3.7kg
W/CNT : 3.98kg
Equipment Dimension :
- 56 x 87.56 x 30mm (Wall Mountable)
- 56 x 87.56 x 21.5mm (86 Box Embedded)
Packing Dimension : 95x106x40mm
Outer CTN Dimension : 224x220x210mm (20 pcs)
