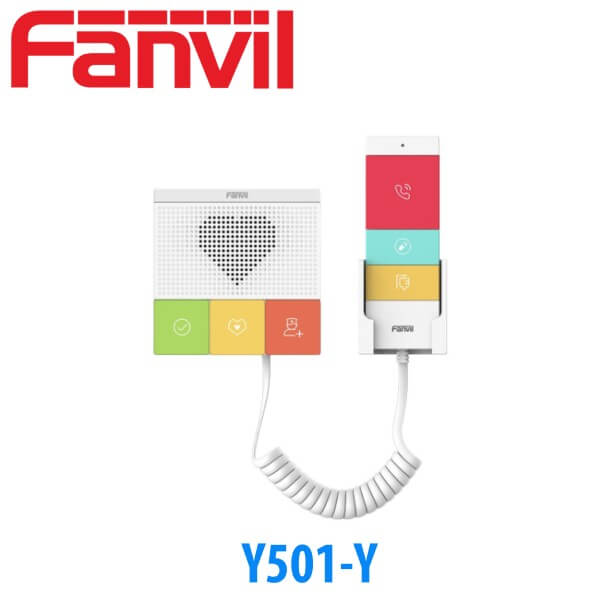

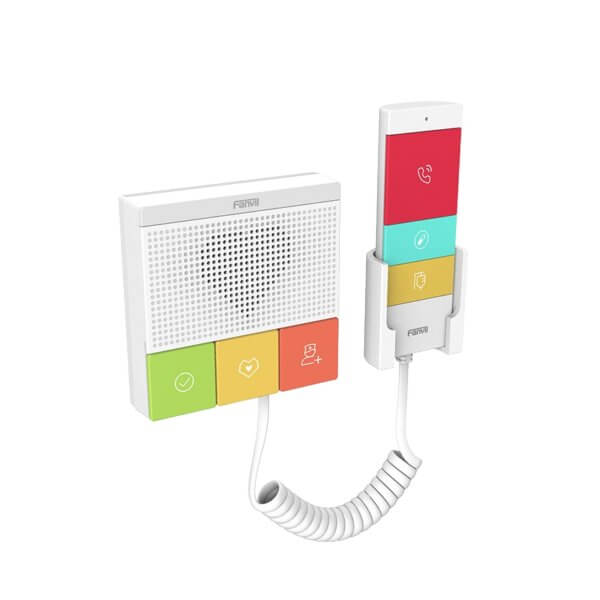

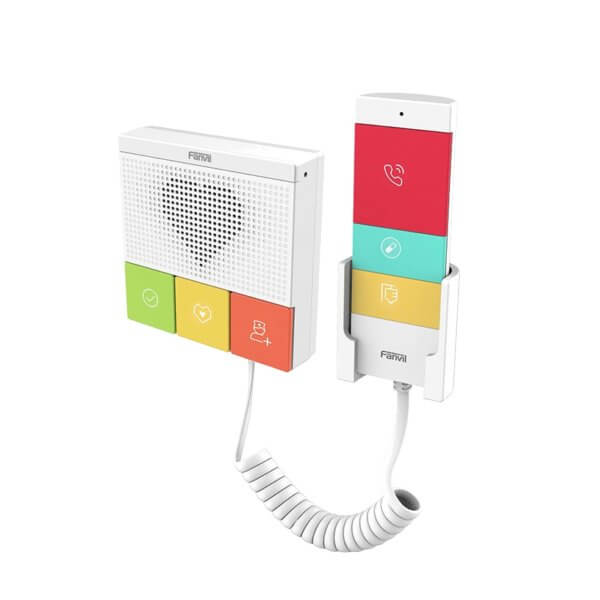

Fanvil Y501-Y SIP Intercom Ghana

The Fanvil Y501-Y Ghana SIP healthcare intercoms offer advanced solutions tailored for diverse healthcare environments, including home-based care, nursing houses, and other indoor settings where reliable communication and security are vital. These intercoms support essential functions like emergency communication, security protection, and broadcasting, enhancing care standards and safety.

Precision-crafted for efficiency, the Fanvil Y501-Y Ghana boasts numerous features enhancing user experience and operational effectiveness. Noteworthy attributes include high-definition audio, support for up to 2 SIP accounts for seamless connectivity, and detachable DSS keys for customizable functionality. With an IP54 waterproof and dustproof rating, these intercoms endure various conditions with durability.The Y501-Y series incorporates built-in 2.4G & 5G Wi-Fi (Y501W-Y/Y501W-Y-E) for flexible connectivity, ensuring uninterrupted communication even where wired connections are challenging. Offering versatile installation modes like standard 86 box embedding and wall mounting, these intercoms seamlessly integrate into diverse environments, meeting specific needs and requirements.

Fanvil Y501-Y Ghana SIP healthcare intercoms epitomize innovation and functionality in healthcare communication technology. With robust features, flexible installation options, and a commitment to quality, they revolutionize healthcare communication, setting a new standard for patient care and safety excellence.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W-Y/Y501W-Y-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501-Y/Y501-Y-E)
  • 1.42W~2.35W(Y501W-Y/Y501W-Y-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501-Y/Y501-Y-E)
  • 1.99W~3.05W(Y501W-Y/Y501W-Y-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT：3.97kg
• G.W/CNT：4.4 kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 234x168x44 mm
• Outer CTN Dimension : 356x245x254mm (10pcs)
