Description

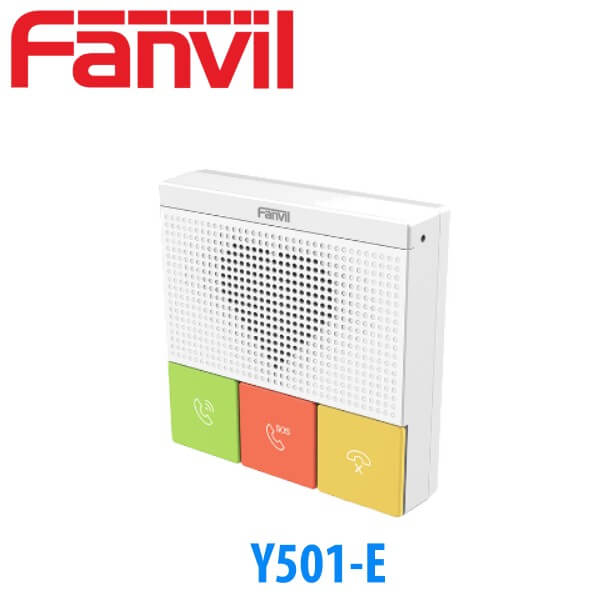

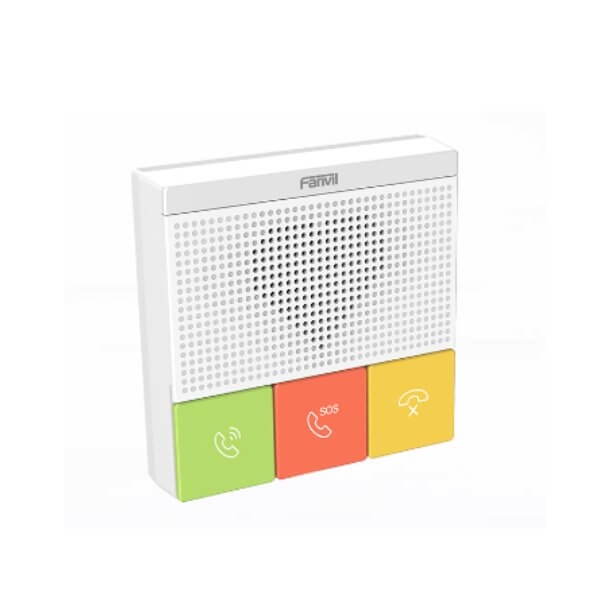

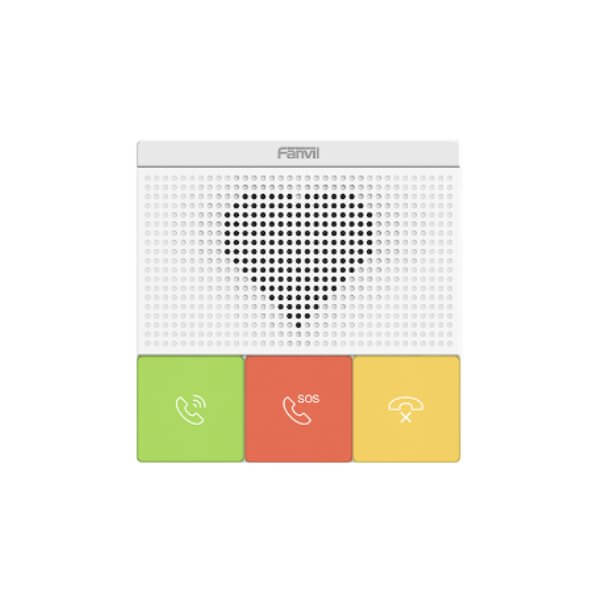

Fanvil Y501-E SIP Intercom Ghana

The Fanvil Y501-E Ghana SIP healthcare intercoms epitomize tailored design for home-based care, nursing homes, and indoor applications. Engineered for emergency communication, security, and broadcasting, they cater to diverse healthcare needs. High-definition audio ensures clear communication in critical situations. Supporting 2 SIP accounts, they manage communication protocols efficiently.

Detachable DSS keys enhance usability, allowing customizable configurations. IP54 waterproof and dustproof rating ensures durability, crucial in challenging environments. The Fanvil Y501-E includes built-in 2.4G & 5G Wi-Fi (Y501W/Y501W-E), enabling seamless connectivity and extending functionality across networks in healthcare scenarios.

Installation flexibility includes standard 86 box embedded and wall mountable configurations, ensuring compatibility with diverse layouts. These intercoms redefine healthcare communication, blending advanced features, durability, and flexibility. With robust design and comprehensive functionality, the Fanvil Y501-E Ghana deliver timely, reliable healthcare communication for modern environments.

Highlights

• Support specific 433MHz wireless button
• Features 2 SIP accounts and 3 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W/Y501W-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501/Y501W) and 86 box embedded installation(Y501-E/Y501W-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W/Y501W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W/Y501W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501 Series : 3 DSS buttons (Speed dial, Emergency, Cancel)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501/Y501-E)
  • 1.42W~2.35W(Y501W/Y501W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501/Y501-E)
  • 1.99W~3.05W(Y501W/Y501W-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT : 3.7kg
• G.W/CNT : 3.98kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm (20 pcs)
