Description

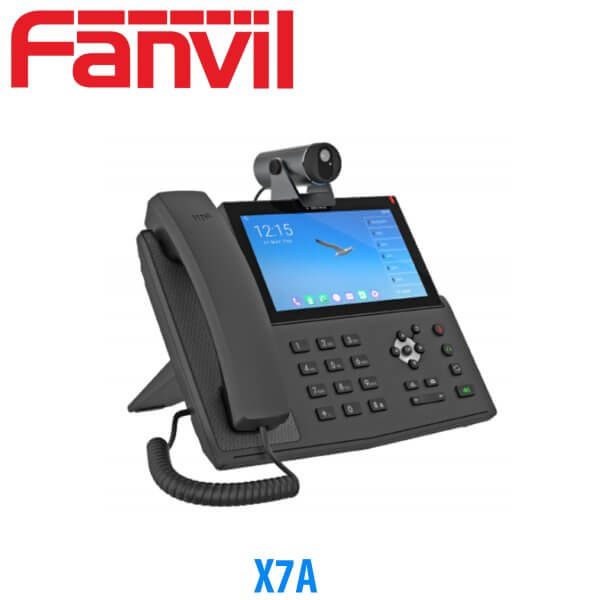

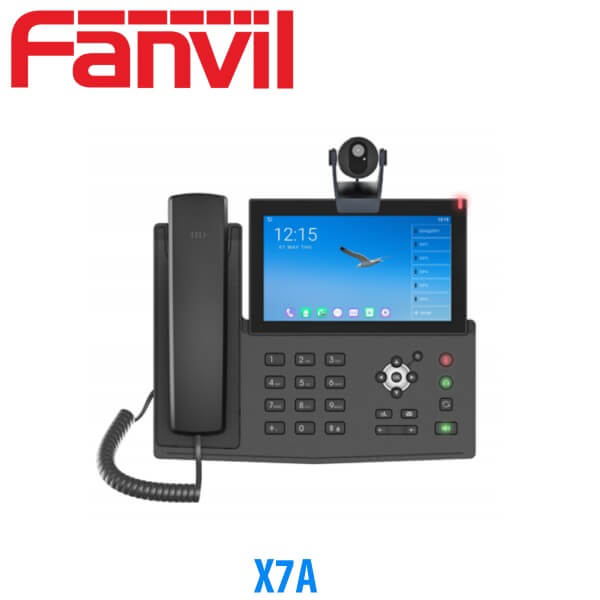

Fanvil X7A Android IP Phone with Camera Accra, Ghana
The Fanvil X7A Android IP Phone with Camera Ghana is equipped with 20 SIP lines for maximum efficiency. It comes with dual Gigabit Ethernet ports which are integrated with Power over Ethernet to allow for easy remote configurations and auto-provisioning. For audio clarity, the IP Phone comes with a built-in Harman speaker which delivers crystal clear sounds. The Fanvil X7A Android IP Phone Accra, Ghana offers an easy installation, thanks to its adjustable stand which offers two different angles of 40° and 50°. It is compliant with various SIP standards and is therefore widely compatible with major platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Fanvil X7A Android IP Phone with Camera Key Features :
- 20 SIP lines, 5-way audio conference, hotspot
- Support an external Fanvil USB camera (optional).
- 112 one-touch DSS keys on 7″ capacity colour touch screen
- HD audio with Harman speaker
- Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
- Support video codec H.264 and 3-way video conference.
- Dual Gigabit ports integrated PoE
- Stand with 2 adjustable angles of 40 and 50 degrees
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
- Wide Compatibility
- The Fanvil X7A Android IP Phone Accra, Ghana is compliant with various SIP standards and is therefore widely compatible with major platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
- Superb Quality Audio
- Fanvil X7A Android IP Phone Accra, Ghana is equipped with a robust Harman speaker which delivers outstanding audio clarity to its user. This ensures that you can clearly hear and be heard during voice communications.
- Easy Installation

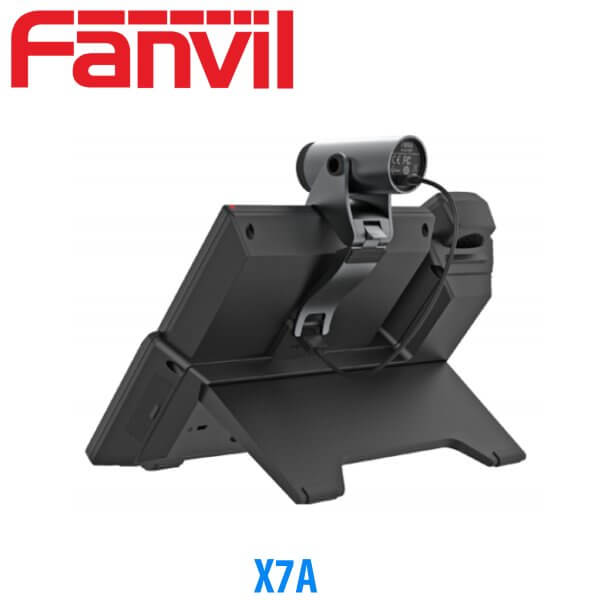

- The Fanvil X7A Android IP Phone Accra, Ghana comes with an adjustable stand that offers two different angles of installation; 40° and 50°, resulting in not only a comfortable viewing experience but also a neater workstation.
- Wireless Connectivity
- Built-in Bluetooth 4.2 connectivity allows for easy pairing with compatible devices while integrated dual-band Wi-Fi which supports 2.4GHz and 5GHz enables you to make fast calls over the internet.
- Optional Fanvil CM60 USB Camera
- For a smooth teleconference experience, the Fanvil X7A Android IP Phone Accra, Ghana uses an optional Fanvil CM60 USB camera which boasts of an easy plug and play interface. The 2MP camera offers a flexible placement as well as an easy angle adjustment.
- 7-inch (1024×600) color touch screen
- The Fanvil X7A Android IP Phone Accra, Ghana is equipped with a clear 7″ touch screen display which offers and enhanced visual clarity. The touch screen carries 112 DSS keys for quick access to details.
- PoE-Enabled
- The Fanvil X7A Android IP Phone Accra, Ghana comes with dual Gigabit Ethernet ports which are integrated with Power over Ethernet to allow for an easy configuration and auto-provisioning process.
Fanvil X7A- Technical Specifications
Generic
- 20 SIP Lines
- HD Voice
- Support receiving a Video call
- PoE Enabled
- 7-inch (1024×600) color touch screen
- Handset / Hands-free / Headset mode
- Intelligent DSS Keys(Virtual buttons)
- Optional External Power Supply Display
Phone Features
- Android 9.0 OS
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/out/missed, 1000 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 4.2: Support Bluetooth headset
- Built-in Wi-Fi 2.4GHz, 802.11 b/g/n
- 5GHz, 802.11 a/n/ac
- Support Recording
- Action URL / Active URI
- uaCSTA
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 3-way Conference
- Hot Line
- Hot desking
- Video
- Wideband codec: G.722
- Narrowband codec: G.711(A/μ), G.723.1,
- 729AB, iLBC, AMR
- DTMF: In-band, Out-of-band(RFC 2833) and
- SIP INFO
- Full-duplex hands-free speakerphone with
- AEC (Max filter length – 128ms)
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Adaptive jitter buffer
- Packet loss concealment (PLC)
- Audio format: WAV/MP3/OGG
- Frame rate selection: 5~30fps
- Video from remote site can be displayed in full screen
Deployment and Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Supports the third party communication APP
- Supports Web, Telnet
- Supports encrypted configuration files download with AES
- Supports Web upgrade
- Supports factory reset data
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.729AB, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Network
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4
- IP Configuration: Static / DHCP
- Network Access Control: 802.1x
- VPN: OpenVPN (Requires third-party app support)
- VLAN
- LLDP
- CDP
- QoS
Physical Features
- LCD x1:7 inch (1024×600) color-screen LCD
- Keypad: 26 keys, including
- 5 Function keys (Hold, MWI,Mute,Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 2 Volume Control keys, Up/Down
- 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 5M CAT5 Ethernet Cable x1
- Back Rack x1
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- 0 Port x1: Standard A, Connect with Flash Driver
- Safety keyhole x1
- Power: 5V/2A or PoE
- Power Consumption (PoE): 1.596~11.86W
- Power Consumption (Adapter): 0.907~9.38W
- Working Temperature: 0~45℃
- Working Humidity: 10~95%
- Installation: Desktop Stand
- Color: Black
- Device Dimensions
- Desktop Stand (Angles 1): 268x185x189mm
- Desktop Stand (Angles 2): 268x201x168mm
- Gift Box Dimensions: 304x297x66mm
- Outer CTN Dimensions: 616x358x329mm (10 PCS)
Protocols
- 0 over
- UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCPCDP
- LLDP
- PPPoE
- 1x
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
