Description

Fanvil i55a SIP Indoor Station Ghana

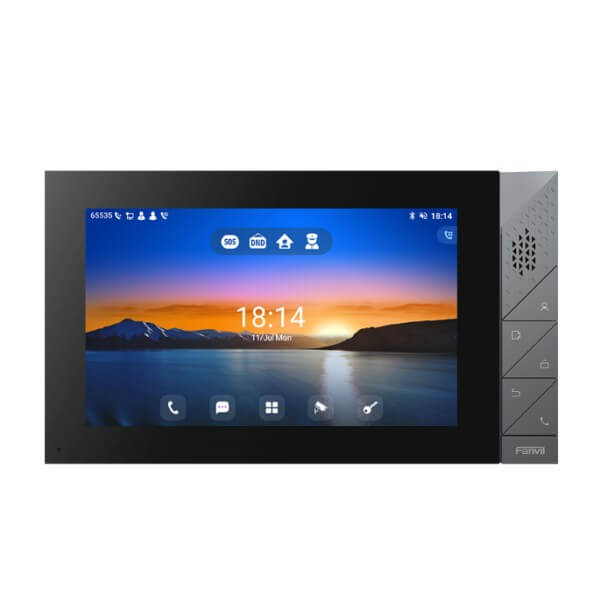

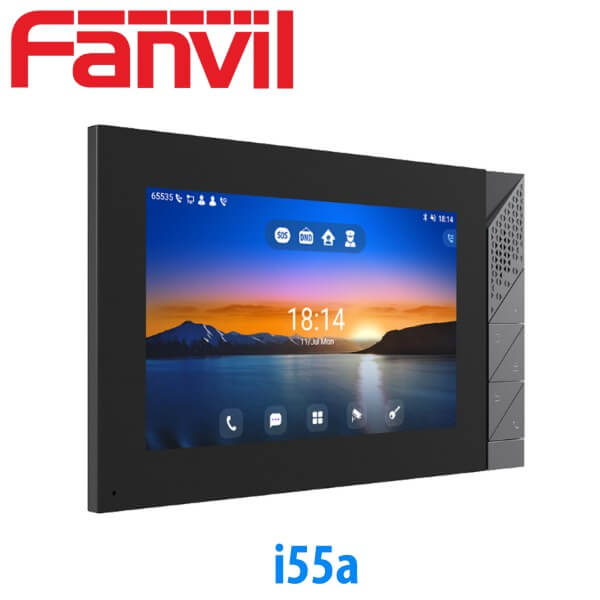

The Fanvil i55a Ghana indoor station features 7-inch colour touch screen with an intuitive UI. Based on Android 9.0 operating system, it meets industry application customization needs and secondary development. Featuring powerful functionalities like remote door opening and real-time monitoring for security devices, Fanvil i55a Ghana serves as a management assistant for communities, villas and office buildings.

fanvil i55a kumasi

Features

7-inch (1024×600) capacitive colour touch screen
Android 9.0 operating system, meeting the customization needs of industry applications and secondary development
Aluminium panel design and five physical buttons, reliable and durable
Check real-time video of door phones with H.264 video codec and 1080P high resolution
HD voice speech quality with built-in 1.5W double speakers and Acoustic Echo Canceller
Built-in Bluetooth 5.0 and 2.4GHz/5G WiFi
Support RS-485, 8 alarm input interfaces and 2 embedded relays
Support PoE, wall-mounted installation

fanvil i55a sip indoor station accra

Specifications

General

2 SIP Lines
HD Voice
PoE
1 x LCD : 7-inch 1024*600 Color Touch Screen
External Power Supply(Optional)
RAM/ROM：2G/16G

Operating System

Android 9.0 OS with higher security and better compatibility
Support 3rd Party Applications
Secondary Development of API

Device Features

Local Phonebook (1000 entries)
Remote Phonebook
Call logs (In/out/missed, 1000 entries)
Blocked List/Allowed List
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in Bluetooth 5.0
Built-in Wi-Fi
4GHz, 802.11 b/g/n
5GHz, 802.11 a/n/ac
Miracast
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive litter Buffer up to 300ms
DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO

fanvil i55a sip indoor station ghana

Video

Hardware video decoding : H.264
Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

10/100 Mbps Ethernet
IP Mode : IPv4
IP Configuration : Static / DHCP
VPN : OpenVPN (Requires third-party app support)
Wi-Fi

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
DNS A/SRV/NAPTR
RTP/RTCP/SRTP
RTSP
STUN
DHCP
OpenVPN (Requires third-party app support)
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Call Features

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Do-Not-Disturb
Auto-Answering
Hot Line
IP call

fanvil i55a accra

Deployment & Management

Action URL / Active URI
SIP Hotspot
Custom Ringtone
Multicast
Action Plan

Audio

Wideband ADC/DAC 16KHz sampling
Narrowband Codec : G.711a/u, G.729AB, iLBc
Wideband Codec : G.722, opus
Acoustic Echo Canceller (AEC)
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
Web Management Portal
Supports Web
Supports encrypted configuration files download withAES
Supports Web upgrade
Supports factory data reset

fanvil i55a ghana

Physical Specifications

5 keys (Manager center key/Monitor key/Unlock key/Return(Hang up key)/Answer key)
10 Pin Cable x1
2Pin Cable x1
Wall-mount Bracket x1
Screws Kit x1
RJ45 interface x1
Micro USB interface x1
TF Slot x1
RS-485 interface x1
2 embedded short circuit output interface
2 relays : MAX DC30V / 2A, AC125V / 0.5A
Alarm input interface x8
Doorbell input interface x1
Power : DC12V/1A or PoE
Housing material : ABS & aluminum alloy
Installation :
Wall-mounted
Working temperature : -10 ~ 50℃
Relative humidity : 10% – 90%
Equipment Dimension : 217x124x21mm
Packing Dimension : 257x175x76mm
Outer CTN Dimension : 405*377*277mm (10 pcs)2 keys (Power, volume +/-)
