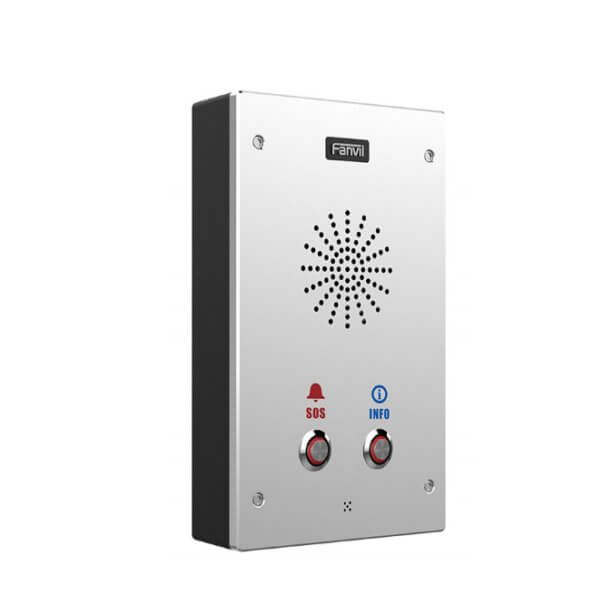

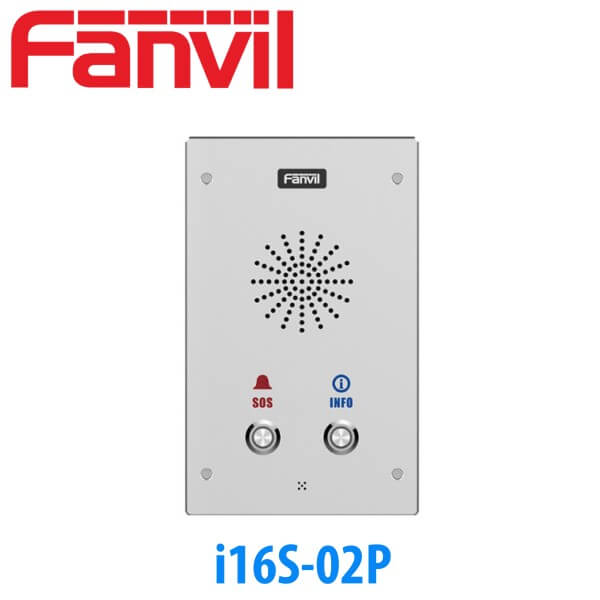

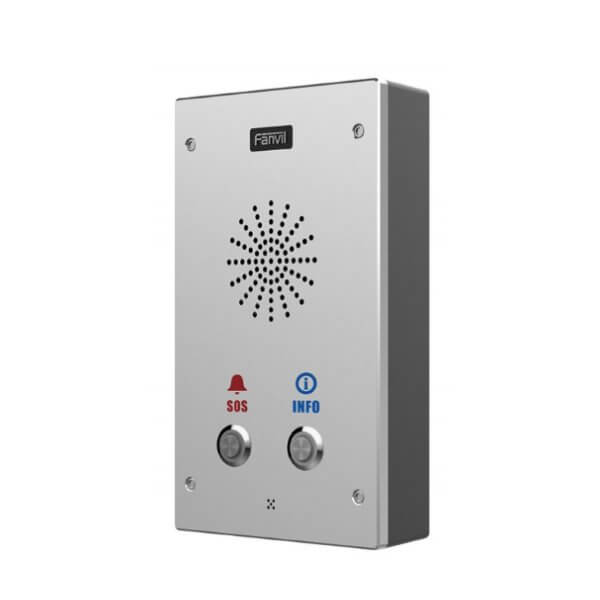

Fanvil i16S-02P SIP Intercom Ghana

The Fanvil i16S-02P Ghana SIP Intercom represents the pinnacle of outdoor communication solutions, meticulously designed to excel in diverse environmental conditions while ensuring unwavering reliability. Engineered to endure outdoor challenges, its robust structure boasts an impressive IP65/IK10 protection grade, guaranteeing resilience against dust, water, and physical impacts. At its core, this advanced intercom system surpasses traditional communication barriers, delivering a superior experience characterized by crystal-clear HD audio and video capabilities. Whether facilitating seamless conversations or enabling remote monitoring with vivid clarity, the Fanvil i16S-02P redefines communication standards.

Furthermore, its versatile functionality extends beyond basic intercom features. Equipped with integrated security measures, users can trust their premises are safeguarded against unauthorized access and potential security breaches. The addition of broadcasting features enhances its utility, enabling efficient distribution of crucial announcements and emergency notifications across designated areas.

The i16S-02P SIP Intercom epitomizes the fusion of security, communication, and technological advancement. As a comprehensive communication solution, Fanvil i16S-02P Ghana enhances operational efficiency and elevates safety and security standards in any environment it serves.

Highlights

• Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV-02P)
• IP65 waterproof and dustproof.
• IK10 anti-collision with robust die-cast aluminum frame
• Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
• HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
• Audio line out port, expandable external active speaker.
• Built-in 2 short-in detect port and 2 short-out control port
• Support built-in TF card slot for data storage or audio offline broadcasting.

Features

Generic

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key
• Support mono active speaker
• Talkback recording output
• Switch signal input and output
• Support TF card
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Incoming call multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec : G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband codec : G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV-02P)

• Sensor : 1/2.8” color CMOS
• Pixels : 2 Mega
• Video coding : H.264
• Resolution : 720P/1080P
• Minimum illumination : 0.1Lux, support for infrared illumination
• Viewing angle :
  • Diagonal : 126°
  • Horizontal : 98°
  • Vertical : 65°

Network

• Physical : 10/100 Mbps Ethernet
• IP mode : IPv4/IPv6/IPv4&IPv6
• IP configuration : Static IP / DHCP / PPPoE
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• Qos

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 2 DSS key (support LED)
• RJ45 port x1 : connect the network
• Power over Ethernet (IEEE 802.3af), class 3
• Line out port x1 : connect the active speaker
  • Out : adjustable by volume, max up to1.2Vpp.
  • Port : terminal socket
• Recording output port x1 : connect audio device
  • Out : mixed output of local microphone voice and call voice recording
  • Impedance : 15 Ohm
  • Port : terminal socket
• Short circuit input and output port x2 (built-in relay)
  • Relay : MAX DC30V / 2A, AC125V / 0.5A
  • Active switching output : 12V/500mA DC(only 1 relay support)
  • Port : terminal socket
• Tamper alarm switchx1
• TF card slot x1 : connect TF card
• DC port x1 : DC power input
• DC power input : DC12V~24V/1A
• Port : 2 Pin terminal socket
• Protection level : IP65 and IK10
• Housing material : aluminum alloy shell
• Installation : wall-mounted
• Working temperature : -30℃ ~ 60℃
• Storage temperature : – 40℃ ~ 70℃
• Working humidity : 10~95%
• Net weight/box : 9.5 kg
• Gross weight/box : 10.05 kg
• Device dimensions : 195x120x40 mm
• Gift box dimensions : 260x165x62 mm
• Outer CTN dimensions : 348x328x280 mm (10 PCS)
