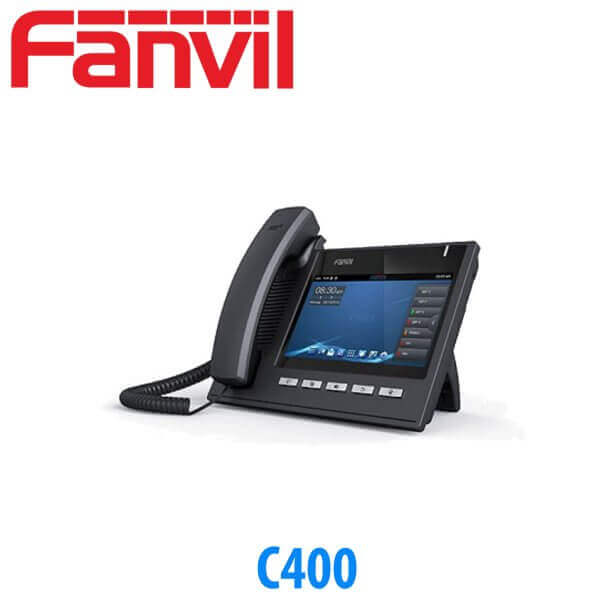

Fanvil C400 IP Video Phone Ghana

The Fanvil C400 offers an easy-to-use and learn user interface to bring a better experience to the user. The C400 offers advanced call features such as intercom/intercom barge, voice recording while talking and a BLF list.

Description

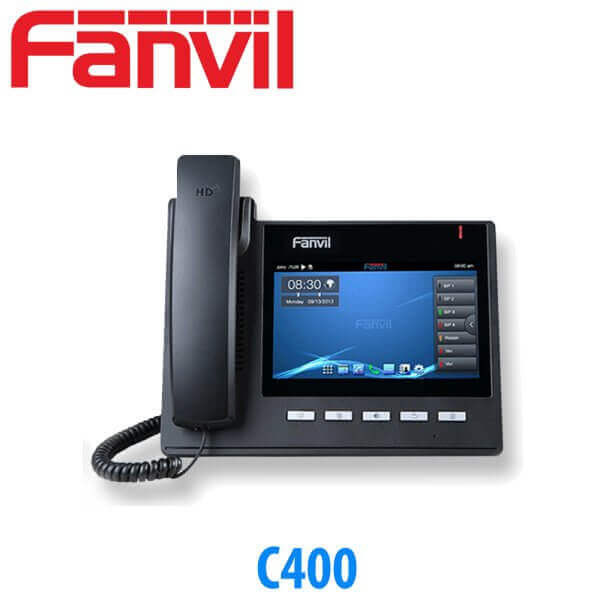

Fanvil C400 IP Video Phone Ghana

The Fanvil C400 IP phone is an Android-based SIP phone that features 6 SIP lines and 7-inch capacitive multiple touchscreens. It provides complete desk phone solutions with flexible functionality, HD Voice Quality, and highly easy operation. It is absolutely an excellent Desk Color Phone for small to large-sized businesses, as well as mission-critical Enterprise businesses.

The dial plan is the main tool that users can be easy deleting, adding the prefix code of different carriers and can process the call easily. Fanvil improves this ability through Agit mapping and group parameter configuration. Users can process the call without any changing of the common dialing way. Fanvil Ghana is also planning to launch a cloud service and deliver online phone software upgrade, data and provision, especially DSS Key assignment and Dial Plan in the different group phone. Before this cloud service, Fanvil Ghana is launching a window base Auto provision of parameters and data.

To improve 3 party conferencing, Fanvil has a feature called Join Conference Meeting. People can easily join the call with the host party by pressing a key. For sure that C400 is designed for the highest standards with a focus on customer requirements and to further simplify its adoption in the market.

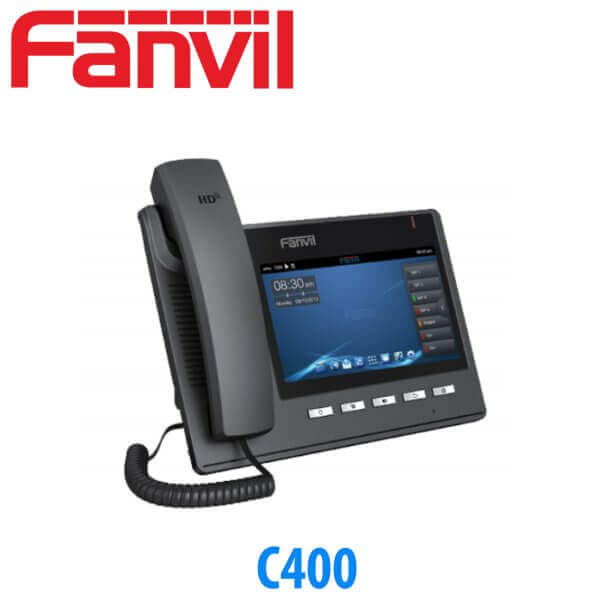

Fanvil C400 Accra

Fanvil C400 Features:

6 SIP lines
7-inch capacitive multiple touch screen
Android 4.2 OS
HDMI port
Up to 10-way conversation
Dialing via the web/browser
High interoperability – compatible with major PBX platforms: 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.
Smart Phonebook
- The Fanvil C400 features a smart phonebook, with more than 100 DSS keys, this phone is perfect for busy office workers.
Wide Compatibility
- The Fanvil C400 is compatible with most major software platforms including 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
3-Way Conferencing
- To improve 3 party conferencing, Fanvil has a feature called Join Conference Meeting. People can easily join the call with the host party by pressing a key.
Easy User Interface
- The Fanvil C400 offers an easy-to-use and learn user interface to bring a better experience to the user. The C400 offers advanced call features such as intercom/intercom barge, voice recording while talking and a BLF list.

Fanvil C400 – Technical Specifications

General

Freescale i.MX6 Core Quad CPU
Programmable DSS Can Support Up to 100 Stations
Provide the DSS Template for Different Groups
On-Line Recording & Message Forwarding
Conference Split
Flexible Dial Plan with Auto Provision
Support LDAP & XML Phone Book

Display

7 inch TFT 800 x 480 capacitive multiple touch screen

Call Features

Call Forwarding
Call Transfer (blind/attended/alert)
Call Holding
Call Waiting
Call Conference
BLF List
Capable of 10-way conversation
Join Call
Pickup
Call Completion
Hot desk function
Soft DSS Key (UpTo 100)
Auto Redial / un-redial
Support multi-line and pre-dial
Support messaging and MWI
Voice recording during talking /local
Flexible dial plan
Hotline/Warm-line
Call Rejection
Black List
Barring function for outgoing calls
Do Not Disturb
Auto Answer (Hands- free / Headset)
Caller ID display
CLIR (rejects anonymous calls)
CLIP (to make an anonymous call)
Dial without registration
Supports Call Logs with Missed / Incoming / Outgoing calls
Intercom/Intercom barge
Password dial
Headset ring
Direct IP call without SIP proxy

Phone Features

Android 4.2 OS
Supports SIP 2.0 (RFC3261) and correlative RFCs
Supports 6 SIP servers and Backup SIP proxy servers.
Supports SIP UDP/TCP/TLS
Supports HDMI
Supports USB Host
Supports Acoustic echo cancellation (AEC) – 128ms max filter length in duplex speaker phone mode
Supports PLC & adaptive jitter buffer

Audio Features

Wideband codec: G.722
Narrowband codec: G.711(A/μ), G.723.1, G.729AB, iLBC, AMR
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speaker phone with AEC (Max filter length – 128ms)
Voice Activity Detection (VAD) • Comfort Noise Generation (CNG)
Adaptive jitter buffer
Packet loss concealment (PLC)
Audio format: WAV/MP3/OGG

Maintenance & Management

Android 4.2
Supports third party communication APP
Supports Web, Telnet
Web Management with different account priority
Supports automatic upgrades/ configuration deployment
Supports encrypted configuration files download with AES
Supports pushing message
Supports Auto-Provisioning (DHCP option/ PnP/ Phone flash)
Supports TR-069
Supports Web upgrade
Supports U Disk/SD upgrade
Supports backup/restore/factory reset data

Physical Features

Adapter Input:100-240V
Adapter Output:12V/1A
WAN Port -10/100/1000 Base-T RJ-45 for LAN • LAN Port- 10/100/1000 Base-T RJ-45 for PC
HDMI Port – Type A
SD Interface – TF Card Support Upto 32G
USB Port- USB 2.0
Power Consumption- Idle: 2.5W/Active: 5W
LCD Size Diagonal:7 inch (800 x 480) Capacitive touch screen
Operation Temperature: 0~40℃
Relative Humidity: 10～65%
CPU Freescale Core Quad 1 Ghz
SDRAM – 1GB DDR3 1066
Flash- 4GB
Weight- Phone:1.2Kg/Total:1.8Kg
