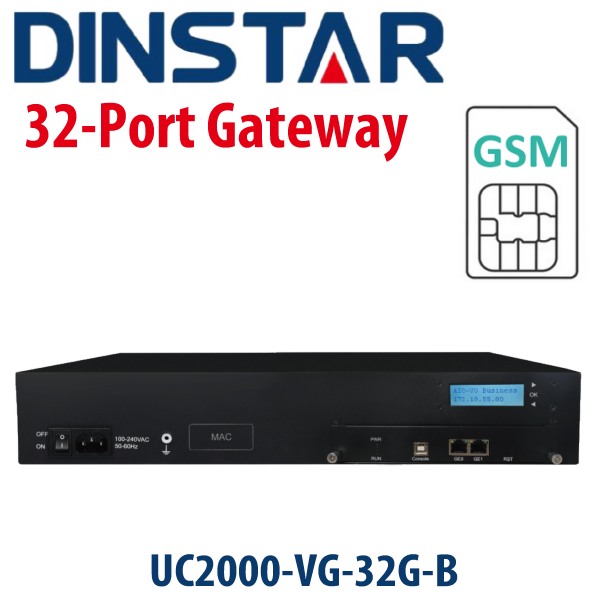

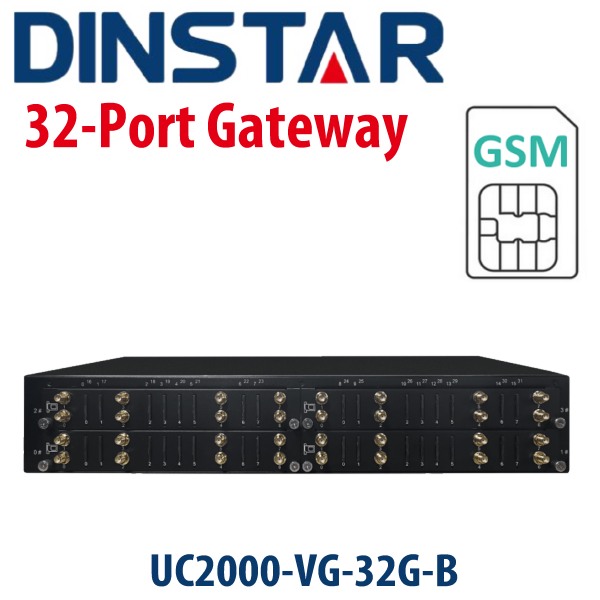

Dinstar UC2000-VG-32G-B VoIP Gateway Ghana

The Dinstar UC2000-VG-32G VoIP Gateway Ghana is a 32 channel GSM field-proven hardware design, used to establish connections between mobile and VoIP networks, for transmission of both voice and SMS, suitable for areas with limited landline. With new designed pop-up SIM card slot, users are able to change SIM card easily without dismantling equipment. Moreover, with the opened API, the users could build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc.

Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platform, the gateway provides low cost, easy and flexible IP telephony solution to enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy-efficient communications. It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.

Key Features

• 32 GSM/CDMA/WCDMA Channels
• Support to different mobile networks:
• GSM: 850/900/1800/1900MHz;
• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

 Technical Specifications

Voice Processing

• Protocol: SIP v2.0, RFC3261
• Codecs: G.711A/U law, G.723.1, G.729A/B
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Dynamic Jitter Buffer
• DTMF: RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT: STUN, Dynamic NAT, Static NAT

Mobile

• SIM Interface: 1.8v, 3.0v SIM Interface
• Frequency Range:
  GSM: 850/900/1800/1900MHz;
  CDMA: 800MHz
• WCDMA:850/900/1900/2100MHz
• USSD Encoding: Unicode/ASCII
• HTTP API for SMS
• Polarity Reversal
• PIN Modify
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Call Waiting/Call Back
• Call Forward
• GSM Audio Coding: HR, FR, EFR, AMR_FR, AMR_HR

Software Features

• Calling Type:
  Mobile to VoIP, VoIP to Mobile
• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Call Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP
• Signaling & RTP Encryption
• SMPP for SMS

Network

• Static IP, DHCP Client, PPPoE
• Network Protocols:
• TCP/UDP, TFTP, FTP, RTP/ RTCP, SSH, ARP, RARP, ICMP Ping, NTP, HTTP, DNS
• Static/Dynamic ARP Request

Maintenance

• Web/Telnet Configuration
• Configure Backup/Restore
• Firmware Upgrade by HTTP/TFTP
• Factory Reset
• CDR (10000 Lines CDRs Storage Locally)
• Syslog/Filelog
• Ping and Tracert
• Traffic statistics: TCP, UDP, RTP
• VoIP Call Statistics
• PSTN Call statistics: ASR, ACD, PDD
• Voice Diagnose with Loopback
• GSM Network Test
• IVR Customization
• Auto Provisioning
• SIP/RTP/PCM Capture

Physical Interface

• Mobile: 32 Channels
• Antennas Connectors: SMA
• Ethernet Interfaces:2*10/100 Base-T, RJ45
• LED Indicators: Power, RUN, Signal Strength Indicators
• Console:1* RS232 115200bps

Environmental

• Power Supply
  Input:100-240V,50-60Hz
• Power Consumption: 68w
• Temperature(Operation): 0 ℃ ~ 45 ℃ (Storage): -20 ℃ ~80 ℃
• Operation Humidity: 10%-90% No Condensation
• Dimension(W/D/H): 440×270×75mm
• Weight: 4.7kg
• Package Weight: 8.2kg
