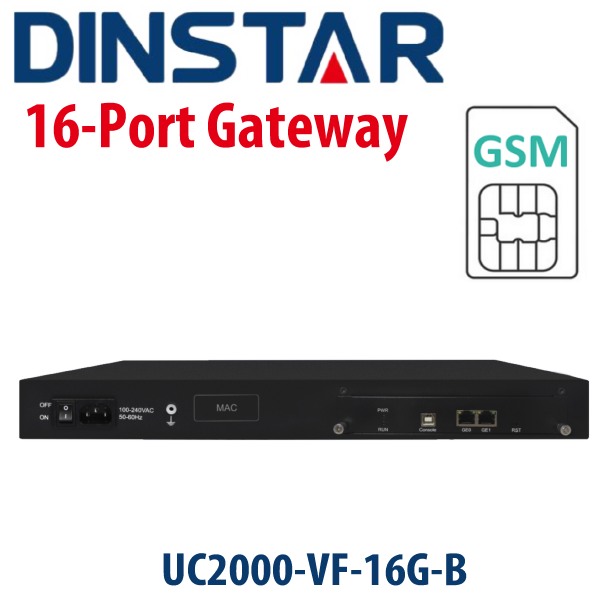

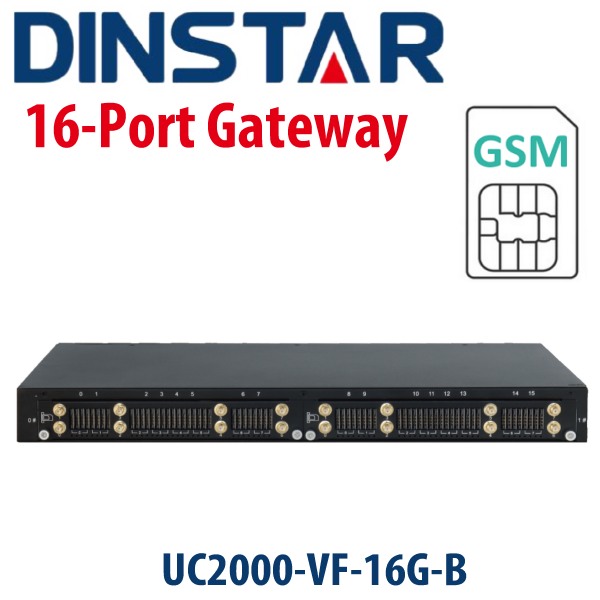

Dinstar UC2000-VF-16G-B VoIP Gateway Ghana

The Dinstar UC2000-VF-16G-B VoIP Gateway Ghana provides 16-channel GSM/3G/4G VoIP Gateway in 1U field-proven hardware design, used to establish connections between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy, efficient communications.

Dinstar UC2000-VF-16G-B VoIP Gateway is simple to set up and requires only good network coverage and a sim-card; simply, add the telephone number and country code to the Nova software along with the given timeframe. Get access by calling or sending an SMS to the number stored in the GSM gateway. Moreover, with new designed pop-up SIM card slot, users are able to change SIM card easily without dismantling equipment. Dinstar UC2000-VF, works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.

Key Features

• 16 GSM/CDMA/WCDMA Channels
• Support to different mobile networks:
• GSM: 850/900/1800/1900MHz;
• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

Application

• Mobile connectivity for SME IP phone system
• Mobile trunking for Multi-site offices
• GSM/3G as voice backup trunks
• Call termination for service providers
• Land-line replacement for rural area
• Bulk SMS service
• Call Center / Contact Center Solution

Technical Specifications

Voice Processing

• Protocol: SIP v2.0, RFC3261
• Codecs: G.711A/U law, G.723.1, G.729A/B
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Dynamic Jitter Buffer
• DTMF: RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT: STUN, Dynamic NAT, Static NAT

Mobile

• SIM Interface: 1.8v, 3.0v SIM Interface
• Frequency Range:
  GSM: 850/900/1800/1900MHz;
  CDMA: 800MHz
• WCDMA:850/900/1900/2100MHz
• USSD Encoding: Unicode/ASCII
• HTTP API for SMS
• Polarity Reversal
• PIN Modify
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Call Waiting/Call Back
• Call Forward
• GSM Audio Coding: HR, FR, EFR, AMR_FR, AMR_HR

Software Features

• Calling Type: Mobile to VoIP, VoIP to Mobile
• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Call Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP
• Signaling & RTP Encryption
• SMPP for SMS

Network

• Static IP, DHCP Client,
• Network Protocols:
• TCP/UDP, TFTP, FTP, RTP/ RTCP, SSH, ARP, RARP, ICMP Ping, NTP, HTTP, DNS
• Static/Dynamic ARP Request
• PPTP VPN

Maintenance

• Web/Telnet Configuration
• Configure Backup/Restore
• Firmware Upgrade by HTTP/TFTP
• Factory Reset
• CDR (10000 Lines CDRs Storage Locally)
• Syslog/Filelog
• Ping and Tracert
• Traffic statistics: TCP, UDP, RTP
• VoIP Call Statistics
• PSTN Call statistics: ASR, ACD, PDD
• Voice Diagnose with Loopback
• GSM Network Test
• IVR Customization
• Auto Provisioning
• SIP/RTP/PCM Capture
• Physical Interface
• Mobile: 16 Channels
• Antennas Connectors: SMA
• Ethernet Interfaces:2*10/100 Base-T, RJ45
• LED Indicators: Power, RUN, Signal Strength Indicators
• Console:1* RS232 115200bps

Environmental

• Power Supply
  Input:100-240V,50-60Hz
• Power Consumption: 38w
• Temperature(Operation): 0 ℃ ~ 45 ℃(Storage): -20 ℃ ~80 ℃
• Operation Humidity: 10%-90% No Condensation
• Dimension(W/D/H): 440×270×44 mm
• Weight: 3.6kg
• Package Weight: 5.5kg
