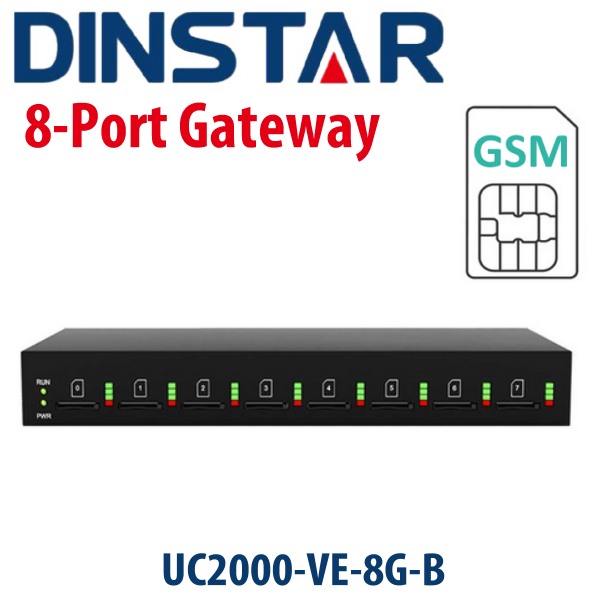

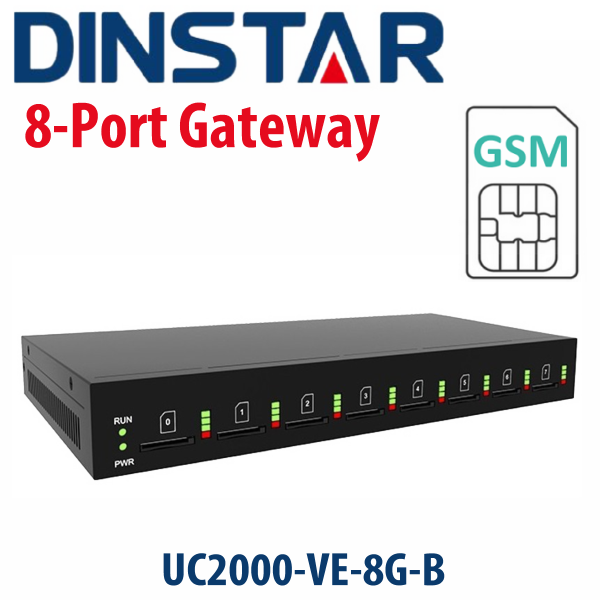

Dinstar UC2000-VE-8G VoIP Gateway Ghana

The Dinstar UC2000-VE-8G Ghana is 8 multi-functional Port GSM VoIP Gateway which helps to effectively implement calls between 2G/3G mobile network and VoIP network. The gateway offer great performance in software features and new hardware structure design.  By enabling direct routing between IP, digital analog and GSM networks, the gateway ensures companies significantly reduce the money they spend on telephony calls from IP to GSM.

Setting up the Dinstar UC2000-VE-8G VoIP Gateway is simple and requires only good network coverage and a sim-card. Simply, add the telephone number and country code to the Nova software along with the given timeframe. Get access by calling or sending an SMS to the number stored in the GSM gateway. Moreover, with the new designed pop-up SIM card slot, users are able to change SIM card easily without dismantling equipment. With the opened API, the users could build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc.

Key Features

• 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE
• Support to different mobile networks:
• GSM: 850/900/1800/1900MHz;
• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

Technical Specifications

Voice Processing

• Protocol: SIP v2.0, RFC3261
• Codecs: G.711A/U law, G.723.1, G.729A/B
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Dynamic Jitter Buffer
• DTMF: RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT: STUN, Dynamic NAT, Static NAT

Mobile

• SIM Interface: 1.8v, 3.0v SIM Interface
• Frequency Range:
  GSM: 850/900/1800/1900MHz;
  CDMA: 800MHz
  WCDMA:850/900/1900/2100MHz
• USSD Encoding: Unicode/ASCII
• HTTP API for SMS
• Polarity Reversal
• PIN Modify
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Call Waiting/Call Back
• Call Forward
• GSM Audio Coding: HR, FR, EFR, AMR_FR, AMR_HR

Software Features

• Calling Type:
  Mobile to VoIP, VoIP to Mobile
• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Call Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP
• Signaling & RTP Encryption
• SMPP for SMS

Network

• Static IP, DHCP Client, PPPoE
• Network Protocols:
• TCP/UDP, TFTP, FTP, RTP/ RTCP, SSH, ARP, RARP, ICMP Ping, NTP, HTTP, DNS
• Static/Dynamic ARP Request
• PPTP VPN

Maintenance

• Web/Telnet Configuration
• Configure Backup/Restore
• Firmware Upgrade by HTTP/TFTP
• Factory Reset
• CDR (10000 Lines CDRs Storage Locally)
• Syslog/File-log
• Ping and Tracert
• Traffic statistics: TCP, UDP, RTP
• VoIP Call Statistics
• PSTN Call statistics: ASR, ACD, PDD
• Voice Diagnose with Loopback
• GSM Network Test
• IVR Customization
• Auto Provisioning
• SIP/RTP/PCM Capture

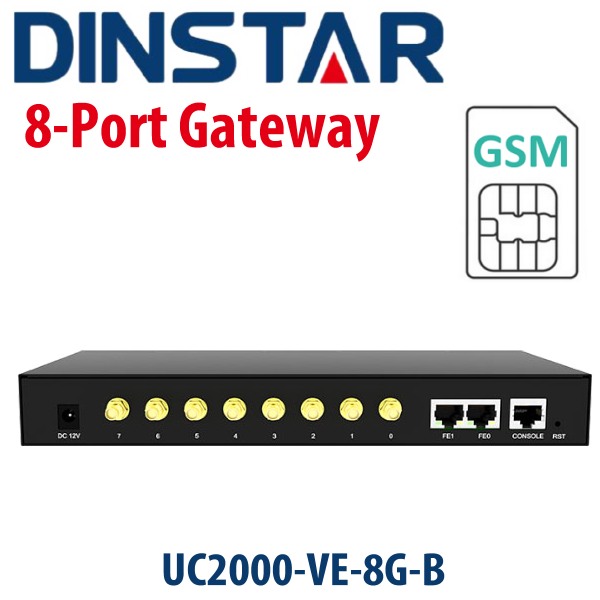

Physical Interface

• Mobile: 4/8 Channels
• Antennas Connectors: SMA
• Ethernet Interfaces:2*10/100 Base-T, RJ45
• LED Indicators: Power, RUN, Signal Strength Indicators
• Console:1* RS232 115200bps

Environmental

• Power Supply
  Input:100-240V,50-60Hz
  Output: DC12V 4.0A
• Power Consumption:
  UC2000-VE-4G: 20w
  UC2000-VE-8G: 25w
• Temperature(Operation): 0 ℃ ~ 45 ℃(Storage): -20 ℃ ~80 ℃
• Operation Humidity: 10%-90% No Condensation
• Dimension(W/D/H): 250*156*32.5mm
• Weight: 1.069kg
• Package Weight: 2.05kg
