Description

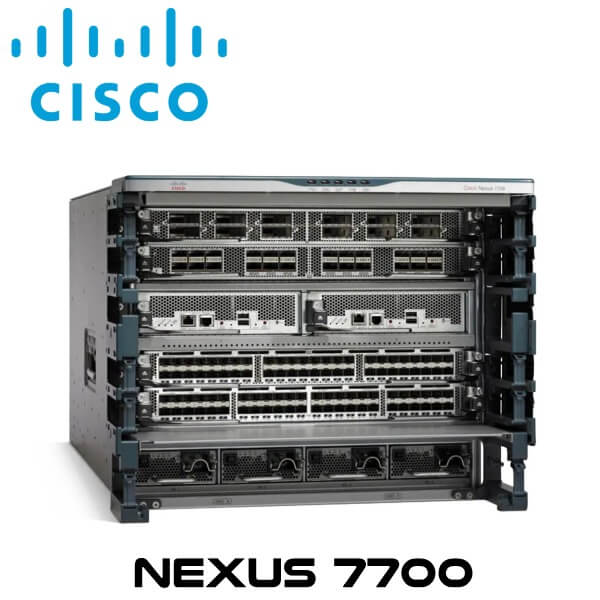

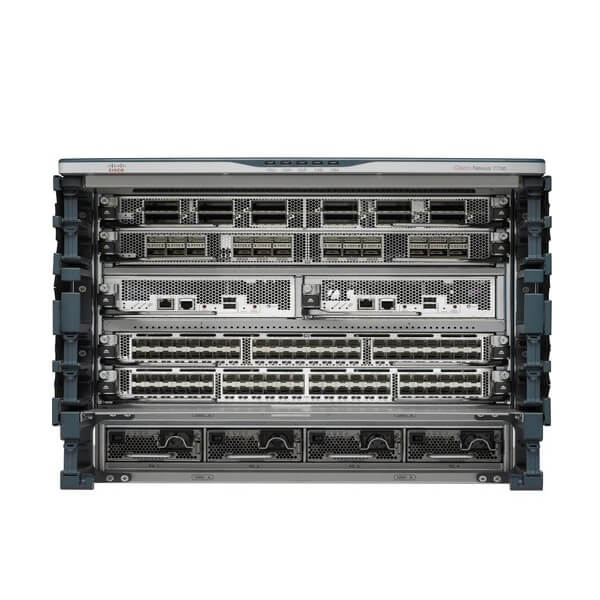

Cisco Nexus7700-6Slot Chassis Switch Ghana

The Cisco Nexus7700-6Slot Ghana is a 6-slot switch with six front-accessible module slots with front-to-back airflow and an integrated cable management system. The Cisco Nexus7700-6Slot Ghana is the latest extension to the Cisco Nexus 7000 Series modular switches. With more than 83 Terabits per second (Tbps) of overall switching capacity, the Cisco Nexus7700-6Slot Ghana delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments. The Cisco Nexus7700-6Slot Ghana have operational and feature consistency with the existing Cisco Nexus 7000 Series Switches, using common system architecture, the same Application-Specific Integrated Circuit (ASIC) technology, and the same proven Cisco NX-OS Software releases.

The fan trays in the switches have variable speed fans that adjust to compensate for changing thermal characteristics and use less power at typical operating conditions. Standard fan trays are included as part of the Cisco Nexus7700-6Slot Ghana and also support optional generation 2 fan trays. All fan trays provide NEBS compliance in combination with the rest of the components of the chassis for specific system configurations. Additionally, the generation 2 fan trays provide NEBS Level-3 acoustic compliance and short term operation at 55C for the Cisco Nexus7700-6Slot Ghana chassis if configured with the Nexus 7700 M3 100G I/O modules or future I/O modules. Consolidation of multiple switches to Cisco Nexus7700-6Slot Ghana is made possible by the high density of ports on the switches combined with high-performance device virtualization, comprehensive reliability, and availability features. This consolidation capability provides multiple benefits such as reduced power, cooling, and space requirements to save on costs.

Features

The Cisco Nexus7700-6Slot Ghana Switch comes with up to four I/O module slots, supports up to 192 x 1 and 10 Gigabit Ethernet ports, 96 x 40 Gigabit Ethernet ports, and 48 x 100 Gigabit Ethernet ports, meeting the demands of small to medium data center deployments in a compact 9 Rack Units (RU) footprint.
The Cisco Nexus7700-6Slot Ghana has two dedicated half-slot supervisors to provide full redundancy, stateful supervisor switchover, and hitless In-Service Software Upgrade (ISSU) capabilities.
The Cisco Nexus 7706 has six fabric module slots to provide simultaneously active fabric channels to each of the I/O and supervisor modules. Through the parallel forwarding fabric architecture, the Cisco Nexus 7706 can achieve 10.5 Tbps of forwarding capacity or more.
Front-to-back airflow helps ensure that the Cisco Nexus7700-6Slot Ghana addresses the requirement for hot-aisle and cold-aisle deployments to help provide efficient cooling.
The system uses three redundant fan trays for cooling. Each fan tray is composed of independent variable-speed fans that automatically adjust to the ambient temperature, helping reduce power consumption in well-managed facilities while helping enable optimum operation of the switch. The system also allows hot swapping of fan trays without negatively affecting the system.
The system supports an optional door and air filter to help ensure clean airflow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.
The Cisco Nexus7700-6Slot Ghana Switch can have up to four 3- or 3.5-(kW) power supplies. The smaller power supply configuration provides more flexibility and greater control in power provisioning. The four power supply bays are designed for future growth.
I/O modules, supervisor modules, and power supplies are accessible from the front, and fabric modules and fan trays are accessible from the back of the chassis.

Cable Management System

An integrated cable management system, custom designed for the Cisco Nexus7700-6Slot Ghana, supports the cabling requirements of a fully configured system at either or both sides of the switch, providing outstanding flexibility. All system components can easily be removed with the cabling in place, providing ease of maintenance with no disruption.

Easy Operations

A series of LEDs at the top of the chassis (except in case of the Cisco Nexus 7700 2-slot chassis provides a clear summary of the status of the major system components, alerting operators to the need to conduct further investigation. These LEDs report the power supply, fan, fabric, supervisor, and I/O module status.

Energy-Efficient Design

The Cisco Nexus7700-6Slot Ghana use 3.5-kW and 3-kW power supplies that are 96 and 90 percent efficient or greater, so less power is dissipated as heat, and more power is available for the system to use than with typical power supplies. These high-efficiency power supplies allow smaller power configuration and provide flexible power provisioning.

Specifications

Item	Cisco Nexus 7700 2-Slot Chassis	Cisco Nexus 7700 6-Slot Switch	Cisco Nexus 7700 10-Slot Switch	Cisco Nexus 7700 18-Slot Switch
Port count	48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps	192 x 10 Gbps, 96 x 40 Gbps, and 48 x 100 Gbps	384 x 10 Gbps, 192 x 40 Gbps, and 96 x 100 Gbps	768 x 10 Gbps, 384 x 40 Gbps, and 192 x 100 Gbps
Product compatibility	Supports all Cisco Nexus 7700 switch modules except the following : N77-F248XP-23E Does not use fabric modules	Supports all Cisco Nexus 7700 Series Supervisor and I/O modules Supports Cisco Nexus 7700 Series Fabric-2 modules Supports Cisco Nexus 7700 Series Fabric 3 modules	Supports all Cisco Nexus 7700 Series Supervisor and I/O modules Supports Cisco Nexus 7700 Series Fabric-2 modules Supports Cisco Nexus 7700 Series Fabric 3 modules	Supports all Cisco Nexus 7700 Series Supervisor and I/O modules Supports Cisco Nexus 7700 Series Fabric-2 modules
Software compatibility	Cisco NX-OS Software Release 7.2 or later	Cisco NX-OS Software Release 6.2.6 or later	Cisco NX-OS Software Release 6.2.2 or later	Cisco NX-OS Software Release 6.2.2 or later
Options	Door air filter Lockable front module doors	Door air filter Lockable front module doors	Door air filter Lockable front module doors	Door air filter Lockable front module doors Power supply center cable management
System forwarding capacity	No fabric modules All I/O modules are line rate	21 Tbps	42 Tbps	83 Tbps
Max local switching capacity	2.4 Tbps	2.4 Tbps	2.4 Tbps	1.2 Tbps
Max inter-slot switching capacity^*	n/a	2.4 Tbps	2.4 Tbps	1.2 Tbps
Reliability and availability	Online insertion and removal (OIR) of redundant power supplies	OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays	OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays	OIR of all redundant components : supervisor and fabric modules, power supplies, and fan trays
MIBs	Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)	Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management	Cisco Data Center Network Manager (DCNM)	Cisco Data Center Network Manager (DCNM)	Cisco Data Center Network Manager (DCNM)	Cisco Data Center Network Manager (DCNM)
Programming interfaces	XML Scriptable command-line interface (CLI) Cisco DCNM web services Python Tool Command Language (TCL) Cisco IOS Embedded Event Manager (EEM) Cisco One Platform Kit (OnePK ) OpenFlow	XML Scriptable CLI Cisco DCNM web services Python TCL Cisco IOS EEM Cisco OnePK OpenFlow	XML Scriptable CLI Cisco DCNM web services Python TCL Cisco IOS EEM Cisco OnePK OpenFlow	XML Scriptable CLI Cisco DCNM web services Python TCL Cisco IOS EEM Cisco OnePK OpenFlow
Physical specifications	Required rack space : 3RU 2-slot switch : 1 dedicated supervisor module and 1 I/O module No fabric modules 2 power supply slots Dimensions (H x W x D) : 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm) Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm) Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable Weight Chassis only : 37.5 lb (17 kg) Fan Tray : 13.5 lb (6.1 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies	Required rack space : 9RU 6-slot switch : 2 dedicated supervisor modules and 4 I/O modules 6 fabric module slots 4 power supply slots Dimensions (H x W x D) : 15.6 x 17.3 x 32 in. (39.62 x 43.9 x 81.3 cm) Chassis depth, including cable management and chassis doors, is 38 in. (96.52 cm) Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable Weight Chassis only : 145 lb (65.8 kg) Fabric Module : 5.6 lb (2.5 kg) Fan Tray : 5.3 lb (2.4 kg) Fan Tray (Generation 2) : 7.75 lb (3.5 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies	Required rack space : 14RU 10-slot switch : 2 dedicated supervisor modules and 8 I/O modules 6 fabric module slots 8 power supply slots Dimensions (H x W x D) : 24.35 x 17.3 x 34 in. (61.85 x 43.9 x 86.4 cm) Chassis depth, including cable management and chassis doors, is 40 in. (101.6 cm) Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack Weight Chassis only : 160 lb (72.6 kg) Fabric Module : 11 lb (5.0 kg) Fan Tray : 8.5 (3.9 kg) Fan Tray (Generation 2) : 12 lb (5.4 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies	Required rack space : 26RU 18-slot switch : 2 dedicated supervisor modules and 16 I/O modules 6 fabric module slots 16 power supply slots Dimensions (H x W x D) : 45.25 x 17.3 x 35 in. (114.9 x 43.9 x 88.9 cm) Chassis depth, including cable management and chassis doors, is 41 in. (104.1 cm) Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack Weight Chassis only : 300 lb (136.0 kg) Fabric Module : 20 lb (9.1 kg) Fan Tray : 13.5 lb (6.1 kg) Fan Tray (Generation 2) : 17.75 lb (8.1 kg) Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies
Environmental specifications	Airflow direction : Front to back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, noncondensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 24 lbs per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, noncondensing Heat dissipation : Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Front to back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, noncondensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 92 lbs per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, noncondensing Heat dissipation : Maximum 26,280 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Front to back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, noncondensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 122 lbs per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : – 40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, noncondensing Heat dissipation : Maximum 52,500 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)	Airflow direction : Front to back Operating temperature : 32 to 104°F (0 to 40°C) Operational relative humidity : 5 to 90%, noncondensing Operating altitude : -500 to 13,123 ft. (agency certified 0 to 6500 ft.) Seismic : Zone 4 per GR63 Floor loading : 230 lbs per sq. ft. Operational vibration GR63, Section 5.4.2 ETS 300 019-1-3, Class 3.1, Section 5.5 Storage altitude : -1000 to 30,000 ft. Storage temperature : -40 to 158°F (-40 to 70°C) Storage relative humidity : 5 to 95%, noncondensing Heat dissipation : Maximum 96,160 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
Regulatory compliance	EMC compliance FCC Part 15 (CFR 47) (USA) Class A ICES-003 (Canada) Class A EN55022 (Europe) Class A CISPR22 (International) Class A AS/NZS CISPR22 (Australia and New Zealand) Class A VCCI (Japan) Class A KN22 (Korea) Class A CNS13438 (Taiwan) Class A CISPR24 EN55024 EN50082-1 EN61000-3-2 EN61000-3-3 EN61000-6-1 EN300 386
Environmental standards	NEBS criteria levels SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE) Verizon NEBS compliance Telecommunications Carrier Group (TCG) checklist Century Link NEBS requirements Telecommunications Carrier Group (TCG) checklist ATT NEBS requirements ATT TP76200 level 3 ETSI ETSI 300 019-2-1, Class 1.2 storage ETSI 300 019-2-2, Class 2.3 transportation ETSI 300 019-2-3, Class 3.2 stationary use
Safety	UL/CSA/IEC/EN 60950-1 AS/NZS 60950
