Description

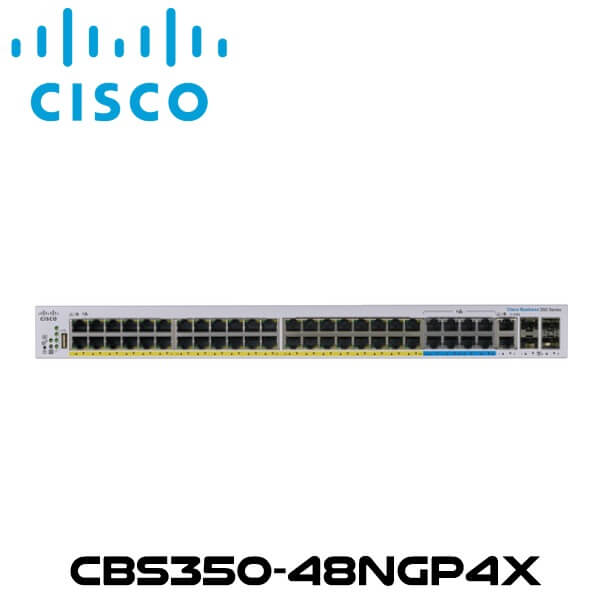

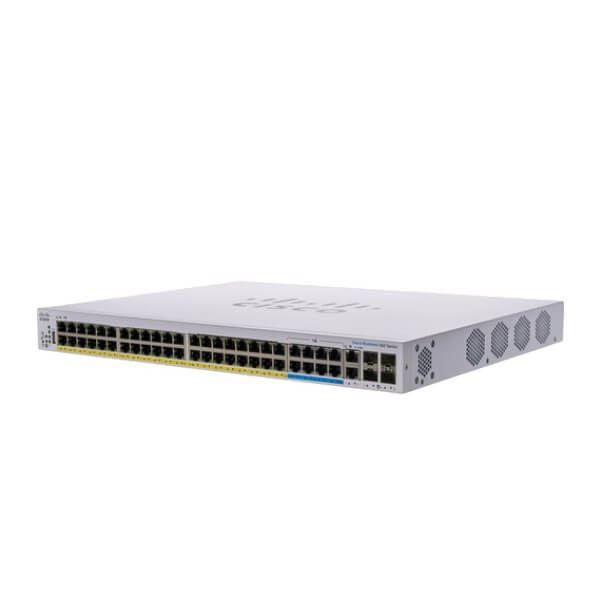

Cisco CBS350-48NGP4X Network Switch Ghana

The Cisco CBS350-48NGP4X Ghana is a managed rackmount switch featuring 48-Port 5G PoE++ Managed Network Switch. It is 40 Gigabit PoE+ Ethernet ports that support 30W of power each, alongside eight 5G 60W PoE++ ports that can power a variety of compatible devices such as advanced IP security cameras, printers, access points, and more. There are also two 10G RJ45 copper / SFP+ fiber ports and two 10G SFP+ ports for high-speed uplink connections. The Cisco CBS350-48NGP4X Ghana has extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices. Its 240 Gb/s switching capacity and 178.56 Mpps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-48NGP4X Ghana and its connected devices. The four-fan design helps maintain optimal temperatures while the switch operates quietly in the background.

Features

High Performance

The Cisco CBS350-48NGP4X Ghana is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 240 Gb/s switching capacity and 178.56 Mpps forwarding rate.

Power over Ethernet

The 40 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each while the eight 5G PoE++ ports provide up to 60W each. This switch has a total budget of 740W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Extensive Security

• Cisco CBS350-48NGP4X Ghana has support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
• Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
• The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-48NGP4X Ghana switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS350-48NGP4X Ghana can fit into most wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications
