Cisco CBS110-8PPD Ghana



Cisco CBS110-8PPD Ghana

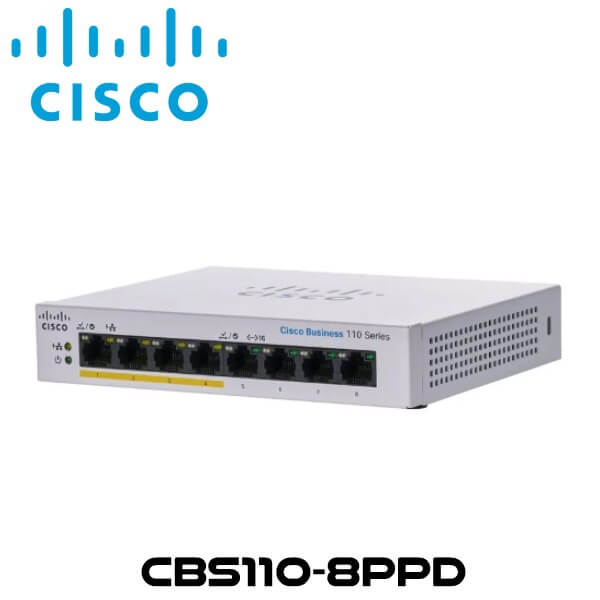

The Cisco CBS110-8PPD Ghana Switch is a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce.

Category:

Description

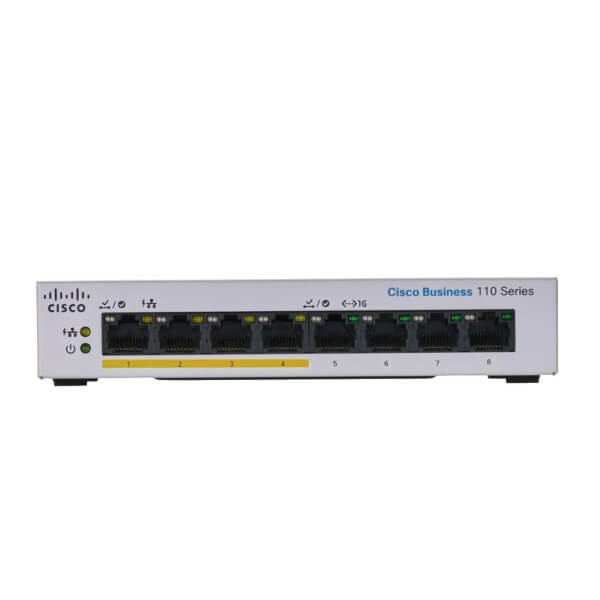

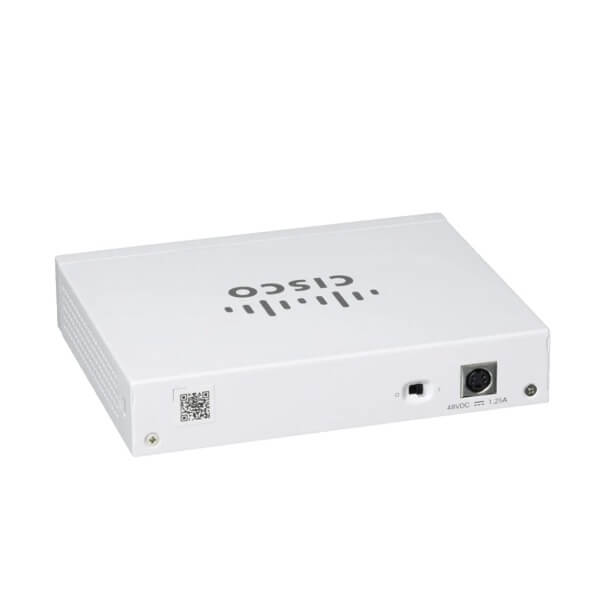

Cisco CBS110-8PPD Switch Ghana

The Cisco CBS110-8PPD Switch Ghana is a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce. Cisco CBS110-8PPD Ghana is affordable plug-and-play switches are ideal for small offices, workgroups, departments, and growing offices with limited IT know-how and support. Cisco CBS110-8PPD Ghana is Unmanaged Switch providing Gigabit Ethernet connectivity for your small business network. This Switch provides robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Cisco CBS110-8PPD Ghana switch bring the proven reliability and investment protection of Cisco networking solutions to your small business.

Features

Simple Plug & play

Cisco CBS110-8PPD Ghana work right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco CBS110-8PPD Ghana is designed to immediately accommodate all of the devices in your network.

Flexible deployment

Designed for small office spaces, Cisco Business 110 Series switches are available in 5-, 8-, 16-, and 24-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.

High performance

 Cisco CBS110-8PPD Ghana delivers the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

Reduced energy costs

Cisco CBS110-8PPD Ghana is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.

Power over Ethernet (PoE)

Cisco CBS110-8PPD Ghana is equipped with PoE ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other IoT solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.

Advanced technologies

 All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network’s performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

Peace of mind

Cisco CBS110-8PPD Ghana the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.

Specifications

Specifications Description
Performance
Switching capacity and forwarding rate

All switches are wire- speed and non-blocking

Model Capacity in millions of packets per second (mpps) (64-byte packets) Switching capacity in gigabits per second (Gbps)
CBS110-5T-D 7.4 mpps 10 Gbps
CBS110-8T-D 11.9 mpps 16 Gbps
CBS110-8PP-D 11.9 mpps 16 Gbps
CBS110-16T 23.8 mpps 32 Gbps
CBS110-16PP 23.8 mpps 32 Gbps
CBS110-24T 35.7 mpps 48 Gbps
CBS110-24PP 35.7 mpps 48 Gbps
General
Head-of-Line (HOL) blocking HOL blocking prevention
MAC table
  • 2K addresses for CBS110-5T-D
  • 8K addresses for all other models
Jumbo frame 9216 bytes
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Ports Model name Total system ports RJ-45 ports Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])
CBS110-5T-D 5 Gigabit Ethernet 5 Gigabit Ethernet
CBS110-8T-D 8 Gigabit Ethernet 8 Gigabit Ethernet
CBS110-8PP-D 8 Gigabit Ethernet 8 Gigabit Ethernet
CBS110-16T 16 Gigabit Ethernet 16 Gigabit Ethernet
CBS110-16PP 16 Gigabit Ethernet 16 Gigabit Ethernet
CBS110-24T 24 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP (combo with 2 Gigabit Ethernet)
CBS110-24PP 24 Gigabit Ethernet 24 Gigabit Ethernet 2 SFP (combo with 2 Gigabit Ethernet)
Power over Ethernet (PoE) 802.3af Model Power dedicated to PoE Number of ports that support PoE
CBS110-8PP-D 32W 4
CBS110-16PP 64W 8
CBS110-24PP 100W 12
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE*

*if present

Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Flash
  • 16 MB for CBS110-16T, CBS110-16PP
  • 8 MB for CBS110-24T, CBS110-24PP
CPU 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory
  • 128 MB for CBS110-16T, CBS110-16PP
  • 64 MB for CBS110-24T, CBS110-24PP
Packet buffer All numbers are aggregate across all ports as the buffers are dynamically shared:
Model Name Packet Buffer
CBS110-5T-D 1 Mbit
CBS110-8T-D 2 Mbit
CBS110-8PP-D 2 Mbit
CBS110-16T 2 Mbit
CBS110-16PP 2 Mbit
CBS110-24T 2 Mbit
CBS110-24PP 2 Mbit
Supported SFP modules SKU Media Speed Maximum distance
MGBSX1 Multimode fiber 1000 Mbps 500 m
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBT1 UTP cat 5e 1000 Mbps 100 m
Environmental
Unit dimensions
(W x D x H)
Model name Unit dimensions
CBS110-5T-D 110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in)
CBS110-8T-D 160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)
CBS110-8PP-D 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
CBS110-16T 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-16PP 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-24T 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
CBS110-24PP 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in)
Unit weight Model name Unit weight
CBS110-5T-D 0.23 kg (0.52 lb)
CBS110-8T-D 0.43 kg (0.94 lb)
CBS110-8PP-D 0.55 kg (1.2 lb)
CBS110-16T 0.97 kg (2.14 lb)
CBS110-16PP 1.30 kg (2.87 lb)
CBS110-24T 1.56 kg (3.43 lb)
CBS110-24PP 2.98 kg (6.57 lb)
Power
  • 100 to 240V, 50 to 60 Hz, external, universal: CBS110-5T-D, CBS110-8T-D, CBS110-8PP-D
  • 100 to 240V, 50 to 60 Hz, internal, universal: CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
Power consumption (worst case) Model System power consumption Power consumption (with PoE) Heat dissipation (BTU/hr)
CBS110-5T-D 110V=2.74W

220V=2.69W

N/A 9.34
CBS110-8T-D 110V=4.09W

220V=4.13W

N/A 14.09
CBS110-8PP-D 110V=5.1W

220V=5.29W

110V=38.02W

220V=38.2W

130.34
CBS110-16T 110V=11.33W

220V=11.53W

N/A 39.34
CBS110-16PP 110V=11.16W

220V=11.41W

110V=80.28W

220V=80.38W

274.27
CBS110-24T 110V=16.3W

220V=16.34W

N/A 55.75
CBS110-24PP 110V=17.21W

220V=17.29W

110V=135.67W

220V=133.82W

462.93
Green (power efficiency) Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*

*select models

Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature –4° to 158°F (–20° to 70°C)
Operating humidity 10% to 90%, relative, non-condensing
Storage humidity 5% to 90%, relative, non-condensing
Acoustic noise and Mean Time Between Failures (MTBF) Model name Fan (number) Acoustic noise MTBF at 25°C (hours)
CBS110-5T-D Fanless N/A 4,243,002
CBS110-8T-D Fanless N/A 2,066,844
CBS110-8PP-D Fanless N/A 465,437
CBS110-16T Fanless N/A 2,685,092
CBS110-16PP Fanless N/A 1,971,811
CBS110-24T Fanless N/A 524,296
CBS110-24PP Fanless N/A 340,703
Warranty Limited lifetime
Package contents
  • Cisco Business 110 Series switch
  • Power cord or adapter
  • Quick start guide
  • Mounting kit
Minimum requirements
  • Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
  • Cat5e or better Ethernet cable
  • Network interface card for each computer
