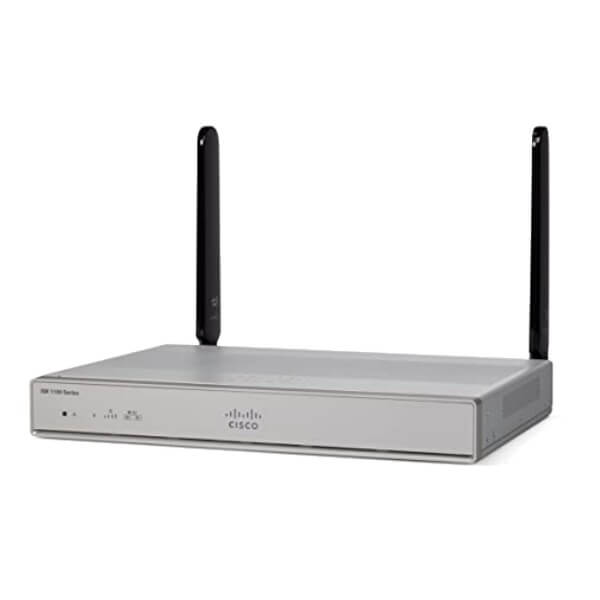

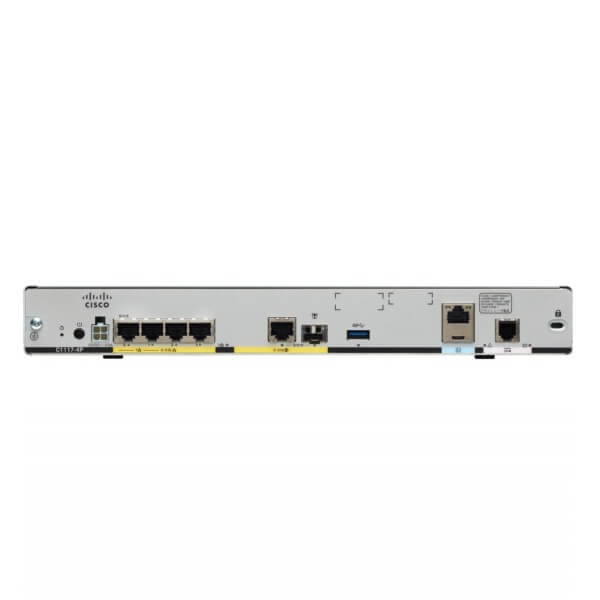

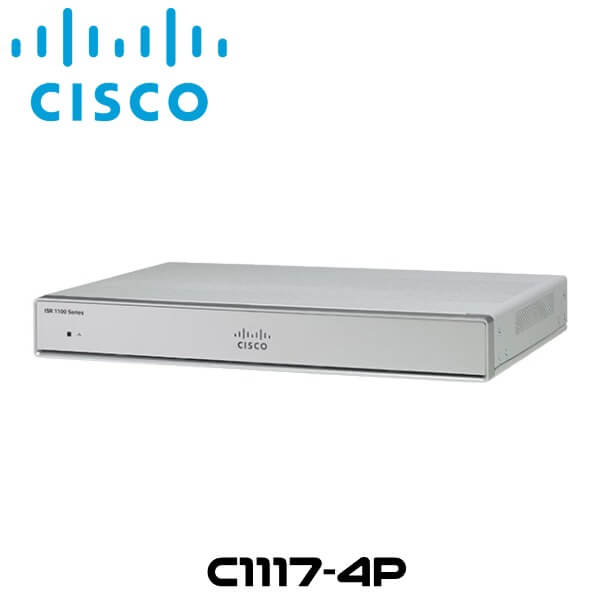

Cisco C1117-4P Integrated Service Router Ghana
Cisco C1117-4P Ghana Integrated Service Router delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco C1117-4P Ghana is ideal for Small and Medium enterprise branch offices. The Router comes with 4 Ports DSL Annex A/M and GE WAN Router, delivering 1 GE/SFP Combo WAN port and 4GE LAN ports. Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering. Manage and operate your WAN from a single dashboard. Provide highly secure, direct Internet access at the branch and optimize the user experience with Cisco SD-WAN.
Features
Next-generation connectivity
Get increased mobility and next-generation WAN and LAN options. Access Ethernet, DSL, LTE Advanced, and 802.11ac Wi-Fi. Cisco C1117-4P Ghana is ideal for use as customer premises equipment.
Intent-based networking
Manage and operate your WAN from a single dashboard. Provide highly secure, direct Internet access at the branch and optimize the user experience with Cisco SD-WAN.
Integrated enterprise-class security
Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering.
Easy management and deployment
Use one operating system for consistency and visibility across all branch offices and remote sites. The Cisco C1117-4P Ghana is the first fixed-configuration router with Cisco’s trusted IOS XE software.
Lightweight, compact size with low power consumption
Cisco C1117-4P Ghana can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors
High performance to run concurrent services
High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
High availability and business continuity
Redundant WAN connections for failover protection and load balancing. Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).
Consistent, high application performance levels
The Cisco C1117-4P Ghana router can run multiple services simultaneously with minimal performance degradation.
Risk mitigation with multilevel security
- Network perimeter security with integrated application inspection firewall.
- Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
- High-performance VPNs : DMVPN, FlexVPN, GET VPN.
- Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
- Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.
- Enforced security policy with OpenDNS.
- Security hardware acceleration.
Unified control of wired and wireless networks from a common console for streamlined operations
- Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
- Supports Mobility Express for WLAN-enabled routers
Remote configuration and management to keep local IT staff lean
- Supports separate console/auxiliary and USB ports.
- Can be configured to work with optional USB token.
- Supports TR-069.
Performance Throughput Service reliability
- Cisco C1117-4P Ghana can provide encrypted traffic performance greater than 350 Mbps.
- A distributed multicore architecture with the dedicated control plane and service plane.
- Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.
Lower WAN expenditures
- Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
- Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.
Pay as you grow : IPsec performance upgrade model
- Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.
IT consolidation, space savings, and improved total cost of ownership (TCO)
- Single converged branch platform integrates routing, switching, security, and performance management capabilities.
Business continuity and increased resiliency
- The Cisco C1117-4P Ghana supports Power over Ethernet (PoE) and PoE+ power to endpoints.
Specifications
| Memory (default and maximum) |
DRAM : 4 GB
Only C1111X-8P,C1121X-8P,C1126X,C1127X,C1161X models have 8GB DRAM |
Flash : 4 GB
Only C1111X-8P,C1121X8P,C1126X,C1127X,C1161X models have 8GB Flash |
| Console |
- Micro USB console (Type A).
- RJ45.
|
| Micro-USB port (reserved) |
- Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
|
| WLAN interfaces |
- Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and
- 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO).
- 802.11ac Wave 2 with 2×2 :2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.
- Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller.
|
| Maximum clients |
- Maximum number of associated wireless clients : 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image.
|
| Authentication and security |
- AES for Wi-Fi Protected Access 2 (WPA2).
- 802.1X, RADIUS AAA.
- 802.11r and 802.11i.
|
| 802.11ac |
- 2×2 SU-MIMO/MU-MIMO with two spatial streams.
- Maximal Ratio Combining (MRC).
- 20-, 40-, and 80-MHz channels.
- PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).
- Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Rx).
- 802.11 Dynamic Frequency Selection (DFS).
- Cyclic Shift Diversity (CSD) support.
|
| Software |
- Cisco IOS Software feature set : Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later.
- Cisco IOS Software feature set : C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later.
- Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later.
|
| DSL interfaces |
C1116 and C1117
- Dying gasp.
- ITU G.993.2 (VDSL2) and supported profiles : 8a, 8b, 8c, 8d, 12a, 12b, and 17a.
- VDSL2 Vectoring.
- ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+).
- ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+).
C1112 and C1113
- G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2.
- ITU G.993.2 (VDSL2) and supported profiles : 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
- ITU G.9700/9701/997.2 G.FAST and supported profiles : 106a, and 106b.
C1118
|
| Serial WAN interface and protocol |
- Support for both synchronous and bisync modes.
- Synchronous maximum speed of up to 8 Mbps.
- Support for bisync modes.
- Support for network clock synchronization.
- EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21.
|
| Inline PoE |
- Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3afcompliant PoE or 802.3at-compliant PoE+.
|
| External power supply |
Product power specifications :
C111X, C1120 and C1160 Models
- AC input voltage : Universal 100 to 240 VAC.
- Frequency : 50 to 60 Hz.
- Maximum output power : 66W (default).
- Output voltages : 12 VDC.
- Optional PoE and PoE+ :
- Single 150W power supply required for Cisco 1100-8P series router
- Single 115W power supply required for Cisco 1100-4P series router
- External output voltage : 48 VDC.
C1101-4PLTEPWX and C1109-4PLTE2PWX Models :
- AC input voltage : Universal 100 to 240 VAC.
- Frequency : 50 to 60 Hz.
- Maximum output power : 66W (default iTemp for C1109-4PLTE2PWX Models).
- Output voltages : 12 VDC.
C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models :
- AC input voltage : Universal 100 to 240 VAC.
- Frequency : 50 to 60 Hz.
- Maximum output power : 30W (default iTemp for Models).
- Output voltages : 12 VDC.
|
| USB 3.0 |
- USB devices supported :
- USB eTokens and USB flash memory
- Devices USB 3.0 supports to be connected externally.
|
| LEDs |
- WWAN (green/amber).
- SIM status (green/amber).
- Received signal strength indication (RSSI) bar (green).
- 3G/LTE service (green/amber).
- GPS (green/amber).
- Speed and link for Gigabit Ethernet WAN port (green).
- Speed and link for all Fast Ethernet LAN ports (green).
|
| Physical dimensions (H x W x D) |
C111X Models
- 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
- 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).
C1120 Models
- 1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm).
C1160 Models
- 1.65 x 10.8 x 7.85 in. (41.9 x 274 x 199 mm).
C1101-4PLTEP and C1101-4PLTEPWX Models
- 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).
C1101-4P Models
- 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models).
C1109-2PLTE Models
- 1.27 x 8.4 x 6.0 in. (32.3 x 213.4 x 152.4mm) (includes rubber feet models).
C1109-4PLTE2P and C1109-4PLTE2PWX Models (ship default with dual W-ANTM2050DRPSMA Wi-Fi antennae)
- 1.71 x 11.16 x 9.8 in. (43.4 x 283.5 x 248.9 mm) (includes rubber feet models).
Pluggable
- .85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm).
- USB Based CAT4 LTE Dongle 3.69 x 1.3 x 0.39 in. (93.73 x 32.99 x 10.00 mm).
|
| Weight |
C111X Models
- 1.94 lb to 4.59 lb (1.94kg to 2.08 kg).
- 4.50 lb (2.04 kg) with LTE Advanced.
- 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.
- 4.89 lb (2.22 kg) with LTE Advanced Plus Wave 2 802.11ac Dual Radio.
C1120 Models
- 3.43 lb (1.56Kg). base model with 4 ports.
- 3.7 lb (1.68Kg). with 4 ports and pluggable LTE.
- 4.62 lb (2.1Kg). with LTE and WiFi.
- 4.53 lb (2.06Kg). with LTE and VDSL.
- 3.7 lb (1.68Kg). with 4 ports and pluggable LTE.
C1160 Models
- 3.48 lb (1.58Kg). base model with 8 ports.
- 3.74 lb (1.7Kg). with 8 ports and pluggable LTE.
C1101-4PLTEPWX Models
C1101-4PLTEP Models
C1101-4P Models
C1109-2PLTE Models
C1109-4PLTE2PWX Models (Only C1109-4PLTE2PWX have external Wi-Fi antennae options)
C1109-4PLTE2P Models
Pluggable
- CAT18 LM960XX.45 lb (.21kg)
- CAT6 EM74XX.44 lb (.20kg).
- CAT4 WP76XX.40 lb (.18kg).
- USB Based CAT4 LTE Dongle WP76XX 0.068 lb (0.031kg)
|
| Standard safety certifications |
- UL 60950-1.and EN 60950-1.
- CAN/CSA C22.2 No. 60950-1.
- CB to IEC 60950-1, 2 nd edition with all group differences and national deviations.
|
| EMC emissions |
- EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.
|
| EMC immunity |
- EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300- 386.
|
| Radio immunity |
- EN301 489-1, EN 301 489-7, and EN301 489-24.
|
| Cellular radio |
- EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.
|
| Environmental operating range |
- Non-operating temperature : -4° to 149°F (-20° to 65°C).
- Non-operating humidity : 5% to 95% relative humidity (noncondensing).
- Non-operating altitude : 0 to 15,000 ft (0 to 4570 m).
- Operating temperature : 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4° to 131°F (-20° to 55°C).
- Operating humidity : 10% to 85% relative humidity (noncondensing).
- Operating altitude : 0 to 10,000 ft (0 to 3000 m at 30°C). Operating altitude : 0 to 10,000 ft (0 to 3000 m at 35°C for C1109- 2PLTE models). Operating altitude : 0 to 10,000 ft (0 to 3000 m at 40°C for C1109-4PLTE2P and C1109-4PLTE2PW models).
|
