Description

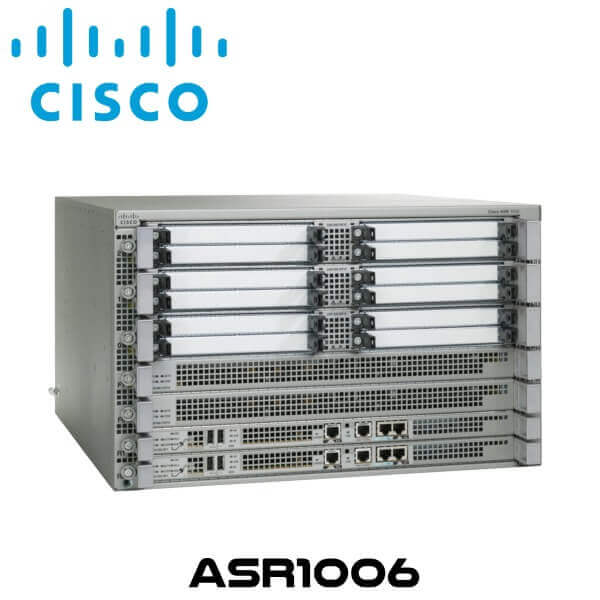

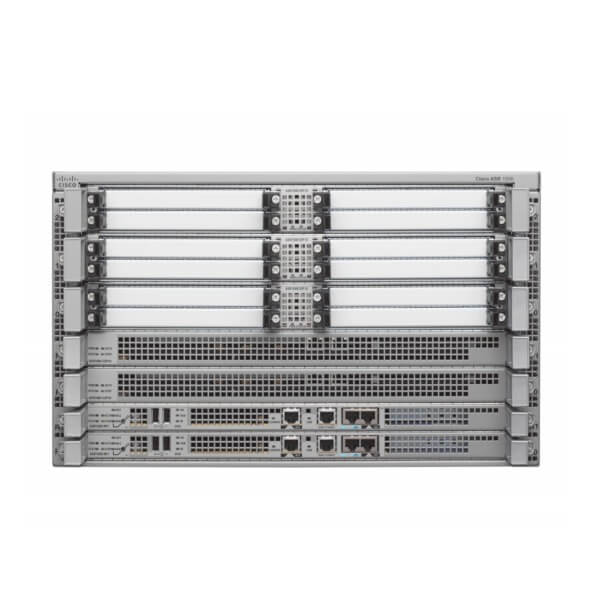

Cisco ASR1006 Aggregation Service Router Ghana
Cisco ASR1006 Ghana is Aggregation Service Router providing a Software Defined WAN platform that aggregates multiple WAN connections and network services including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The Cisco ASR1006 Ghana contain both hardware and software redundancy in an industry-leading high-availability design. The Cisco ASR1006 Ghana supports Cisco IOS XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR1006 Ghana Embedded Services Processors (ESPs), which are based on Cisco Flow Processor technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), Deep Packet Inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of Data-Center-Interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.
Cisco ASR1006 Ghana router sit at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider Points Of Presence (POPs). Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage increase. Cisco ASR1006 Ghana consolidate these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations. Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers. Also, Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers. Cisco ASR1006 Ghana is beneficial to existing Cisco 7200 Series Router (end-of-sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design.
Features
Cisco Software-Defined WAN
Cisco SD-WAN can be enabled on the Cisco ASR1006 Ghana platforms with IOS-XE. Cisco SD-WAN offers an entirely new way to manage and operate your WAN infrastructure. Cisco SD-WAN is a cloud delivered architecture that offers secure, flexible and rich services with the following key benefits :
- Better user experience : The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.
- Greater agility : Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months.
- Advanced threat protection : Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data.
SD-WAN Integrated Security
In order to efficiently connect to multiple cloud infrastructures many enterprise customers want to build an SD-WAN infrastructure that uses Direct Internet Access (DIA). This can save costs and reduce complexity by reducing WAN traffic backhauled to your data centers; however, connecting branches directly to the internet without the right security controls exposes your network to threats and vulnerabilities.
With Cisco SD-WAN and Cisco ASR1006 Ghana platform, you have integrated security built-right-in for branch DIA security with these integrated security capabilities :
- Application aware enterprise firewall
- DNS layer enforcement (Umbrella)
And with Cisco SD-WAN security integration you will reduce complexity by having a single management interface (vManage) for both the network and security.
Application visibility
Applications and users are more distributed than ever, and the internet has effectively become the new enterprise WAN. As organizations continue to embrace internet, cloud, and SaaS, network and IT teams are challenged to deliver consistent and reliable connectivity and application performance over networks and services they don’t own or directly control. The Cisco ASR1006 Ghana is also integrated with Cisco ThousandEyes internet and cloud intelligence. IT managers now have expanded visibility, including hop-by-hop analytics, into network underlay, proactive monitoring of SD-WAN overlay, and performance measurement of SaaS applications. This granular visibility ultimately lowers the Mean Time to Identification of Issues (MTTI) and accelerates resolution time.
Unified access security and multi-factor authentication
The Zero trust security model allows secure connections to all applications (whether on premises or in the cloud) based on the trustworthiness of users and devices.
Specifications
| Physical specifications |
|
| Default Memory |
|
| Shared port adapters | 12 SPA slots |
| Cisco ASR 1000 Series ESP | 2 ESP slots |
| Route Processor | 2 route-processor slots |
| Number of SIPs or Ethernet Line Cards Supported | 3 |
| Redundancy | Hardware : Yes |
| Built-in Gigabit Ethernet Ports | 0 |
| Built-in 10 Gigabit Ethernet Port | No |
| Network Interface Module | No |
| Integrated daughter card (IDC) | No |
| Airflow | Front-to-back |
| Processor Module Comparison and Specifications | |
| ESP support | Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), non crypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) |
| ESP bandwidth | 10 to 100 Gbps |
| ESP memory |
|
| SIPs and Ethernet Line Cards | Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Card; 2x10GE + 20X1GE (ASR1000-2T+20X1GE); and 6x10GE(ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes : On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps, Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8 Gbps, Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps, and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput
Note : No support on non crypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N) |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 2.1 except Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S
Note : Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S. |
| Rack-mounting | Yes : 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Power Requirements | |
| Redundant power supply | Yes : Dual power supplies by default; option of either AC or DC power supply
Note : A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC (85to 264V; 120 or 240V; 60or 50Hz nominal) Worldwide ranging DC (-40.5 to -72 : -48V nominal) |
| Power consumption |
or
|
| Airflow | Front-to-back |
| Environmental Specifications | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131°F (-5 to 55°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -38 to 150°F (-39 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating Altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Regulatory Compliance | |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards |
|
| Safety Standard |
|
