Description

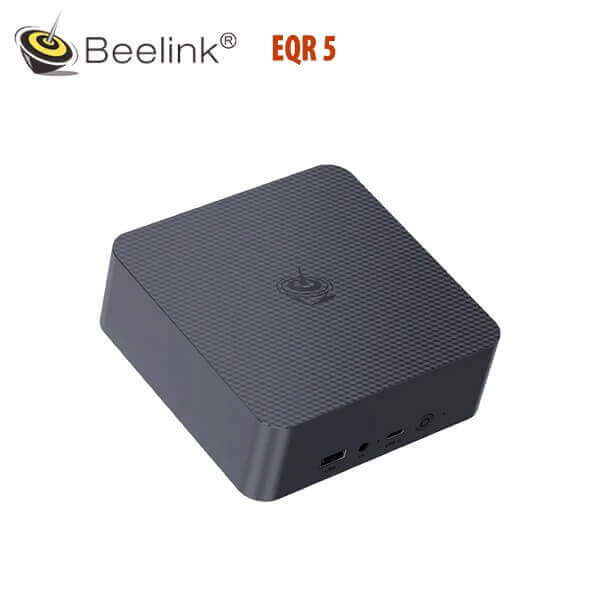

Beelink EQR5 Ghana
The Beelink EQR5 Ghana Mini PC is equipped with the AMD Ryzen 5 5650U processor, featuring 6 cores and 12 threads, utilizing TSMC’s cutting-edge 7nm FinFET technology. It boasts a 16MB L3 Smart Cache and reaches a maximum clock speed of 4.2GHz, delivering exceptional performance, minimal latency, and seamless multitasking. This compact device comes with 8GB of DDR4 RAM running at 3200MHz, expandable up to 64GB via dual 32GB modules, offering a 30% speed improvement over DDR3. It also includes a 500GB M.2 2280 NVMe PCIe 3.0×4 SSD for fast storage, with dual M.2 2280 PCIe 3.0×4 slots allowing expansion up to 4TB, ensuring ample space and enhanced performance. The advanced cooling system integrates a heat pipe, a quiet fan, and heat fins to manage thermals efficiently, preventing CPU throttling and maintaining optimal performance for both RAM and SSD.
The Beelink EQR5 Mini PC provides extensive connectivity options, including 3 USB 3.2 Gen2 ports (10Gbps), a USB 2.0 port (480Mbps), a Type-C port (10Gbps data), 2 HDMI ports (supporting 4K @ 60Hz), an AC power jack, 2 RJ45 Ethernet ports (1Gbps via RTL8111H), and a 3.5mm audio jack (headphone/mic combo with Realtek ALC897). It also features a power LED, a power button, and a reset button for ease of use. The integrated 85W power supply minimizes cable clutter, promoting a neat workspace. The dual HDMI ports support dual-monitor setups, boosting productivity. Powered by AMD Radeon Graphics with 7 cores clocked at 1800MHz, the Mini PC ensures smooth 4K @ 60Hz video playback, exceptional 3D rendering, and visually stunning modeling. It supports gaming at up to 60FPS for popular titles such as CS:GO, Dota 2, and League of Legends. Compact yet versatile, this Mini PC is ideal for various applications, including home entertainment, office tasks, casual gaming, digital security, media centers, digital signage, and conference rooms. The Beelink EQR5 meets FCC, ROHS, and CE certifications, guaranteeing high standards of quality and dependable performance.
Features:
- 32 db Near-Silent operations

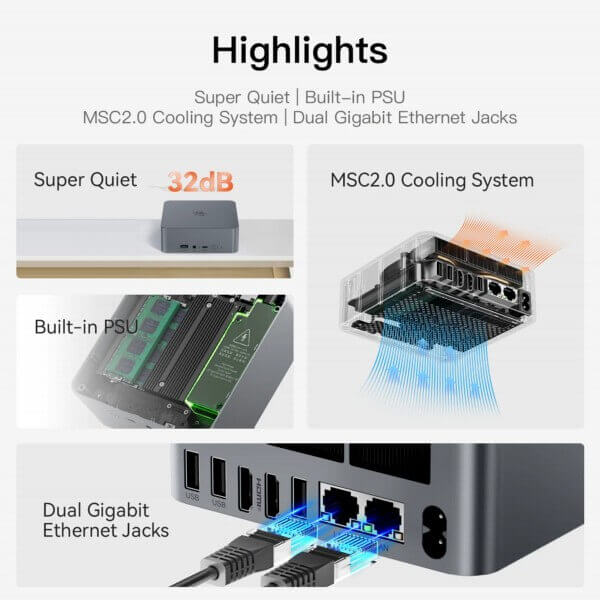

- MSC 2.0 Cooling-System
- Dual Display & AMD Radeon Graphics
- High-capacity Storage & Cooling
- Dual Display & AMD Radeon Graphics
Specifications:
| Brand | Beelink |
| Manufacturer | amd |
| Series | Beelink EQR5 |
| Colour | Black |
| Form Factor | Small Form Factor |
| Processor Brand | AMD |
| Processor Type | AMD Ryzen 7 |
| Processor Speed | 4.2 GHz |
| Processor Count | 8 |
| RAM Size | 32 GB |
| Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| Maximum Memory Supported | 64 GB |
| Hard Drive Size | 500 GB |
| Hard Disk Description | HDD, SSD |
| Hard Drive Interface | Serial ATA |
| Graphics Coprocessor | AMD Radeon Graphics |
| Graphics Chipset Brand | AMD |
| Graphics Card Description | Integrated |
| Graphics RAM Type | DDR4 SDRAM |
| Graphics Card Interface | Integrated |
| Connectivity Type | Bluetooth, Wi-Fi |
| Wireless Type | Bluetooth, 5 GHz Radio Frequency, 2.4 GHz Radio Frequency |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of HDMI Ports | 2 |
| Power Source | Input: 100-120V AC, 50/60Hz |
