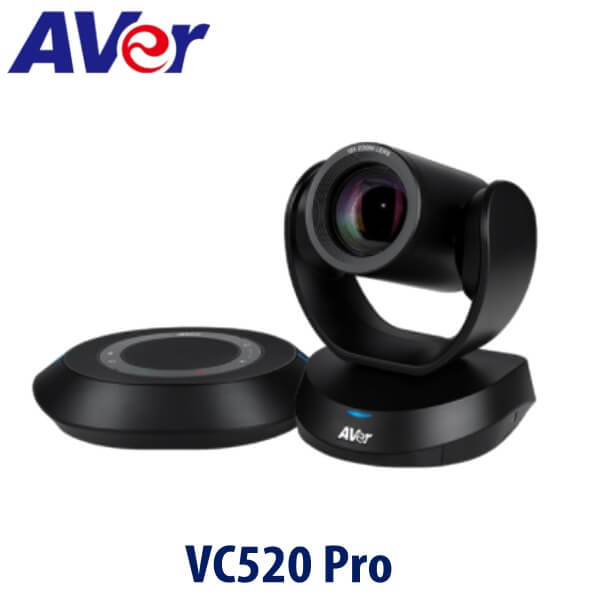

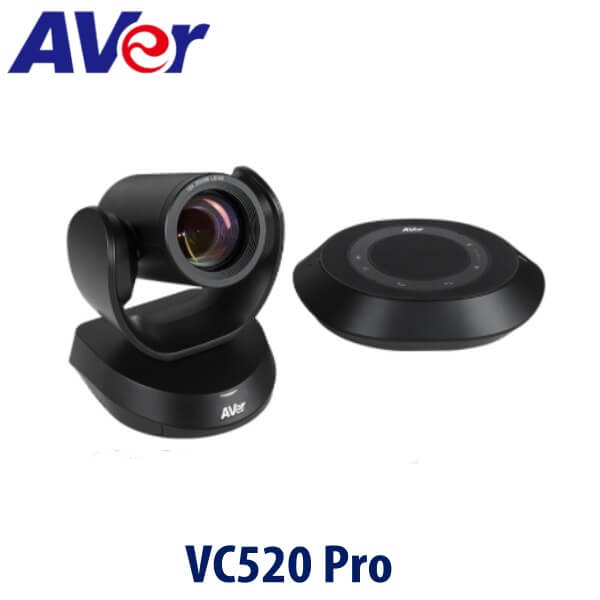

Aver VC520 Pro Camera Ghana

The Aver VC520 Pro Camera is Professional conferencing system for mid-to-large rooms. Equipped with 1080p HD quality, Sony True WDR, and IP-based management features. The high performing camera packs a 12X optical zoom and daisy-chain speakerphone that deliver a lifelike audiovisual experience. Also equipped is a full 1080p high definition video at 30 frames per second and comes with 10 camera presets for one touch customization. Also enjoy true full duplex audio with superior echo cancellation and noise suppression technology.

The Aver VC520 Pro Camera is compatible with all your favorite video conferencing apps like Zoom, Microsoft Teams, Skype, and more. It quickly connects to any Mac/Windows desktop or laptop via a single USB cable. Ethernet network connectivity enables you to manage and control the camera via a web browser or centralized management software. You can also stream live video content to cloud-based platforms like YouTube and Facebook Live or to your premise streaming delivery network. The included IR remote control allows you to adjust pan, tilt, and zoom positions, as well as tweak other settings, at the press of a button. Up to 10 position presets can be stored and recalled via the remote control.

Key Features

• Full HD 1080p output resolution
• Up to 10 camera presets. 18x (12x optical) total zoom
• 10W speaker, max output 95dB SPL
• ±130° pan; +90°/-25° tilt; 82° (diagonal) Field of view
• Full duplex microphone array up to 2 daisy-chain speakerphone
• 3 Uni-Directional microphones supporting 360° pick up in 9m diameter range

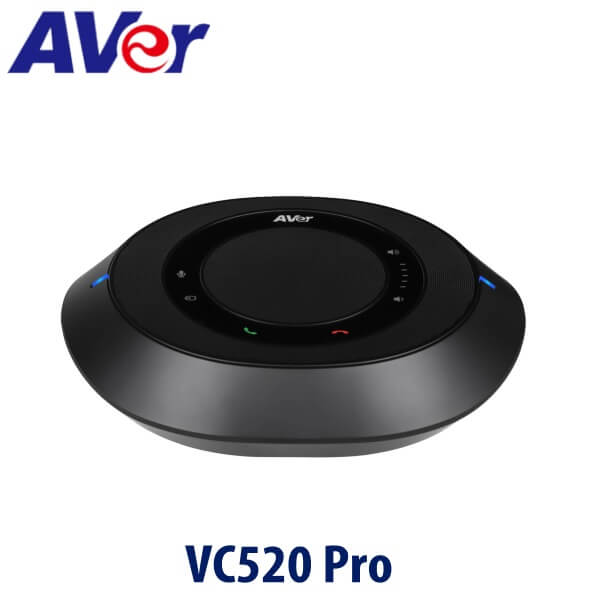

Daisy-chain speakerphone

 Aver VC520 Pro Camera packs full-duplex speakerphone that effectively capture audio throughout the entire room. Experience lifelike audio in various sizes of meeting rooms with the VC520 Pro. The speakerphone’s pickup range is up to 15 ft., or you can daisy-chain two additional speakerphones and reach up to 45 ft. Touch controls make it easy to adjust or mute the volume, and echo cancellation ensures a steady audio experience. You can also connect extra microphones for ultra-clear voice pickup.

SmartFrame Technology

Aver VC520 Pro Camera automatically frame people based on facial recognition and optimize color and light for human faces. Improve productivity by starting meetings instantly. The VC520 Pro processes facial recognition to capture everyone on-screen in seconds and automatically re-frames whenever someone walks in or out of the room.

Professional Clarity with 12X Optical Zoom

Aver VC520 Pro Camera boasts of 12X true optical zoom, 82degree wide angle camera, delivers rapid and smooth pan, tilt and zoom. Experience superior auto-focus optics delivering seamless pan, tilt, and zoom performance with VC520 Pro and show every detail precisely and smoothly to enhance communication. The VC520 Pro is embedded with a 12X true optical zoom and multi-coated auto-focus optics to present complex product details in full HD 1080p quality.

Hold Meetings Anywhere with True WDR

The Aver VC520 Pro Camera has embedded Sony sensor provides True WDR up to 120dB, controlling the exposure and light values of pixels in any lighting. Maintain constant clarity in high-contrast backlight environments.

 IP based management and streaming

The Aver VC520 Pro Camera features advanced centralized management through the Chrome browser. Remotely control the camera and share on Facebook or YouTube with H.264 and AAC-LC RTSP/RTMP streaming in 1080p at 60fps via USB 3.1.   Ethernet network connectivity to manage and control the VC520 PRO via a web browser or centralized management software.

Up to 10 Camera Presets

The Aver VC520 Pro Camera allows you to customize meetings by storing up to 10 PTZ camera presets via RS232 VISCA or UVC (USB video class). The presets are easily accessed with one touch of the IR remote, saving you time and providing flexibility to swiftly move the focus of the camera to predetermined locations in your conference room.

Plug and Play

Aver VC520 Pro Camera is simple to install. Just connect the provided USB 3.1 cable to your computer or laptop and the VC520Pro to start camera, two advanced array microphones, and a full-duplex speakerphone. A TV HDMI connection.

Aver VC520 Pro Specifications

• Camera

• • Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Field of view (DFOV): 82°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, Flip, AE, white balance: aut o, manual override via PTZApp
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot

• Motorized Pan & Tilt Movement

• • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (through remote control)
  • Fast and quiet pan & tilt movement

• Video Format

• • YUV, MJPEG, H.264
  • Network video compression format: H.264
  • Network protocols: RTSP, RTMP

• Speakerphone

• • Full duplex microphone array with echo cancellation
  • Advanced noise suppression
  • Dual-omnidirectional microphone array
  • 3.5 mm phone-in jack
  • 3.5 mm line out
  • Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
  • Microphone frequency response: 120Hz–16kHz
  • Microphone sensitivity: -34± 2 dBV @1KHz, 94dBSPL
  • Microphone distortion: < 1% from 150Hz
  • Microphone support range: Diameter 6M
  • Touch controls for volume down/up, mute, phone input, call, and hang-up
  • Bridge phone-in and USB into one call
  • Security: Kensington slot

• Audio Format

• • AAC-LC
  • Network protocol: RTSP, RTMP

• LAN

• • 10/100/1000 Mbps

• Connectivity

• • 12V/5A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
  • USB 3.1 Type-B connector
  • IP (RJ45)

• USB

• • 3.1 Gen 1 Type-B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1
  • UAC (USB audio class) 1.0

• Control

• • IR remote control
  • VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug-and-play
  • WebUI: Browser IP access via Chrome (does not support Internet Explorer)
  • PTZApp

• Mount

• • Camera wall-mount bracket included
  • Optional foldable TV mount

• System Requirements

• • Windows® 7/10
  • Mac OS X 10.13 or higher
  • Google Chromebook version 76.0.3809.102 or later
  • Android 6 or higher

• Hardware Specs

• • 3.2 GHz Intel® Core™ i5-4460 Processor or higher
  • 4 GB RAM or more
  • USB 3.1 port, backward compatible with USB 2.0 port

• Web page browser requirement

• • Chrome: version 76.x or above
  • Firefox: version 69 or above
  • IE: Not support

• Power Supply

• • AC 100V ~ 240V, 50/60 Hz
  • Consumption: 12V, 5A

• Free Applications for Meeting Collaboration (Windows® and Mac)

EZManager: Camera Central Management software

• • Remotely group FW/SW upgrades, control the camera, and configure settings

PTZApp

• • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

EZLive

• • Real-time streaming / annotating / snapshots / video recording

• Environmental Data

• • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 20% ~ 80%

• Dimensions

• • Package dimensions: 259 x 259 x 349 mm
  • Package weight: 5.4 kg
  • Camera: 142.7 x 153 x 182 mm/1.45 kg
  • Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Package Contents

• • VC520 Pro Camera
  • VC520 Pro Speakerphone
  • Remote control
  • Power adapter
  • Power cord (6 ft/1.8 m)
  • USB 3.1 Type-B to Type-A cable (10 ft/3 m)
  • CATE6 speakerphone cable (33 ft/10 m)
  • 3.5 mm aux cable (3 ft/0.9 m)
  • Quick-start guide
  • Warranty card
  • Wall-mount bracket
  • ¼” tripod screw

• Optional Accessories

• • Mini DIN9 to RS232 adapter
  • Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
  • Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
  • Foldable TV mount

• Warranty*

• • Camera / Speakerphone: 3+2 years (not available in US, JP, and certainother areas)
  • Accessories: 1 year

* Please register online to receive a free 2-year warranty extension.
For detailed warranty information, please contact an AVer representative.

• Compatible Applications

• • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
